Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3700-60-RCCMC 5MH 2A 2LN SMD |
885 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 5 mH @ 1 kHz | 2A | 70mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-30-RCCMC 750UH 5.5A 2LN SMD |
471 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 1 kHz | 5.5A | 12mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-50-RCCMC 2MH 3.5A 2LN SMD |
3,190 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 2 mH @ 1 kHz | 3.5A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
7351-V-RCCMC 1MH 1.2A 2LN TH |
444 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 1.2A | 220mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7356-V-RCCMC 22MH 270MA 2LN TH |
169 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 1 kHz | 270mA | 4Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7121-RCCMC 42.5MH 2A 2LN TH |
191 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | - | 2 | - | 42.5 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

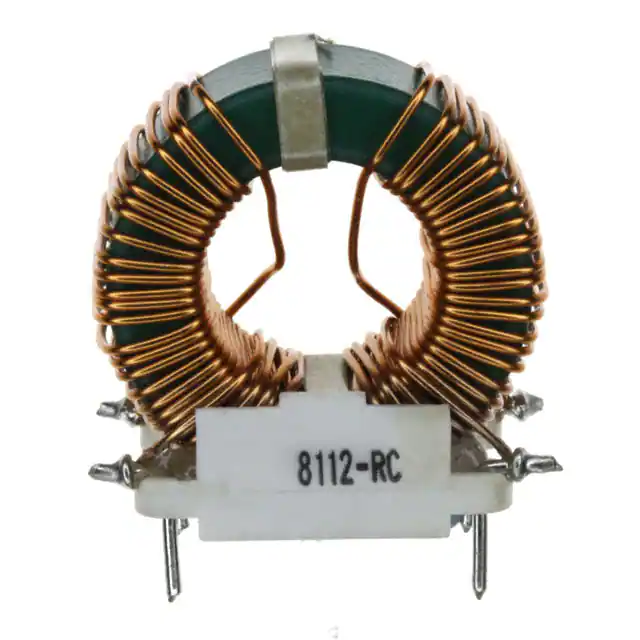

8112-RCCMC 8MH 5.6A 2LN TH |
2,211 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SRF2012-261YACMC 300MA 2LN 260 OHM SMD |
8,996 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012A-670YACMC 400MA 2LN 67OHM SMD AEC-Q200 |
7,283 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-371YACMC 300MA 2LN 370 OHM SMD |
4,408 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 370 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
