Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8116-RCCMC 50MH 2.3A 2LN TH |
2,694 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 1 kHz | 2.3A | 450mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SRF3225TAC-110YCMC 11UH 300MA 2LN 550OHM SMD |
188 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 550 Ohms @ 10 MHz | 11 µH @ 100 kHz | 300mA | 400mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SRF4530AG-201YCMC 2LN SMD AEC-Q200 |
229 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | - | - | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

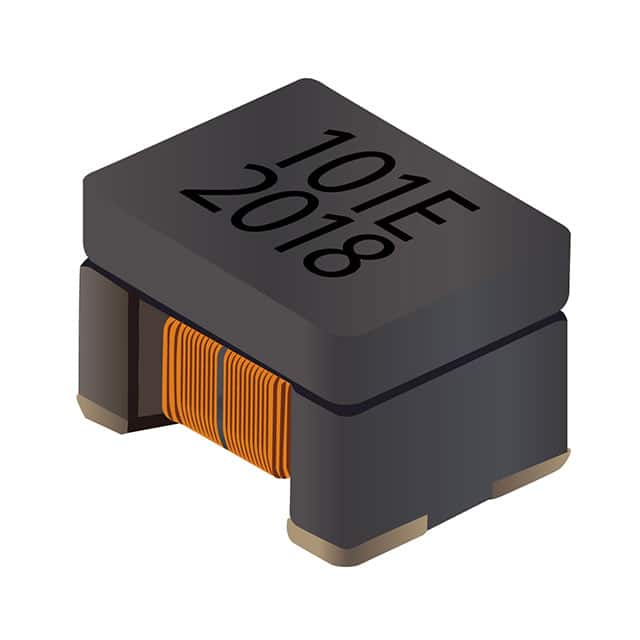

SRF3225AB-101YCMC 100UH 100MA 2LN 5.5KOHM SMD |
610 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 5.5 kOhms @ 10 MHz | 100 µH @ 100 kHz | 100mA | 3.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
7106-RCCMC 510UH 2A 2LN TH |
2,429 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | - | 2 | - | 510 µH @ 1 kHz | 2A | 30mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SRF2012A-801YCMC 300MA 2LN 800OHM SMD AECQ200 |
3,821 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 800 Ohms @ 100 MHz | - | 300mA | 880mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
SRF3225TP-501YIND CMC 2.2UH 2.0A |
1,711 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | 2.2 µH @ 100 kHz | 2A | 100mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF3216A-222YCMC 200MA 2LN 2.2 KOHM AEC-Q200 |
3,923 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF3225TAC-510YCMC 51UH 200MA 2LN 2.6KOHM SMD |
1,485 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 2.6 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 700mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SRF3225TAFD-101YCMC 100UH 150MA 2LN 5.1KOHM SMD |
3,814 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
