Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLP11SN900HL2L+00-03CMC 150MA 2LN 90 OHM SMD |
4,332 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 1.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11RB150UL2B+00-01CMC 100MA 2LN 15 OHM SMD |
1,525 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 15 Ohms @ 100 MHz | - | 100mA | 1Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11SA900HL2B+00-03CMC 150MA 2LN 90 OHM SMD |
1,631 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 1.75Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11TB800UL2L+00-01CMC 100MA 2LN 80 OHM SMD |
2,582 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 100mA | 1.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11SN900HL2B+00-53CMC 150MA 2LN 90 OHM SMD |
3,016 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 1.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLM11SN900HY2B+00-01CMC 100MA 2LN 90 OHM SMD |
2,335 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 1.38Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLM11SN900HY2B+00-53CMC 100MA 2LN 90 OHM SMD |
1,627 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 1.38Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
VCMBE8104-RCCMC 10MH 2.4A 2LN TH |
4,133 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SCM0905-652-RCCMC 6.5MH 400MA 2LN 18.4KOHM SMD |
2,782 | - |
|
Datasheet | 4-SMD, J-Lead | - | 2 | 18.4 kOhms @ 10 kHz | 6.5 mH @ 10 kHz | 400mA | 950mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCM25-601T-RCCMC 1A 2LN 600 OHM SMD |
4,510 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 200mOhm | 60V | - | -40°C ~ 125°C | - | - | - | - | - |
|
VSLFUU98-102CMC 700MA 2LN SMD |
1,208 | - |
|
Datasheet | Vertical, 4 Gull Wing | - | 2 | - | - | 700mA | 350mOhm (Typ) | - | 264V | - | - | - | - | - | - |
|
ACP20-102CMC 1.5A 2LN 1K OHM SMD |
3,509 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 100mOhm | 60V | - | -40°C ~ 85°C | - | - | - | - | - |
|

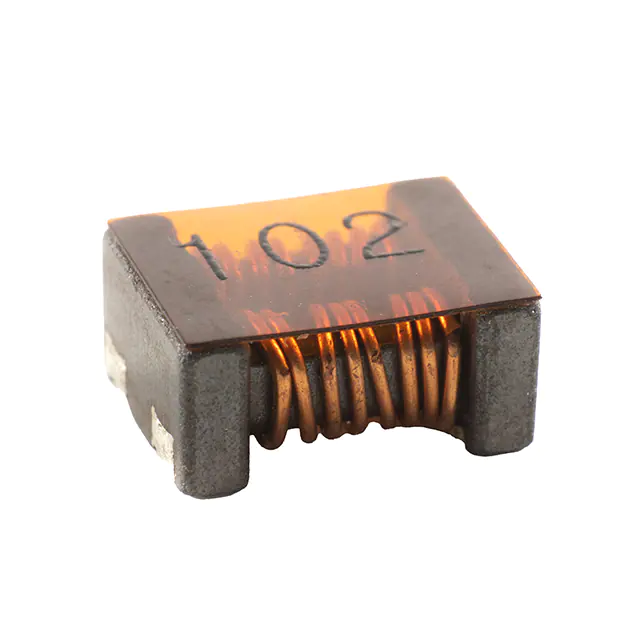

PCMF9070S-102CMC 4A 2LN 1K OHM SMD |
4,923 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 4A | 13mOhm | 125V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
B78512A7854A003SMD RING CORE CHOKES |
1,086 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78512A8287A003SMD RING CORE CHOKES |
1,664 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78512A8213A003SMD RING CORE CHOKES |
4,063 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78512A8286A003SMD RING CORE CHOKES |
2,322 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78520A8471A003SMD RING CORE CHOKES |
2,423 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78520A9343A003SMD RING CORE CHOKES |
4,150 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCM25-102T-RCCMC 1.2A 2LN 1K OHM SMD |
4,480 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 1.2A | 300mOhm | 60V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
