Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSD1278H-473MEDFIXED INDUCTOR 47UH SMD |
1,069 | - |
|
Datasheet | Nonstandard | - | 2 | - | 47 µH @ 100 kHz | 2.94A | 127mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-652MEDFIXED INDUCTOR 6.5UH SMD |
1,061 | - |
|
Datasheet | Nonstandard | - | 2 | - | 6.5 µH @ 100 kHz | 6.74A | 25mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-104KEDFIXED INDUCTOR 100UH SMD |
1,041 | - |
|
Datasheet | Nonstandard | - | 2 | - | 100 µH @ 100 kHz | 2.25A | 230mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-103MEDFIXED INDUCTOR 10UH SMD |
998 | - |
|
Datasheet | Nonstandard | - | 2 | - | 10 µH @ 100 kHz | 5.56A | 36mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-563MEDFIXED INDUCTOR 56UH SMD |
990 | - |
|
Datasheet | Nonstandard | - | 2 | - | 56 µH @ 100 kHz | 2.75A | 140mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-333MEDFIXED INDUCTOR 33UH SMD |
756 | - |
|
Datasheet | Nonstandard | - | 2 | - | 33 µH @ 100 kHz | 3.66A | 86mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

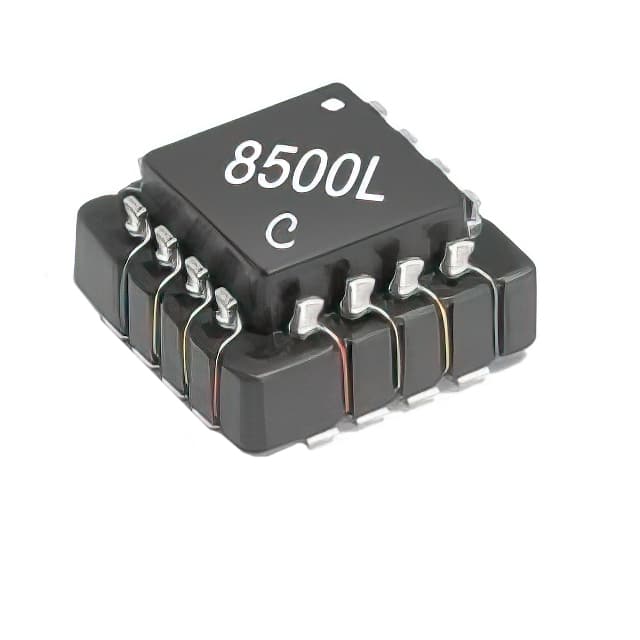

CDF8500LDCMC 5UH 500MA 8LN 520 OHM SMD |
2,866 | - |
|
Datasheet | 16-BQFN | Signal Line | 8 | 520 Ohms @ 42 MHz | 5 µH @ 1 MHz | 500mA | 180mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
CDF8000LDCMC 5UH 100MA 8LN 630 OHM SMD |
1,415 | - |
|
Datasheet | 16-BQFN | Signal Line | 8 | 630 Ohms @ 37 MHz | 5 µH @ 1 MHz | 100mA | 250mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
CDF10000LDCMC 5UH 100MA 10LN 520 OHM SMD |
4,221 | - |
|
Datasheet | 20-BQFN | Signal Line | 10 | 520 Ohms @ 43 MHz | 5 µH @ 1 MHz | 100mA | 250mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
CR7915-ALDCMC 2.6A 2LN 3.1 OHM SMD |
5,138 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 3.1 kOhms @ 4.9 MHz | 1.2 mH @ 10 kHz | 2.6A | 49.5mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
