Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

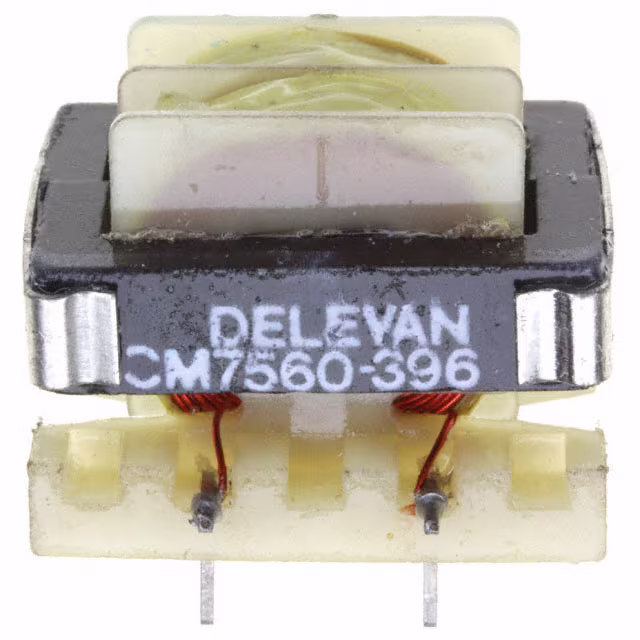

CM7560-396CMC 39MH 440MA 2LN TH |
4,462 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 39 mH @ 1 kHz | 440mA | 2.6Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

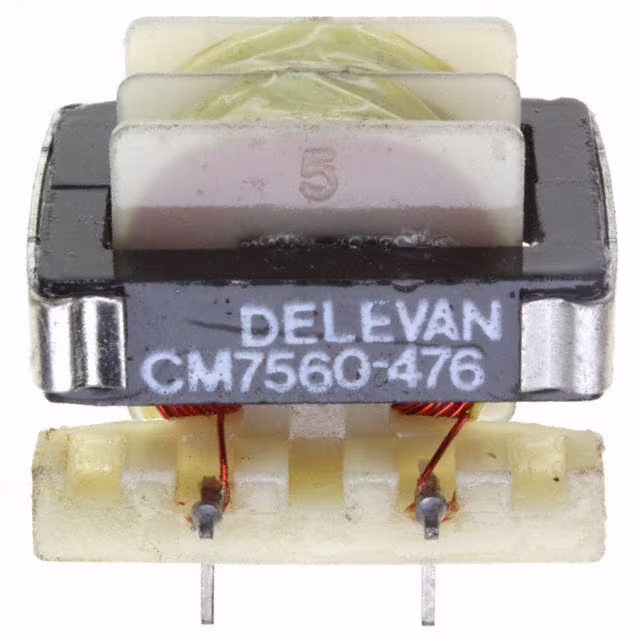

CM7560-476CMC 47MH 440MA 2LN TH |
4,843 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 1 kHz | 440mA | 3Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

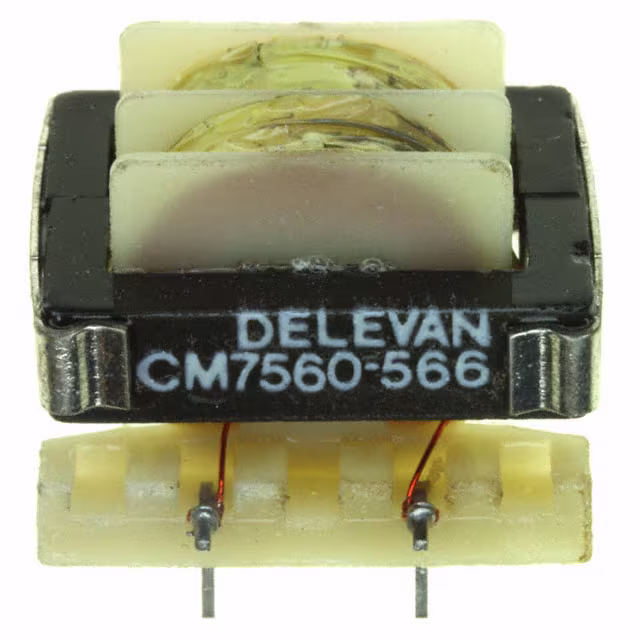

CM7560-566CMC 56MH 350MA 2LN TH |
1,827 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 56 mH @ 1 kHz | 350mA | 4Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

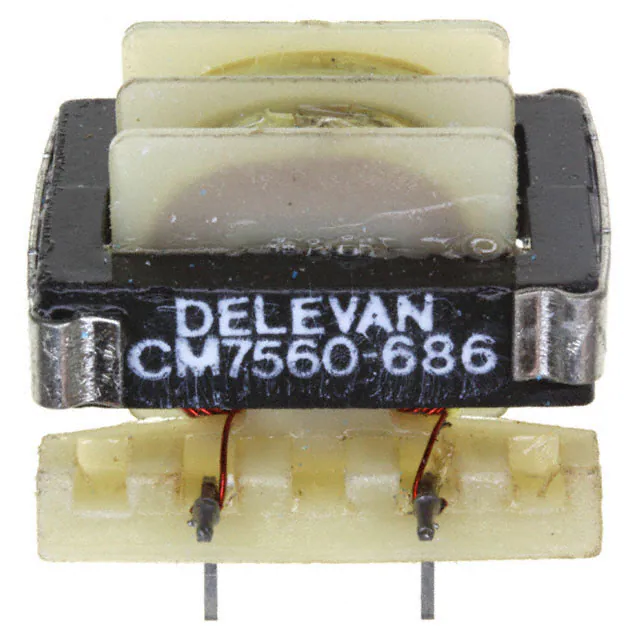

CM7560-686CMC 68MH 270MA 2LN TH |
1,610 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 1 kHz | 270mA | 5Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

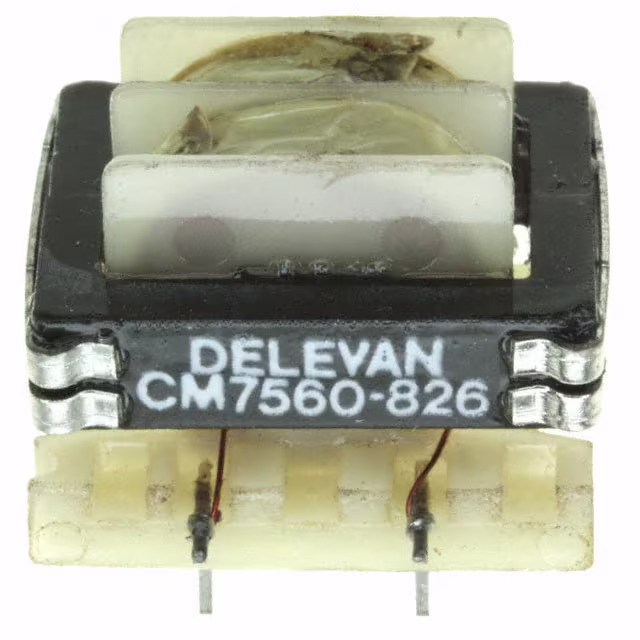

CM7560-826CMC 82MH 270MA 2LN TH |
1,568 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 82 mH @ 1 kHz | 270mA | 5.5Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

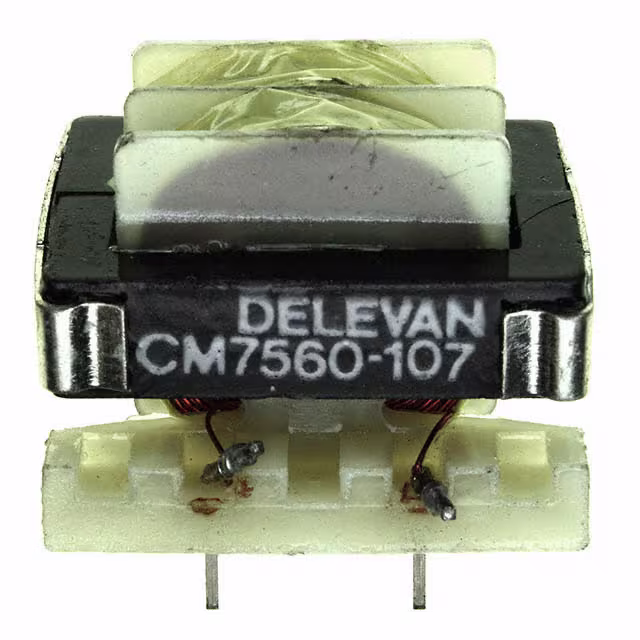

CM7560-107CMC 100MH 270MA 2LN TH |
2,009 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 100 mH @ 1 kHz | 270mA | 6.4Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

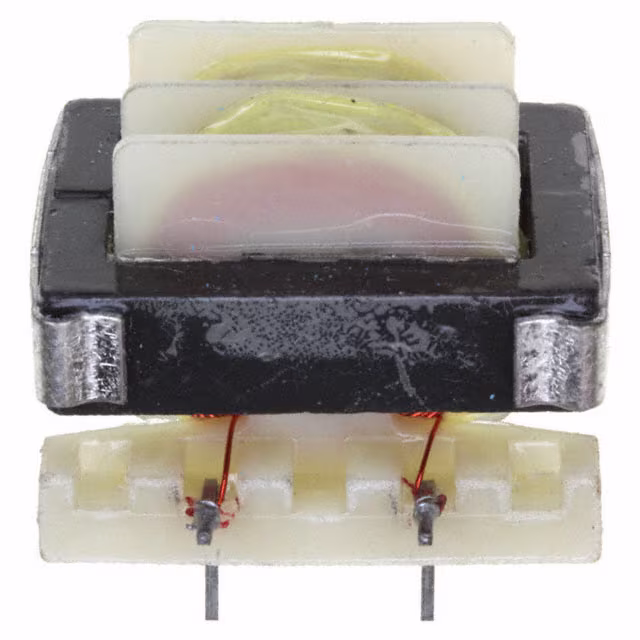

CM7560-127CMC 120MH 220MA 2LN TH |
4,345 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 120 mH @ 1 kHz | 220mA | 7.8Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

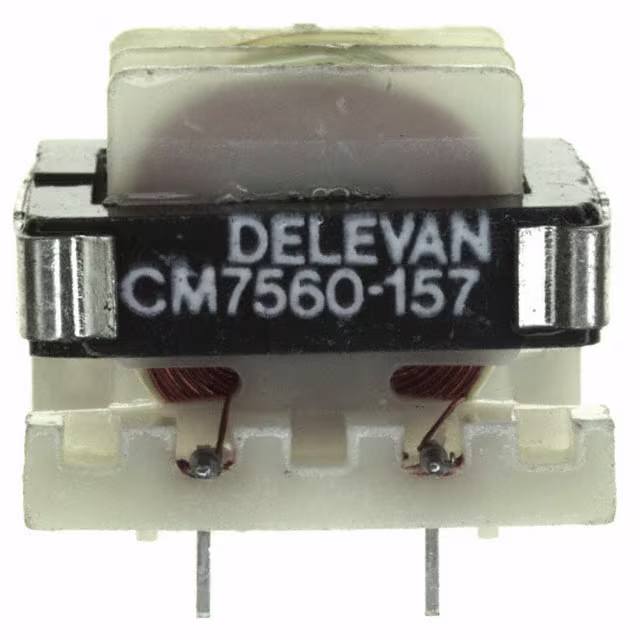

CM7560-157CMC 150MH 220MA 2LN TH |
2,695 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 150 mH @ 1 kHz | 220mA | 9Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM7560R-106CMC 10MH 700MA 2LN TH |
3,442 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 700mA | 800mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-107CMC 100MH 270MA 2LN TH |
4,125 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 100 mH @ 1 kHz | 270mA | 6.4Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
