Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS2-7-RCMC 270UH 1.6A 2LN SMD |
1,560 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 270 µH @ 100 kHz | 1.6A | 60mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

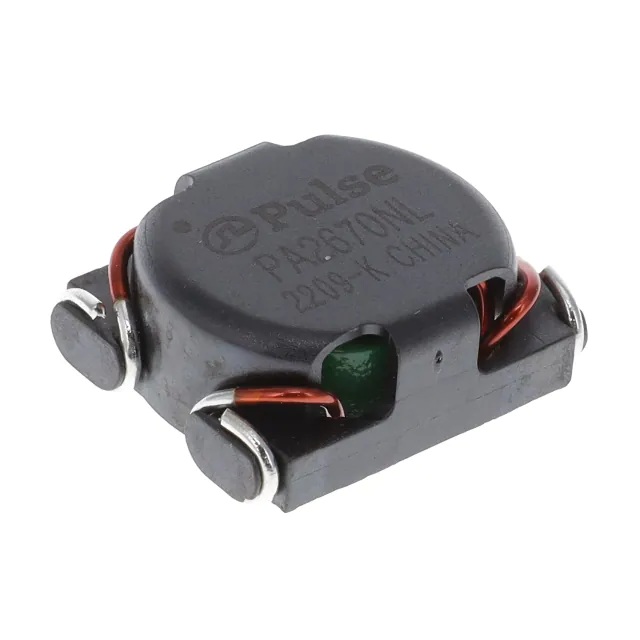

PA2670NLCMC 16A 2LN SMD |
1,304 | - |
|
Datasheet | Vertical, 4 PC Pad | - | 2 | - | - | 16A | 4.25mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
DKFP-6248-D504CMC 500MA 2LN TH |
624 | - |
|
Datasheet | Nonstandard | - | 2 | - | - | 500mA | 500mOhm | - | 250V | -40°C ~ 125°C | - | UR | - | - | - |
|
DKFP-6248-0102CMC 900MA 2LN TH |
164 | - |
|
Datasheet | Nonstandard | - | 2 | - | - | 900mA | 240mOhm | - | 250V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
CMS2-3-RCMC 57UH 3.6A 2LN SMD |
1,607 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 57 µH @ 100 kHz | 3.6A | 12mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
EH28-1.5-02-20MCMC 20MH 1.5A 2LN TH |
358 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 400 Hz | 1.5A | 282mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SC-01-20GSCMC 2MH 1A 2LN TH |
505 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 1A | 180mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

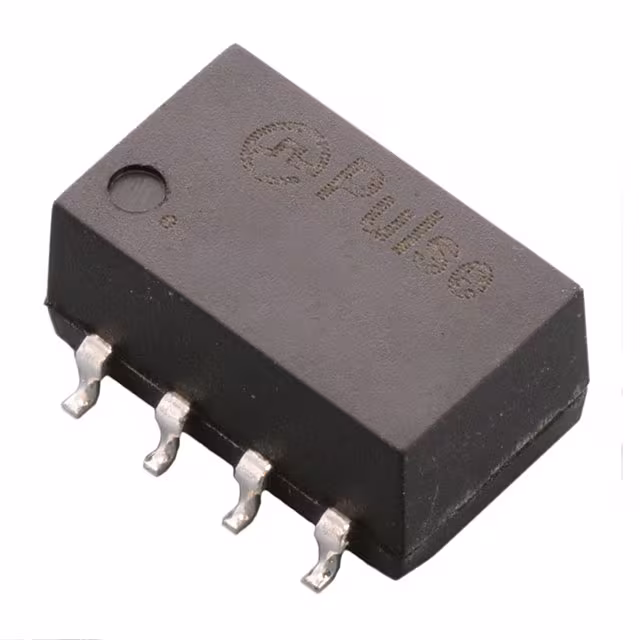

T8003NLTCMC 4LN SMD |
4,497 | - |
|
Datasheet | Vertical, 8 Gull Wing | Signal Line | 4 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
PE-65857NLCMC 4LN SMD |
607 | - |
|
Datasheet | Vertical, 8 Gull Wing | Signal Line | 4 | - | - | - | 220mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
744212820CMC 82UH 300MA 2LN 440 OHM SMD |
1,711 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power, Signal Line | 2 | 440 Ohms @ 180 MHz | 82 µH @ 100 kHz | 300mA | 200mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
744212101CMC 100UH 300MA 2LN 500 OHM SMD |
886 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power, Signal Line | 2 | 500 Ohms @ 60 MHz | 100 µH @ 100 kHz | 300mA | 220mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SC-06-10JSCMC 1MH 6A 2LN TH |
862 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 6A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
744822233CMC 3.3MH 1.5A 2LN TH |
134 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 120mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744822120CMC 20MH 500MA 2LN TH |
115 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 500mA | 540mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-10-D020HCMC 20UH 10A 2LN TH |
352 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | 10A | 6.5mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
744290473CMC 47MH 250MA 2LN SMD |
574 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 47 mH @ 10 kHz | 250mA | 4Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744290103CMC 10MH 500MA 2LN SMD |
505 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 10 mH @ 10 kHz | 500mA | 920mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-07-100CMC 650UH 7A 2LN TH |
235 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 650 µH @ 100 kHz | 7A | 14mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B2013FNLTCMC 9MH 100MA 2LN SMD |
1,000 | - |
|
Datasheet | Vertical, 8 Gull Wing | Signal Line | 2 | - | 9 mH @ 100 kHz | 100mA | 1Ohm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
B82721S0562A030CMC 768UH 5.6A 2LN SMD |
172 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 768 µH @ 100 kHz | 5.6A | 18mOhm | 80V | 48V | - | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
