Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

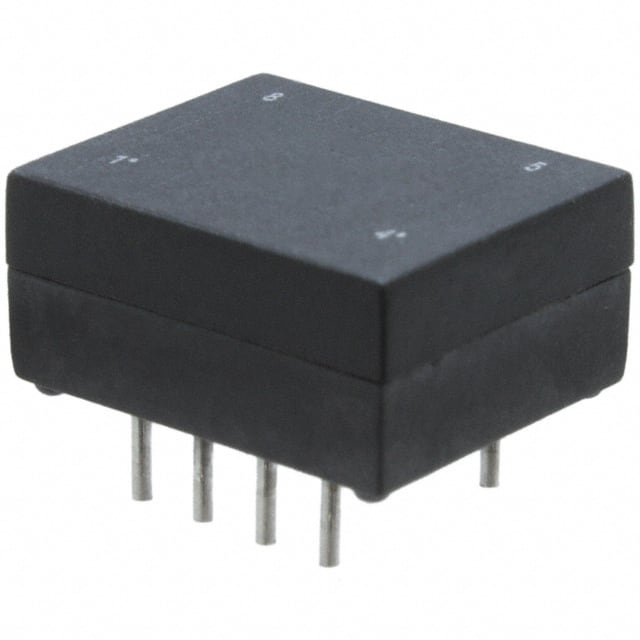

PE-65554NLCMC 4LN TH |
556 | - |
|
Datasheet | Horizontal, 8 PC Pin | Signal Line | 4 | - | - | - | 300mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
SC-09-E075JHCMC 750UH 9A 2LN TH |
331 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 750 µH @ 10 kHz | 9A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS35H-20170CMC 17MH 2A 2LN TH |
3,595 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 17 mH @ 1 kHz | 2A | 280mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS30V-R300071CMC 7.1MH 3A 2LN TH |
3,943 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.1 mH @ 1 kHz | 3A | 120mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82791H2202N010CMC 2A 2LN TH |
786 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | - | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
HM6902NLCMC 2LN SMD AEC-Q200 |
260 | - |
|
Datasheet | Vertical, 4 PC Pad | - | 2 | - | - | - | - | - | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
ECMT1V2429S-5R0-RCMC 5MH 1.4A 2LN TH |
557 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1.4A | 300mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SS30V-R200132CMC 13.2MH 2A 2LN TH |
195 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 13.2 mH @ 1 kHz | 2A | 210mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-01-10GSCMC 1MH 1A 2LN TH |
615 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 1A | 130mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
750311897CMC 24MH 240MA 2LN TH |
139 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 24 mH @ 10 kHz | 240mA | 6.3Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CAV-0.5-27CMC 27MH 500MA 2LN TH |
219 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.179Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PA3747.405NLCMC 2.25A 2LN TH |
115 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 2.25A | 71.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-05-500CMC 5MH 4A 2LN TH |
162 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 4A | 80mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
HHBC8S-0R6A0043VCMC 43UH 2A 2LN TH |
111 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 43 µH @ 100 kHz | 2A | 54.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCR22-050-0R9A100JCMC 10MH 5A 2LN TH |
200 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 5A | 60mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-08-170HCMC 1.7MH 8A 2LN TH |
150 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 10 kHz | 8A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
CAF-1.5-3.3CMC 3.3MH 1.5A 2LN TH |
692 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 165mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SN10-500JCMC 110UH 3A 2LN TH |
464 | - |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 3A | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SC-040-E092JH-PCMC 9.17MH 4A 2LN TH |
229 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 9.17 mH @ 10 kHz | 4A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-02-20JSCMC 1MH 2A 2LN TH |
207 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
