Crystals
Compare the current Crystals Crystals, Oscillators, Resonators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RH100-26.000-16-F-1015-EXT-TRCRYSTAL 26.0000MHZ 16PF SMD |
2,005 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±15ppm | ±10ppm | 16pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-24.000-9-1015-EXT-TRCRYSTAL 24.0000MHZ 9PF SMD |
12,201 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±15ppm | ±10ppm | 9pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|

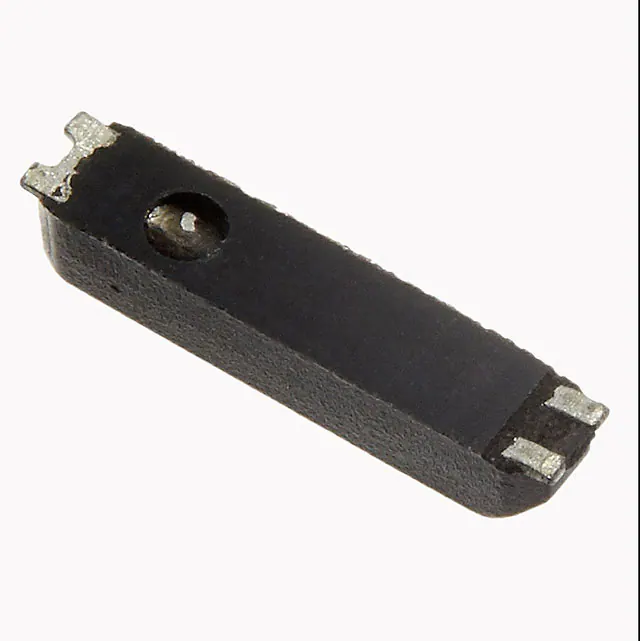

RSE-32.768-12.5-H14-TRCRYSTAL 32.7680KHZ 12.5PF SMD |
4,587 | - |
|
Datasheet | RSE H14 | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±50ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.264" L x 0.055" W (6.70mm x 1.40mm) | 0.055" (1.40mm) |
|

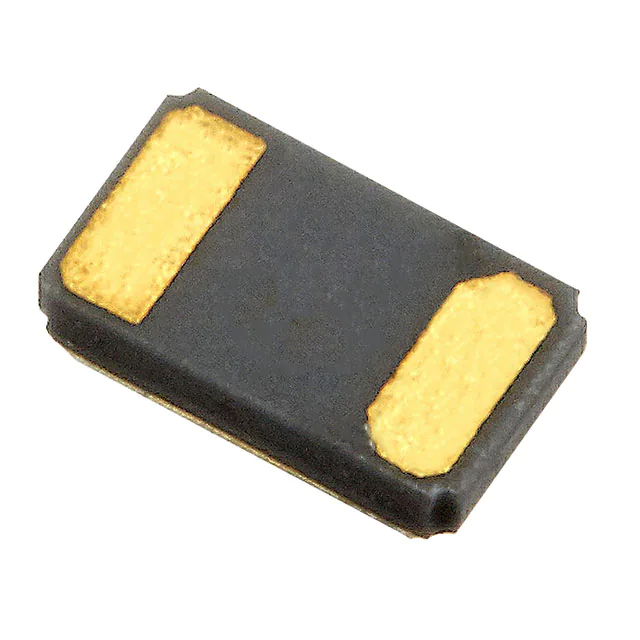

RT2012-32.768-9-20-EXT-TRCRYSTAL 32.7680KHZ 9PF SMD |
4,130 | - |
|
Datasheet | RT2012 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|

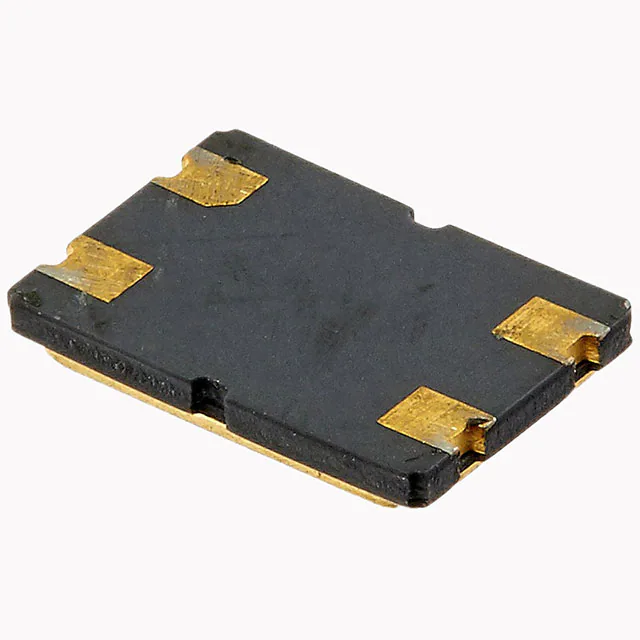

H13-8.000-18-3030-EXT-TRCRYSTAL 8.0000MHZ 18PF SMD |
9,476 | - |
|
Datasheet | H13 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
AS-5.000-18-EXT-SMD-TRCRYSTAL 5.0000MHZ 18PF SMD |
2,990 | - |
|
Datasheet | AS-SMD | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 5 MHz | ±50ppm | ±30ppm | 18pF | - | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.472" L x 0.189" W (12.00mm x 4.80mm) | 0.181" (4.60mm) |
|
|
AS-20.000-20-SMD-TRCRYSTAL 20.0000MHZ 20PF SMD |
1,396 | - |
|
Datasheet | AS-SMD | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.472" L x 0.189" W (12.00mm x 4.80mm) | 0.181" (4.60mm) |
|
RH100-24.000-10-3030-TRCRYSTAL 24.000MHZ 10PF SMD |
2,990 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 10pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-12.288-12-2050-EXT-TRCRYSTAL 12.288MHZ 12PF SMD |
2,990 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12.288 MHz | ±50ppm | ±20ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-20.000-12-2030-EXT-TR-NS1CRYSTAL 20.000MHZ 12PF SMD |
2,980 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±20ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
Crystals FAQ
How can I narrow the current Crystals selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Crystals parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
