Crystals
Compare the current Crystals Crystals, Oscillators, Resonators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV16070003CRYSTAL 16.0000MHZ 10PF SMD |
3,536 | - |
|
Datasheet | AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 10pF | 120 Ohms | Fundamental | -40°C ~ 105°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
AV24077001CRYSTAL 24.0000MHZ 18PF SMD |
2,659 | - |
|
Datasheet | AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±20ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
AV27070005CRYSTAL 27.0000MHZ 8PF SMD |
8,689 | - |
|
Datasheet | AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27 MHz | ±20ppm | ±10ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 105°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
AV33800001CRYSTAL 33.8688MHZ 6PF SMD |
9,469 | - |
|
Datasheet | AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 33.8688 MHz | ±40ppm | ±40ppm | 6pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|

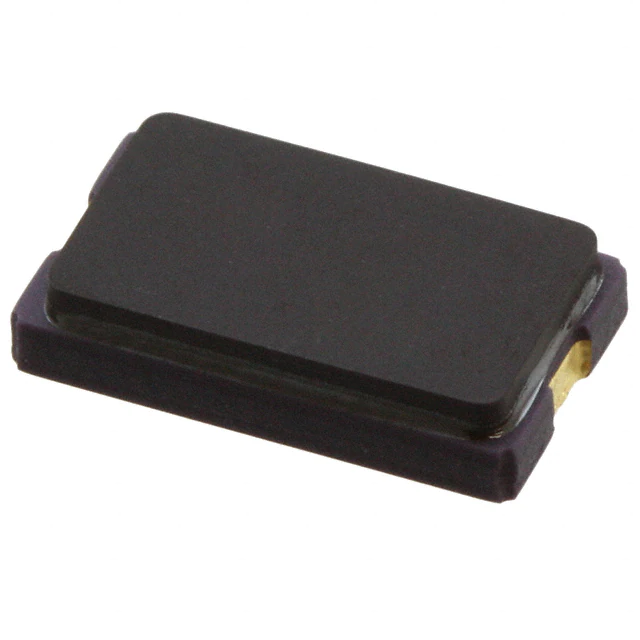

AX16000004CRYSTAL 16.0000MHZ 22PF SMD |
3,277 | - |
|
Datasheet | AX | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 22pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.059" (1.50mm) |
|
AZ16000003CRYSTAL 16.0000MHZ 10PF SMD |
9,977 | - |
|
Datasheet | AZ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±15ppm | ±10ppm | 10pF | 100 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
|
AZ20070003CRYSTAL 20.0000MHZ 12PF SMD |
6,057 | - |
|
Datasheet | AZ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
|
AZ40060001CRYSTAL 40.0000MHZ 7PF SMD |
6,356 | - |
|
Datasheet | AZ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±18ppm | ±10ppm | 7pF | 80 Ohms | Fundamental | -40°C ~ 105°C | AEC-Q200 | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
9B03500050CRYSTAL 3.579545MHZ 18PF TH |
3,607 | - |
|
Datasheet | 9B | HC-49/US | Bulk | Obsolete | MHz Crystal | 3.579545 MHz | ±30ppm | ±30ppm | 18pF | 200 Ohms | Fundamental | -10°C ~ 60°C | - | Through Hole | - | 0.453" L x 0.197" W (11.50mm x 5.00mm) | 0.145" (3.68mm) |
|
|
9B03500274CRYSTAL 3.579545MHZ 30PF TH |
4,968 | - |
|
Datasheet | 9B | HC-49/US | Bulk | Obsolete | MHz Crystal | 3.579545 MHz | ±30ppm | ±30ppm | 30pF | 200 Ohms | Fundamental | -40°C ~ 85°C | - | Through Hole | - | 0.453" L x 0.197" W (11.50mm x 5.00mm) | 0.145" (3.68mm) |
Crystals FAQ
How can I narrow the current Crystals selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Crystals parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
