Crystals
Browse available Crystals components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABM3-20.000MHZ-D2Y-TCRYSTAL 20.0000MHZ 18PF SMD |
11,049 | - |
|
Datasheet | ABM3 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±20ppm | 18pF | 30 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
ECS-40-20-5PXDU-TRCRYSTAL 4.0000MHZ 20PF SMD |
8,050 | - |
|
Datasheet | CSM-7X-DU | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 4 MHz | ±100ppm | ±30ppm | 20pF | 150 Ohms | Fundamental | -55°C ~ 125°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
|
ABM3-18.432MHZ-B2-TCRYSTAL 18.4320MHZ 18PF SMD |
4,217 | - |
|
Datasheet | ABM3 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 18.432 MHz | ±50ppm | ±20ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
ECS-240-8-36CKM-TRCRYSTAL 24.0000MHZ 8PF SMD |
139,564 | - |
|
Datasheet | ECX-2236 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 8pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
CM315D32768DZYTCRYSTAL 32.7680KHZ 7PF SMD |
130,570 | - |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
ECS-390-CDX-1932CRYSTAL 39.0000MHZ 10PF SMD |
16,703 | - |
|
Datasheet | ECS-CDX | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 39 MHz | ±13ppm | ±8ppm | 10pF | 35 Ohms | Fundamental | -40°C ~ 95°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
CS10820-24MCRYSTAL 24.0000MHZ 8PF SMD |
7,629 | - |
|
Datasheet | NX2016SA | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±50ppm | ±15ppm | 6pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
ECS-.327-12.5-34B-C-TRCRYSTAL 32.7680KHZ 12.5PF SMD |
114,663 | - |
|
Datasheet | ECX-31B | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|

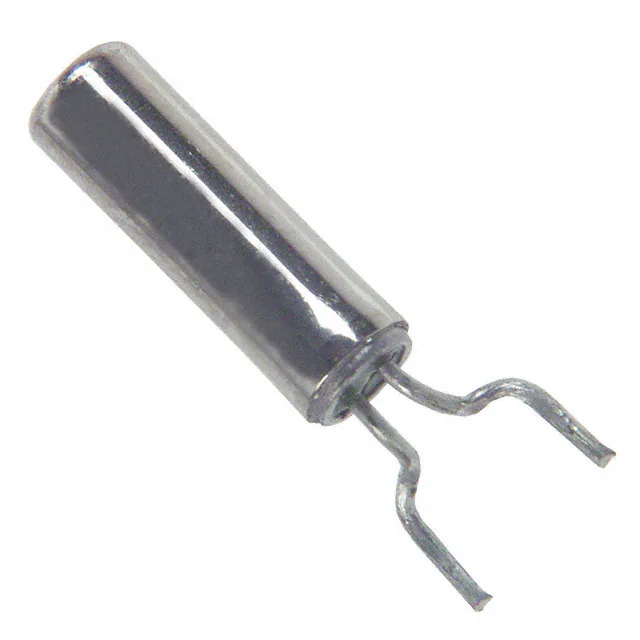

CMR200T32768DZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
36,050 | - |
|
Datasheet | CMR200T | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ABM3-20.000MHZ-B2-TCRYSTAL 20.0000MHZ 18PF SMD |
9,998 | - |
|
Datasheet | ABM3 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±50ppm | ±20ppm | 18pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
LNCD1-25MCRYSTAL 25.0000MHZ 8PF SMD |
167,774 | - |
|
Datasheet | NX5032GA | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 8pF | 70 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
FC-135 32.7680KA-AG5CRYSTAL 32.7680KHZ 7PF SMD |
92,268 | - |
|
Datasheet | FC-135 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
HCM494000000ABJTCRYSTAL 4.0000MHZ 18PF SMD |
78,471 | - |
|
Datasheet | HCM49 | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 18pF | 150 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.169" (4.30mm) |
|
ECS-250-20-33-CKM-TRCRYSTAL 25.0000MHZ 20PF SMD |
32,326 | - |
|
Datasheet | ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±10ppm | ±10ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
CFS-20632768HZFBCRYSTAL 32.7680KHZ 12.5PF TH |
22,554 | - |
|
Datasheet | CFS-206 | Cylindrical Can, Radial | Bulk | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±5ppm | 12.5pF | 35 kOhms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.075" Dia (1.90mm) | 0.244" (6.20mm) |
|
|
LNCD1-16MCRYSTAL 16.0000MHZ 8PF SMD |
22,113 | - |
|
Datasheet | NX5032GA | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 8pF | 120 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ECS-240-20-33-TRCRYSTAL 24.0000MHZ 20PF SMD |
11,357 | - |
|
Datasheet | ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±50ppm | ±50ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
CM315D32768EZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
239,166 | - |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
CM315D32768HZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
156,565 | - |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±5ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
.jpg "CX3225SB12000D0FPNCC")
|
CX3225SB12000D0FPNCCCRYSTAL 12.0000MHZ 8PF SMD |
57,936 | - |
|
Datasheet | CX3225SB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±25ppm | ±10ppm | 8pF | 150 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
Crystals FAQ
What Crystals components can I source from EGOO?
You can browse available Crystals product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Crystals parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
