Crystals
Compare the current Crystals Crystals, Oscillators, Resonators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

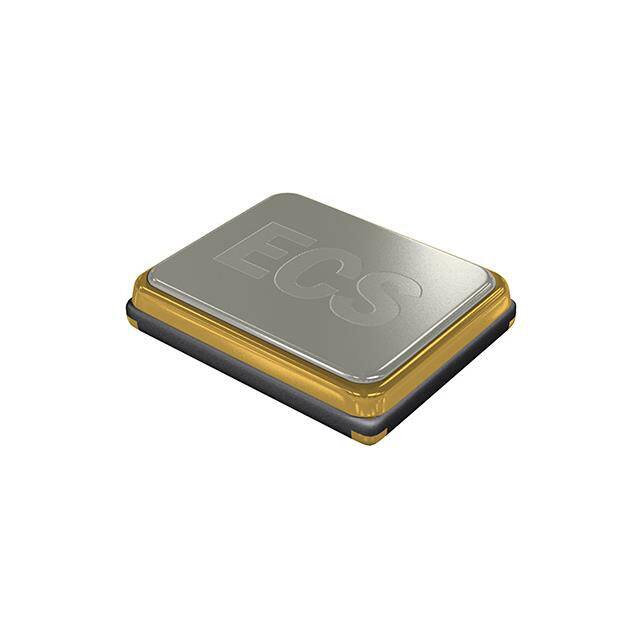

ECS-271.2-10-30B-RWY-TRCRYSTAL 27.1200MHZ 10PF SMD |
1,998 | - |
|
Datasheet | ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27.12 MHz | ±15ppm | ±15ppm | 10pF | 30 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|
ECS-320-6-47B-CTN-TRCRYSTAL 32.0000MHZ 6PF SMD |
1,267 | - |
|
Datasheet | ECX-1247B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±20ppm | ±10ppm | 6pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.014" (0.35mm) |
|
ECS-92.1-S-4CRYSTAL 9.2160MHZ SERIES TH |
673 | - |
|
Datasheet | HC-49US | HC-49/US | Bulk | Not For New Designs | MHz Crystal | 9.216 MHz | ±50ppm | ±30ppm | Series | 60 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.138" (3.50mm) |
|
ECS-320-8-47B-JTM-TRCRYSTAL 32.0000MHZ 8PF SMD |
390 | - |
|
Datasheet | ECX-1247B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 8pF | 80 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.014" (0.35mm) |
|
ECS-163.84-18-30B-AGN-TRCRYSTAL 16.3840MHZ 18PF SMD |
3,181 | - |
|
Datasheet | ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16.384 MHz | ±30ppm | ±25ppm | 18pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|
ECS-400-8-37QZ-RES-TRCRYSTAL 40.000 MHZ 8PF SMD |
1,485 | - |
|
Datasheet | ECX-1637QZ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±50ppm | ±15ppm | 8pF | 70 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.022" (0.55mm) |
|
ECS-200-8-36-RWN-TRCRYSTAL 20.0000MHZ 8PF SMD |
1,440 | - |
|
Datasheet | ECX-2236 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±15ppm | ±15ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
ECS-270-8-36-RWN-TRCRYSTAL 27.0000MHZ 8PF SMD |
837 | - |
|
Datasheet | ECX-2236 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27 MHz | ±15ppm | ±15ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
ECS-192.0-8-36-RWN-TRCRYSTAL 19.2000MHZ 8PF SMD |
672 | - |
|
Datasheet | ECX-2236 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 19.2 MHz | ±15ppm | ±15ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
ECS-122.8-S-4CRYSTAL 12.2880MHZ SERIES TH |
1,443 | - |
|
Datasheet | HC-49US | HC-49/US | Bulk | Not For New Designs | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | Series | 60 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.138" (3.50mm) |
Crystals FAQ
How can I narrow the current Crystals selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Crystals parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
