Crystals
Compare the current Crystals Crystals, Oscillators, Resonators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-49-CDX-0787CRYSTAL 4.9152MHZ 20PF TH |
8,408 | - |
|
Datasheet | HC-49USX | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 4.9152 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.138" (3.50mm) |
|
ECS-264.513-CD-0381CRYSTAL 26.4513MHZ 12PF SMD |
2,253 | - |
|
Datasheet | CSM-7 | HC-49/US | Bulk | Not For New Designs | MHz Crystal | 26.4513 MHz | ±30ppm | ±20ppm | 12pF | 30 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
|
ECS-265.971-CD-0382CRYSTAL 26.5971MHZ 12PF SMD |
4,623 | - |
|
Datasheet | CSM-7 | HC-49/US | Bulk | Not For New Designs | MHz Crystal | 26.5971 MHz | ±30ppm | ±20ppm | 12pF | 30 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
|
ECS-282.594-CD-0385CRYSTAL 28.2594MHZ 12PF SMD |
2,191 | - |
|
Datasheet | CSM-7 | HC-49/US | Bulk | Not For New Designs | MHz Crystal | 28.2594 MHz | ±30ppm | ±20ppm | 12pF | 30 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
ECS-184-S-23A-TRCRYSTAL 18.4320MHZ SERIES SMD |
9,339 | - |
|
Datasheet | ECX-64A | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | Series | 60 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.043" (1.10mm) |
|
ECS-120-20-23A-TRCRYSTAL 12.0000MHZ 20PF SMD |
9,189 | - |
|
Datasheet | ECX-64A | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.043" (1.10mm) |
|
ECS-360-20-30B-TRCRYSTAL 36.0000MHZ 20PF SMD |
2,415 | - |
|
Datasheet | ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 36 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|

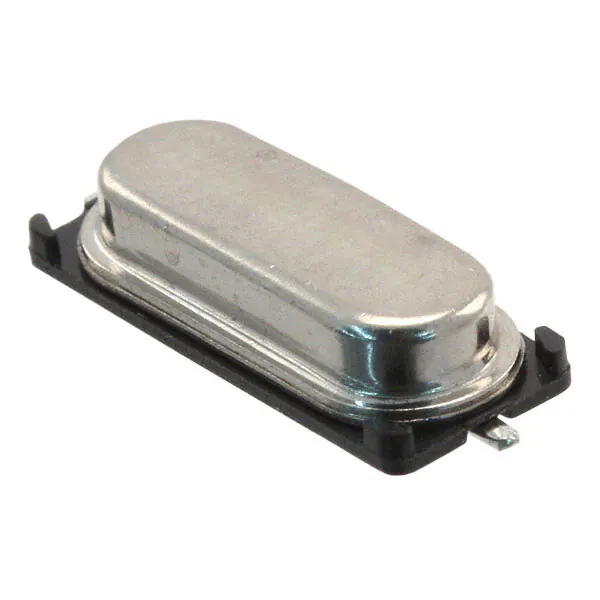

ECS-60-20-5PVXCRYSTAL 6.0000MHZ 20PF SMD |
9,511 | - |
|
Datasheet | CSM-7SSX | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 20pF | 100 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.102" (2.60mm) |
|
|
ECS-184-20-5PVXCRYSTAL 18.4320MHZ 20PF SMD |
6,309 | - |
|
Datasheet | CSM-7SSX | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 50 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.102" (2.60mm) |
|
ECS-196.6-S-18-TRCRYSTAL 19.6608MHZ SERIES SMD |
5,140 | - |
|
Datasheet | CSM-12 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 19.6608 MHz | ±100ppm | ±30ppm | Series | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.465" L x 0.217" W (11.80mm x 5.50mm) | 0.098" (2.50mm) |
Crystals FAQ
How can I narrow the current Crystals selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Crystals parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
