RF Diodes
Browse available RF Diodes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS20-046-0805SCHOTTKY DIODE,CHIP-PACKAGE, 080 |
8,554 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tray | Active | Schottky - Single | 1V | 35 mA | 0.2pF @ 500mV, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | 0805-2 |
|
MSS30-248-B20SCHOTTKY DIODE,BEAMLEAD, B20 |
7,328 | - |
|
Datasheet | - | B20 | Tray | Active | Schottky - 1 Pair Series Connection | 2V | 50 mA | 0.15pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | B20 |
|
MMD805-E25DIODE,SRD-CHIP-PACKAGE, E25 |
8,981 | - |
|
Datasheet | MMDx | E25 | Tray | Active | Step Recovery Diode | 60V | 150 mA | 3.57pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | E25 |
|
MSS20-046-E28SCHOTTKY DIODE,BEAMLEAD, E28-S |
4,921 | - |
|
Datasheet | - | E28 | Bulk | Active | Schottky - Single | 1V | 35 mA | 0.2pF @ 500mV, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | E28 |
|
MSS20-046-E25SCHOTTKY DIODE,BEAMLEAD, E25 |
3,662 | - |
|
Datasheet | - | E25 | Tray | Active | Schottky - Single | 1V | 35 mA | 0.18pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | E25 |
|
MGS803GAAS SCHOTTKY CHIP |
9,549 | - |
|
Datasheet | MGS8xx | Die | Tray | Active | Schottky - 1 Pair Series Connection | 5V (Min) | 50 mA | 0.06pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 75 mW | -65°C ~ 150°C | - | - | Chip |
|
MMP7066-11DIE, DIODE, PIN |
2,760 | - |
|
Datasheet | - | Die | Tray | Active | PIN - Single | 500V | 150 mA | 0.1pF @ 100V, 1MHz | 15Ohm @ 1mA, 100MHz | - | 175°C (TJ) | - | - | Die |
|
MEST2G-080-025PIN, SI BEAM LEAD,CM27 |
7,153 | - |
|
Datasheet | - | CM27 | Tray | Active | PIN - Single | 500V | 200 mA | 0.09pF @ 50V, 1MHz | 970mOhm @ 100mA, 500MHz | 80 W | -40°C ~ 175°C (TJ) | - | - | CM27 |
|
MSS60-841-E45SCHOTTKY DIODE,BEAMLEAD, E45-1 |
9,485 | - |
|
Datasheet | - | E45 | Tray | Active | Schottky - 1 Bridge | 6V | 50 mA | 0.35pF @ 0V, 1MHz | 23Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | E45 |
|

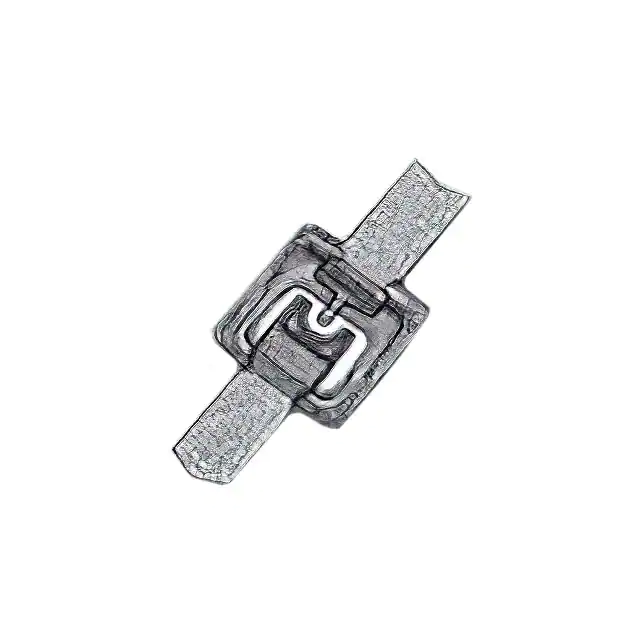

MSS20-140-B10DSCHOTTKY DIODE,BEAMLEAD, B10D |
7,966 | - |
|
Datasheet | - | B10D | Tray | Active | Schottky - Single | 1V | 35 mA | 0.08pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | B10D |
|
MSS40-148-B10BSCHOTTKY DIODE,BEAMLEAD, B10B |
9,376 | - |
|
Datasheet | - | B10B | Tray | Active | Schottky - Single | 3V | 50 mA | 0.15pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | B10B |
|
MMD805-C12COM SRD-CHIP, C12 |
4,983 | - |
|
Datasheet | MMDx | Die | Tray | Active | Step Recovery Diode | 60V | 150 mA | 3.5pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | Chip |
|
MSS60-848-H40SCHOTTKY DIODE,BEAMLEAD, H40 |
2,788 | - |
|
Datasheet | - | H40 | Tray | Active | Schottky - 1 Bridge | 6V | 50 mA | 0.51pF @ 0V, 1MHz | 13Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | H40 |
|
|
MSS60-448-E45RSCHOTTKY DIODE,BEAMLEAD, E45R-1 |
4,990 | - |
|
Datasheet | - | E45 | Tray | Active | Schottky - 1 Bridge | 3.5V | 50 mA | 0.38pF @ 0V, 1MHz | 13Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | E45 |
|
|
MGS902SCHOTTKY DIODE,GAAS-BEAMLEAD, GB |
6,585 | - |
|
Datasheet | MGS9xx | 2-SMD, Flat Leads | Tray | Active | Schottky - Anti-Parallel | 5V (Min) | 50 mA | 0.1pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 75 mW | -65°C ~ 150°C | - | - | GB210 |
|
MMDB30-E28XDIODE, BEAMLEAD SRD, E28X |
7,958 | - |
|
Datasheet | MMDx | E28 | Tray | Active | Standard - Single | 14V | 50 mA | 0.33pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | E28 |
|
|
MSS20-141-B10DSCHOTTKY DIODE,BEAMLEAD, B10D |
2,036 | - |
|
Datasheet | - | B10D | Tray | Discontinued at Digi-Key | Schottky - Single | 1V | 35 mA | 0.08pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | B10D |
|
MSS20-055-H27SCHOTTKY DIODE,BEAMLEAD, H27 |
8,305 | - |
|
Datasheet | - | H27 | Tray | Active | Schottky - Single | 1V | 35 mA | 0.32pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | H27 |
|
MSS39-152-H20SCHOTTKY DIODE,BEAMLEAD, H20-2 |
9,417 | - |
|
Datasheet | - | H20 | Tray | Active | Schottky - Single | 3.5V | 50 mA | 0.36pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | H20 |
|
|
MMP7027-11DIODE,PIN,DIE |
4,172 | - |
|
Datasheet | MMP7027 | Die | Tray | Active | PIN - Single | 100V | - | 0.1pF @ 10V, 1MHz | 700mOhm @ 75mA, 1MHz | - | -55°C ~ 150°C | - | - | Die |
