RF Diodes
Browse available RF Diodes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAP70Q,125RF DIODE PIN 50V 125MW 5TSOP |
16,906 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | PIN - 2 Pair CA + CC | 50V | 100 mA | 0.3pF @ 20V, 1MHz | 1.9Ohm @ 100mA, 100MHz | 125 mW | -65°C ~ 150°C (TJ) | - | - | 5-TSOP |
|
SMP1352-079LFRF DIODE PIN 200V 250MW SC79 |
6,372 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 200V | - | 0.35pF @ 20V, 1MHz | 1.35Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SC-79 |
|
BAT15099E6327HTSA1DIODE SCHOTTKY 4V 100MW SOT143-4 |
3,471 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Schottky - 2 Independent | 4V | 110 mA | 0.35pF @ 0V, 1MHz | - | 100 mW | 150°C (TJ) | - | - | PG-SOT-143-3D |
|
BAT15099E6433HTMA1DIODE SCHOTTKY 4V 100MW SOT143-4 |
1,240 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Schottky - 2 Independent | 4V | 110 mA | 0.35pF @ 0V, 1MHz | - | 100 mW | 150°C (TJ) | - | - | PG-SOT-143-3D |
|
SMS3924-040LFDIODE SCHOTTKY 70V 75MW SOD882 |
8,158 | - |
|
Datasheet | - | SOD-882 | Tape & Reel (TR) | Active | Schottky - Single | 70V | 50 mA | - | - | 75 mW | 150°C (TJ) | - | - | SOD-882 |
|
SMP1320-075LFRF DIODE PIN 50V 250MW SC70-3 |
3,006 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Active | PIN - 1 Pair Series Connection | 50V | - | 0.3pF @ 30V, 1MHz | 900mOhm @ 10mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SC-70-3 |
|
|
BAT15099RE6327HTSA1DIODE SCHOTTKY 4V 100MW SOT143-4 |
2,474 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Schottky - Cross Over | 4V | 110 mA | 0.5pF @ 0V, 1MHz | - | 100 mW | 150°C (TJ) | - | - | PG-SOT-143-3D |
|
SMP1302-003LFRF DIODE PIN 200V 250MW SOT23 |
40,280 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PIN - 1 Pair Common Anode | 200V | - | 0.3pF @ 30V, 1MHz | 1.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SOT-23-3 |
|
CLA4604-000DIODE LIMITER SILICON 30-60V |
7,700 | - |
|
Datasheet | CLA | Die | Tray | Active | PIN - Single | 60V | 200 mA | - | 2.5Ohm @ 10mA, 1MHz | 650 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
SMP1325-087LFRF DIODE PIN 2W 2QFN |
8,895 | - |
|
Datasheet | - | 2-VSFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | - | 200 mA | 0.6pF @ 20V, 1MHz | 550mOhm @ 100mA, 100MHz | 2 W | -55°C ~ 175°C (TJ) | - | - | 2-QFN (2x2) |
|
CDC7630-000RF DIODE SCHOTTKY 2V 75MW CHIP |
8,200 | - |
|
Datasheet | - | Die | Bulk | Active | Schottky - Single | 2V | 100 mA | - | - | 75 mW | -55°C ~ 150°C (TA) | - | - | Chip |
|
|
CDF7621-000RF DIODE SCHOTTKY 2V CHIP |
4,700 | - |
|
Datasheet | - | Die | Bulk | Active | Schottky - Single | 2V | - | - | - | - | - | - | - | Chip |
|

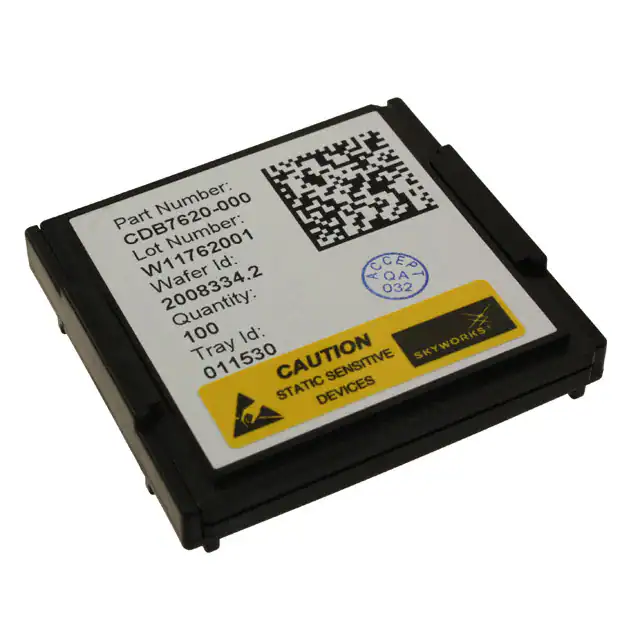

CDB7620-000RF DIODE SCHOTTKY 2V CHIP |
200 | - |
|
Datasheet | - | Die | Bulk | Active | Schottky - Single | 2V | - | 0.15pF @ 0V, 10MHz | 30Ohm @ 10mA, 10MHz | - | - | - | - | Chip |
|
|
CDC7631-000RF DIODE SCHOTTKY 2V 75MW CHIP |
900 | - |
|
Datasheet | - | Die | Bulk | Active | Schottky - Single | 2V | 100 mA | - | - | 75 mW | -55°C ~ 150°C (TA) | - | - | Chip |
|
MA4P303-134RF DIODE PIN 200V DIE |
900 | - |
|
Datasheet | - | Die | Bulk | Active | PIN - Single | 200V | - | 0.15pF @ 10V, 10MHz | 1.5Ohm @ 10mA, 500MHz | - | 175°C (TJ) | - | - | Die |
|
MADP-007448-1146DTDIODE,PIN,PLASTIC,STR |
2,532 | - |
|
Datasheet | SMPP | SC-70, SOT-323 | Tape & Reel (TR) | Active | PIN - 1 Pair Series Connection | 100V | 150 mA | 0.25pF @ 50V, 1MHz | 2Ohm @ 10mA, 100MHz | - | 175°C (TJ) | - | - | SC-70-3 |
|
|
MA4P404-132RF DIODE PIN 250V DIE |
1,100 | - |
|
Datasheet | - | Die | Bulk | Active | PIN - Single | 250V | - | 0.2pF @ 50V, 1MHz | 700mOhm @ 50mA, 500MHz | - | 175°C (TJ) | - | - | Die |
|
MA4E1318RF DIODE SCHOTTKY 7V |
9,100 | - |
|
Datasheet | - | 2-SMD | Bulk | Active | Schottky - Anti-Parallel | 7V | - | 0.06pF @ 0V, 1MHz | - | - | -65°C ~ 125°C (TJ) | - | - | - |
|
MADP-007436-12790TDIODE,PIN,PLASTIC,LEADFREE |
17,321 | - |
|
Datasheet | SMPP | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 75V | 150 mA | 1pF @ 20V, 1MHz | 500mOhm @ 10mA, 100MHz | 200 mW | 175°C (TJ) | - | - | SC-79 |
|
MADP-007455-12790TRF DIODE PIN 100V |
10,826 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 100V | 150 mA | 0.35pF @ 50V, 1MHz | 3Ohm @ 10mA, 100MHz | - | 175°C (TJ) | - | - | SC-79 |
RF Diodes FAQ
What RF Diodes components can I source from EGOO?
You can browse available RF Diodes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Diodes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
