RF Diodes
Compare the current RF Diodes Diodes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLA4606-085LFRF DIODE PIN 75V 3W 3QFN |
2,425 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 75V | 1.5 A | 0.38pF @ 6V, 1MHz | 2Ohm @ 10mA, 100MHz | 3 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4605-085LFRF DIODE PIN 60V 1W 3QFN |
4,264 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 60V | 1.5 A | 0.45pF @ 6V, 1MHz | 2Ohm @ 10mA, 500MHz | 1 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4608-085LFRF DIODE PIN 180V 2W 3QFN |
4,045 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 180V | 1.5 A | 0.65pF @ 38V, 1MHz | 1.2Ohm @ 10mA, 500MHz | 2 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
SMP1330-085LFRF DIODE PIN 50V 3W 3QFN |
5,435 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 50V | 200 mA | 1pF @ 0V, 1MHz | 2Ohm @ 10mA, 100MHz | 3 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4609-086LFRF DIODE PIN 250V 3QFN |
5,042 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 250V | 200 mA | 0.14pF @ 6V, 1MHz | 1.5Ohm @ 10mA, 500MHz | - | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4610-085LFRF DIODE PIN 120V 10W 3QFN |
6,902 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 120V | 100 mA | 0.32pF @ 6V, 1MHz | 2.2Ohm @ 10mA, 500MHz | 10 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|

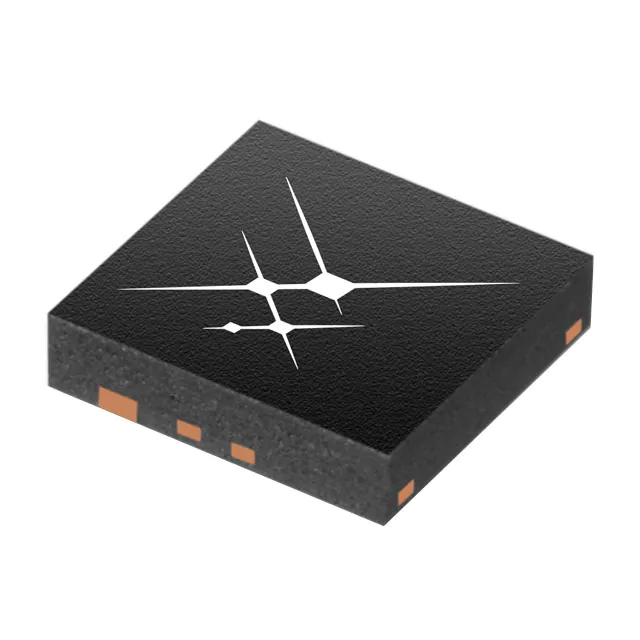

SKY16602-632LFRF DIODE PIN 20V 12W 2MLP |
9,387 | - |
|
Datasheet | - | 2-UDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 20V | 50 mA | - | - | 12 W | -40°C ~ 85°C (TA) | - | - | 2-MLP (2.3x2.3) |
|
DSG9500-000RF DIODE PIN 100V 250MW |
2,095 | - |
|
Datasheet | - | - | Tray | Active | PIN - Single | 100V | - | 0.025pF @ 50V, 1MHz | 4Ohm @ 50mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | - |
|
CLA4606-000DIODE LIMITER SILICON 45-75V |
3,862 | - |
|
Datasheet | CLA | Die | Tray | Active | PIN - Single | 75V | 200 mA | - | 2Ohm @ 10mA, 1MHz | 650 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
|
CLA4608-000DIODE LIMITER SILICON 120-180V |
3,022 | - |
|
Datasheet | CLA | Die | Tray | Active | PIN - Single | 180V | 200 mA | - | 1.2Ohm @ 10mA, 1MHz | 850 mW | -65°C ~ 175°C (TJ) | - | - | Die |
RF Diodes FAQ
How can I narrow the current RF Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
