DIP Switches
Compare the current DIP Switches Switches selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

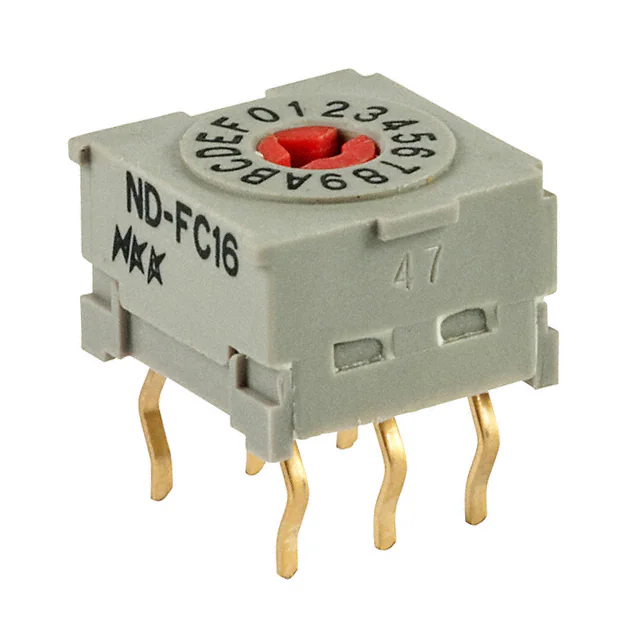

NDFC16PSW ROTARY DIP HEX COMP 0.1A 5V |
125 | - |
|
Datasheet | ND | Tray | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.205" (5.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|

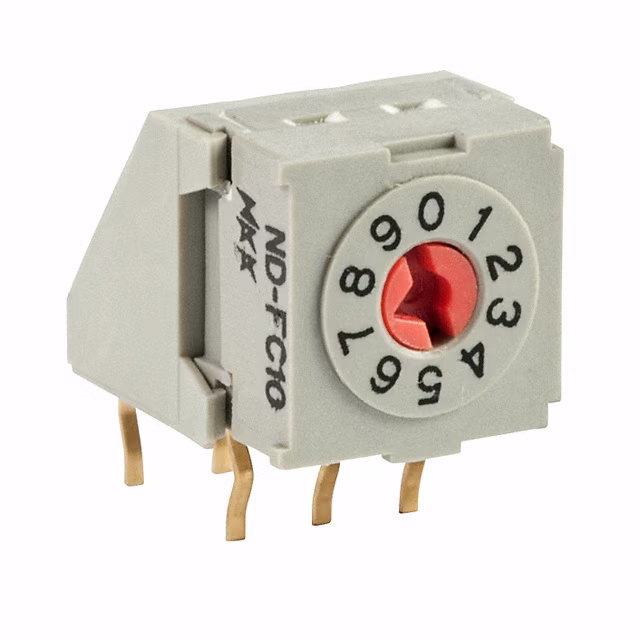

NDFC10HSW ROTARY DIP BCD COMP 0.1A 5V |
111 | - |
|
Datasheet | ND | Box | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.312" (7.92mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|
ND3FC16P-RSW ROTARY DIP HEX COMP 0.1A 5V |
810 | - |
|
Datasheet | ND3 | Tape & Reel (TR) | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
ND3FR10P-RSWITCH ROTARY DIP BCD 0.1A 5V |
4,995 | - |
|
Datasheet | ND3 | Tape & Reel (TR) | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|

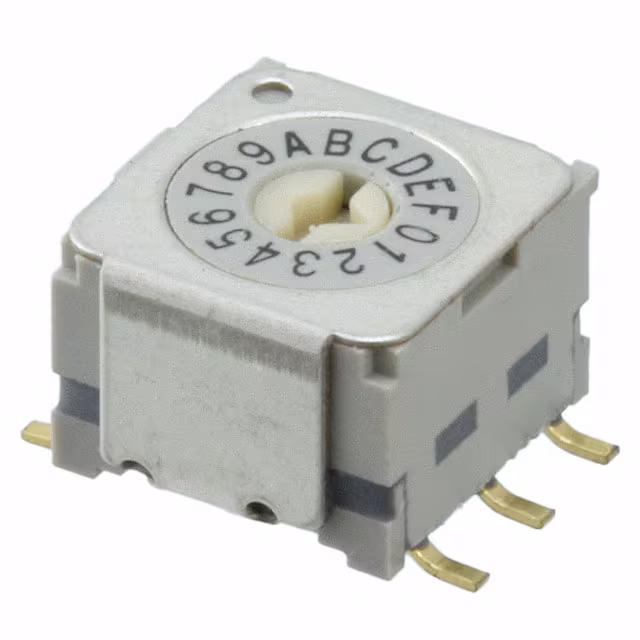

ND3FR16P-RSWITCH ROTARY DIP HEX 0.1A 5V |
3,794 | - |
|
Datasheet | ND3 | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|

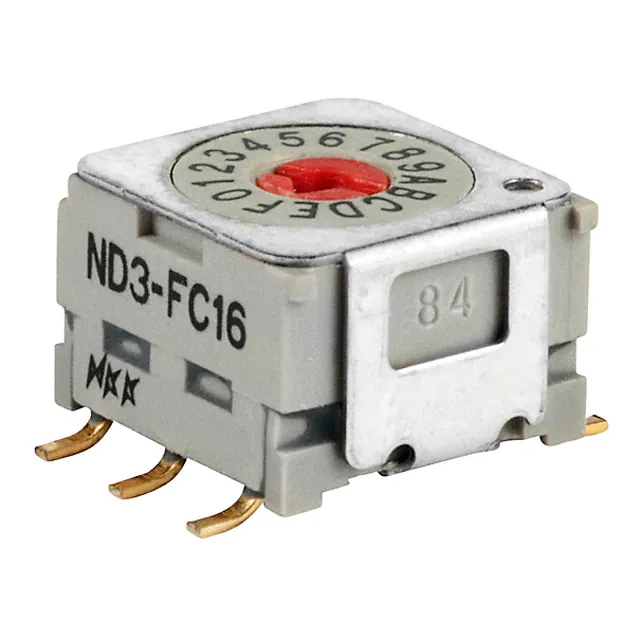

ND3FC16PSW ROTARY DIP HEX COMP 0.1A 5V |
111 | - |
|
Datasheet | ND3 | Tray | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|

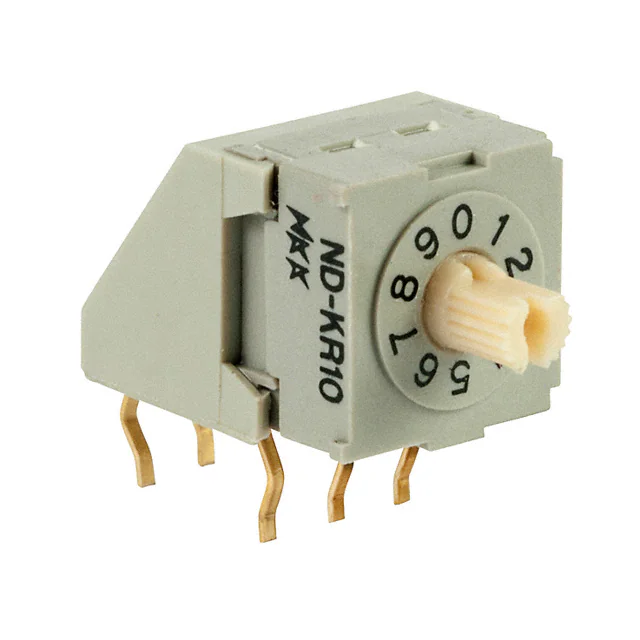

NDKR10HSWITCH ROTARY DIP BCD 0.1A 5V |
267 | - |
|
Datasheet | ND | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.312" (7.92mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|
NDKC16HSW ROTARY DIP HEX COMP 0.1A 5V |
196 | - |
|
Datasheet | ND | Box | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.312" (7.92mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|

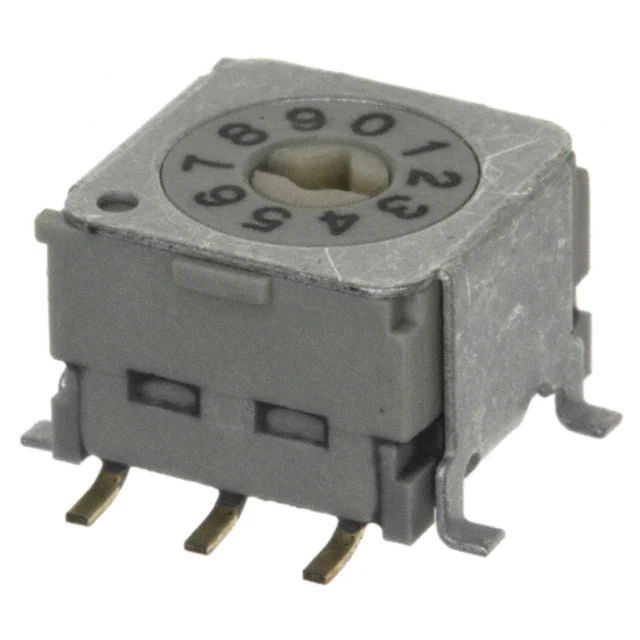

ND3FR10B-RSWITCH ROTARY DIP BCD 0.1A 5V |
472 | - |
|
Datasheet | ND3 | Tape & Reel (TR) | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
FR01AR16HBSWITCH ROTARY DIP HEX 0.1A 5V |
3,531 | - |
|
Datasheet | FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
DIP Switches FAQ
How can I narrow the current DIP Switches selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DIP Switches parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
