DIP Switches
Browse available DIP Switches components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFP-0301TBSWITCH PIANO DIP SPST 0.1A 6V |
2,910 | - |
|
Datasheet | CFP | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0302TBSWITCH PIANO DIP SPST 0.1A 6V |
4,653 | - |
|
Datasheet | CFP | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0311TBSWITCH PIANO DIP SPST 0.1A 6V |
1,535 | - |
|
Datasheet | CFP | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADPA02SSWITCH PIANO DIP SPST 0.025A 24V |
4,718 | - |
|
Datasheet | ADPA | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
218-12LPSTFSWITCH SLIDE DIP SPST 0.025A 24V |
1,985 | - |
|
Datasheet | 218 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

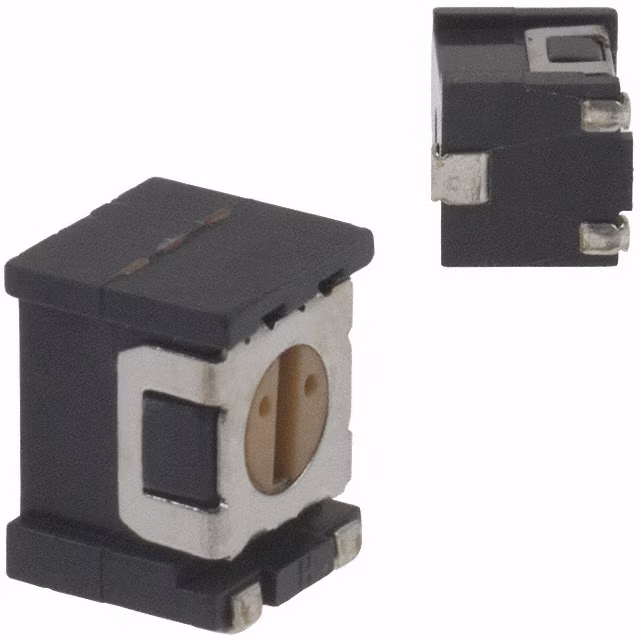

CS-32-12ZETGSWITCH ROTARY DIP SPDT 0.1A 16V |
2,772 | - |
|
Datasheet | CS-32 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | - | - | 0.185" (4.70mm) | Surface Mount, Right Angle | J Lead | - | Yes | - | -40°C ~ 85°C |
|

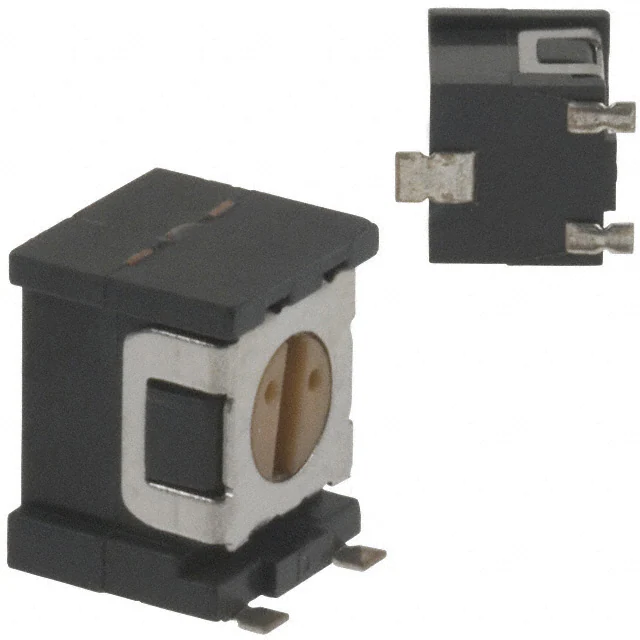

CS-32-12ZETHSWITCH ROTARY DIP SPDT 0.1A 16V |
2,904 | - |
|
Datasheet | CS-32 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | - | - | 0.185" (4.70mm) | Surface Mount, Right Angle | Gull Wing | - | Yes | - | -40°C ~ 85°C |
|
|
CS-32-12ZEGSWITCH ROTARY DIP SPDT 0.1A 16V |
1,206 | - |
|
Datasheet | CS-32 | Bulk | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | - | - | 0.185" (4.70mm) | Surface Mount, Right Angle | J Lead | - | Yes | - | -40°C ~ 85°C |
|
|
CS-32-12ZEHSWITCH ROTARY DIP SPDT 0.1A 16V |
4,318 | - |
|
Datasheet | CS-32 | Bulk | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | - | - | 0.185" (4.70mm) | Surface Mount, Right Angle | Gull Wing | - | Yes | - | -40°C ~ 85°C |
|

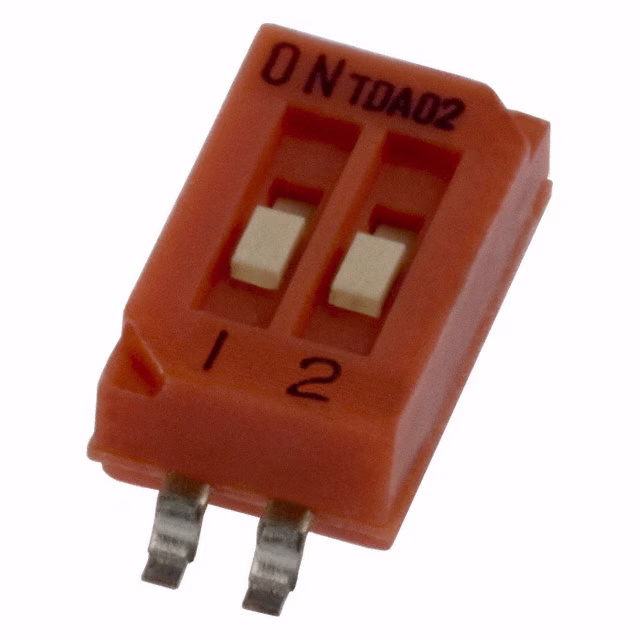

TDA02H0SK1RSWITCH SLIDE DIP SPST 0.025A 24V |
4,972 | - |
|
Datasheet | TDA | Tape & Reel (TR) | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 85°C |
|
|
RDTAR10P2TSWITCH ROTARY DIP BCD 0.15A 42V |
2,907 | - |
|
Datasheet | RDT | Tube | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
DMR10SWITCH SLIDE DIP SPST 0.025A 24V |
2,620 | - |
|
Datasheet | DM | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
DMR12TSWITCH SLIDE DIP SPST 0.025A 24V |
3,381 | - |
|
Datasheet | DM | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
CAS-220TA1SWITCH SLIDE DPDT 100MA 6V |
4,044 | - |
|
Datasheet | CAS | Tape & Reel (TR) | Active | DPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|
CAS-220TB1SWITCH SLIDE DPDT 100MA 6V |
1,079 | - |
|
Datasheet | CAS | Tape & Reel (TR) | Active | DPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
|
218-12LPSTJRSWITCH SLIDE DIP SPST 0.025A 24V |
4,264 | - |
|
Datasheet | 218 | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
218-12LPSTJRFSWITCH SLIDE DIP SPST 0.025A 24V |
1,082 | - |
|
Datasheet | 218 | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
GDS06STRSWITCH SLIDE DIP SPST 0.025A 24V |
3,618 | - |
|
Datasheet | GDS | Tape & Reel (TR) | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
KAP1109ESWITCH PIANO DIP SPST 0.025A 24V |
1,844 | - |
|
Datasheet | KAP | Tube | Active | SPST | 9 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAS1110RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,368 | - |
|
Datasheet | KAS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
DIP Switches FAQ
What DIP Switches components can I source from EGOO?
You can browse available DIP Switches product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DIP Switches parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
