DIP Switches
Browse available DIP Switches components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAS2102ETSWITCH SLIDE DIP SPST 0.025A 24V |
23,250 | - |
|
Datasheet | KAS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
206-214SWITCH SLIDE DIP DPST 0.05A 24V |
848 | - |
|
Datasheet | 206 | Tube | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
.jpg "219-10MSTR")
|
219-10MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
3,605 | - |
|
Datasheet | 219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
DS04-254-1-08BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
407 | - |
|
Datasheet | DS04-254-SMT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418117270906SWITCH SLIDE DIP SPST 0.025A 24V |
468 | - |
|
Datasheet | WS-DITV | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
4-1825059-1SWITCH SLIDE DIP SPST 0.025A 24V |
27,675 | - |
|
Datasheet | ADF | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6T-1104SWITCH SLIDE DIP SPST 0.025A 24V |
5,042 | - |
|
Datasheet | A6T | Tray | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
KAS2104ESWITCH SLIDE DIP SPST 0.025A 24V |
3,511 | - |
|
Datasheet | KAS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KC1901ASWITCH ROTARY DIP SP9T 0.1A 16V |
2,034 | - |
|
Datasheet | KC1901 | Bulk | Active | SP9T | 9 | 100mA | 16VDC | Rotary with Shaft | Raised | Copper Alloy | Silver | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
SDA03H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
1,716 | - |
|
Datasheet | SDA | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1-1825059-7SWITCH SLIDE DIP SPST 0.025A 24V |
13,840 | - |
|
Datasheet | ADF | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
BD01SWITCH SLIDE DIP SPST 0.1A 5V |
944 | - |
|
Datasheet | BD | Tube | Active | SPST | 1 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SDA01H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
67,343 | - |
|
Datasheet | SDA | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SDA01H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
10,928 | - |
|
Datasheet | SDA | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

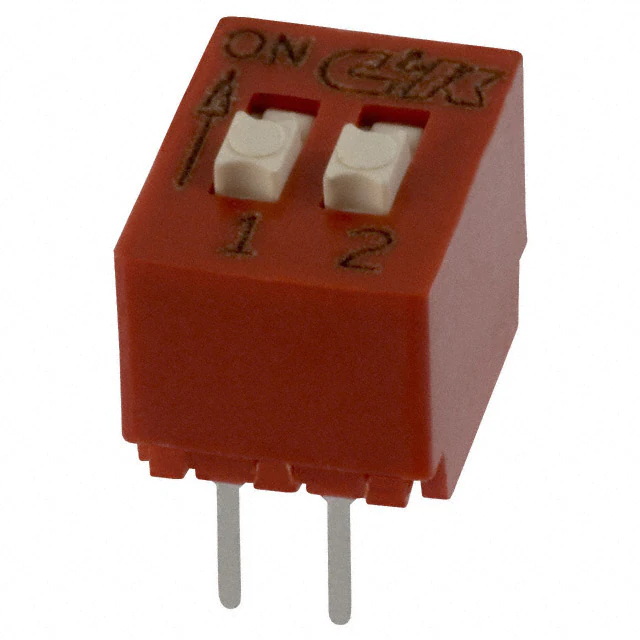

BD02SWITCH SLIDE DIP SPST 0.1A 5V |
3,303 | - |
|
Datasheet | BD | Tube | Active | SPST | 2 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
DS03-254-08BESWITCH SLIDE DIP SPST 0.025A 24V |
178 | - |
|
Datasheet | DS03-254 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
219-12MSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,644 | - |
|
Datasheet | 219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
A6FR-6104SWITCH PIANO DIP SPST 0.025A 24V |
303 | - |
|
Datasheet | A6FR | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
206-8RASTSWITCH SLIDE DIP SPST 0.05A 24V |
2,107 | - |
|
Datasheet | 206RA | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
DS05-127-2-06BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
1,557 | - |
|
Datasheet | DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
DIP Switches FAQ
What DIP Switches components can I source from EGOO?
You can browse available DIP Switches product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DIP Switches parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
