DIP Switches
Browse available DIP Switches components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
418317170902SWITCH PIANO DIP SPST 0.025A 24V |
4,361 | - |
|
Datasheet | WS-DITU | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RDTAR04P1TSWITCH ROTARY DIP BCD 0.15A 42V |
2,034 | - |
|
Datasheet | RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDS4-4S-1012-73-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
4,085 | - |
|
Datasheet | RDS4-1012-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS4-4S-1012-73-RA-254-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
1,326 | - |
|
Datasheet | RDS4-1012-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-4S-1011-73-RA-254-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
1,373 | - |
|
Datasheet | RDS7-1011-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-4S-1011-73-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
1,890 | - |
|
Datasheet | RDS7-1011-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAC02LAGTSWITCH PIANO DIP SPST 0.025A 24V |
4,332 | - |
|
Datasheet | KAC | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.217" (5.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
BPA03SBRSWITCH PIANO DIP SPST 100MA 5VDC |
2,991 | - |
|
Datasheet | BPA | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
GDP04SSWITCH PIANO DIP SPST 0.025A 24V |
4,958 | - |
|
Datasheet | GDP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADP05SWITCH PIANO DIP SPST 0.025A 24V |
2,820 | - |
|
Datasheet | ADP | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

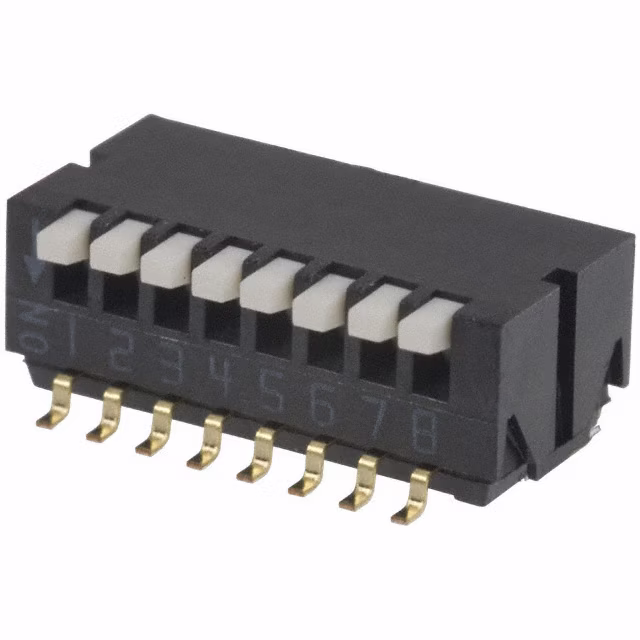

CHP-081TBSWITCH PIANO DIP SPST 0.1A 6V |
2,224 | - |
|
Datasheet | CHP | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
CHP-080TASWITCH PIANO DIP SPST 0.1A 6V |
1,663 | - |
|
Datasheet | CHP | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHP-080TBSWITCH PIANO DIP SPST 0.1A 6V |
4,641 | - |
|
Datasheet | CHP | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
RTE0300G04SWITCH ROTARY DIP SP3T 0.1A 30V |
1,216 | - |
|
Datasheet | RTE | Tape & Reel (TR) | Obsolete | SP3T | 3 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
SDA09H1SBDRSWITCH SLIDE DIP SPST 100MA 5VDC |
3,160 | - |
|
Datasheet | SDA | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 5VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.215" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
97C02RTSWITCH SLIDE DIP SPST 0.025A 24V |
3,149 | - |
|
Datasheet | 97 | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
RDS3-4S-1065-1-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V |
1,269 | - |
|
Datasheet | RDS3-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.437" (11.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1065-1-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V |
3,895 | - |
|
Datasheet | RDS6-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.437" (11.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1-5435802-6SWITCH PIANO DIP SPST 0.025A 24V |
2,672 | - |
|
Datasheet | 7000 | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
MDG201STTRANSFER DIP SWITCH MDG |
4,674 | - |
|
Datasheet | MDG | Bulk | Active | DPST-NO/NC | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.303" (7.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
DIP Switches FAQ
What DIP Switches components can I source from EGOO?
You can browse available DIP Switches product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DIP Switches parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
