DIP Switches
Compare the current DIP Switches Switches selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADF03SASWITCH SLIDE DIP SPST 0.025A 24V |
4,415 | - |
|
Datasheet | ADF | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA02SSWITCH PIANO DIP SPST 0.025A 24V |
4,718 | - |
|
Datasheet | ADPA | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
GDS06STRSWITCH SLIDE DIP SPST 0.025A 24V |
3,618 | - |
|
Datasheet | GDS | Tape & Reel (TR) | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
5435668-5SWITCH ROCKER DIP SPST |
4,306 | - |
|
Datasheet | 7100 | Tape & Reel (TR) | Active | SPST | 6 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | No | - | - |
|
|
ADF09SWITCH SLIDE DIP SPST 0.025A 24V |
2,826 | - |
|
Datasheet | ADF | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
3-1571999-9SWITCH PIANO DIP SPST |
3,467 | - |
|
Datasheet | ADP | Tape & Reel (TR) | Active | SPST | 10 | - | - | Piano | Raised | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
3-1825059-5SWITCH STANDARD DIP SPST |
2,281 | - |
|
Datasheet | ADF | Tube | Active | SPST | 7 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
ADPA04SSWITCH PIANO DIP SPST 0.025A 24V |
2,458 | - |
|
Datasheet | ADPA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

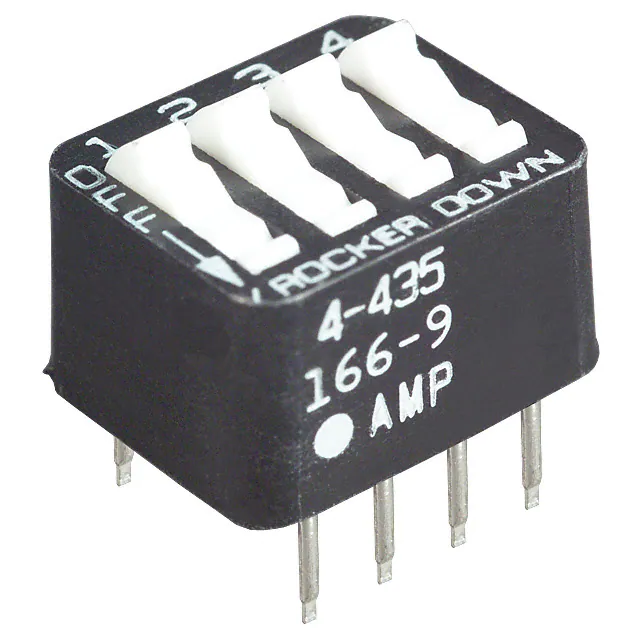

4-5435166-9SWITCH ROCKER DIP SPST |
3,016 | - |
|
Datasheet | 7000 | Tape & Reel (TR) | Active | SPST | 4 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
GDH04SATR04SWITCH SLIDE DIP SPST 0.025A 24V |
4,761 | - |
|
Datasheet | GDH | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
DIP Switches FAQ
How can I narrow the current DIP Switches selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DIP Switches parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
