DIP Switches
Browse available DIP Switches components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDTCR16S1RSWITCH ROTARY DIP HEX 0.15A 42V |
4,807 | - |
|
Datasheet | RDT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.264" (6.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
BPA09BSWITCH PIANO DIP SPST 0.1A 5V |
2,037 | - |
|
Datasheet | BPA | Tube | Active | SPST | 9 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
RD07B16CGRSW ROTARY DIP HEX COMP 0.1A 50V |
2,764 | - |
|
Datasheet | RD07 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.344" (8.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD07B4CGRSW ROTARY DIP BCD COMP 0.1A 50V |
2,711 | - |
|
Datasheet | RD07 | Tape & Reel (TR) | Active | BCD Complement | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.344" (8.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RDS-10S-7229-C-ASMT-TRSWITCH ROTARY DIP BCD 0.1A 50V |
4,262 | - |
|
Datasheet | RDS-7229-ASMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-16S-7229-C-ASMT-TRSWITCH ROTARY DIP HEX 0.1A 50V |
4,179 | - |
|
Datasheet | RDS-7229-ASMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-16S-7229-A-ASMT-TRSWITCH ROTARY DIP HEX 0.1A 50V |
3,109 | - |
|
Datasheet | RDS-7229-ASMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-10S-7229-A-ASMT-TRSWITCH ROTARY DIP BCD 0.1A 50V |
2,008 | - |
|
Datasheet | RDS-7229-ASMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-4S-7229-A-ASMT-TRSWITCH ROTARY DIP BCD 0.1A 50V |
3,713 | - |
|
Datasheet | RDS-7229-ASMT | Tape & Reel (TR) | Active | BCD | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-4S-7229-C-ASMT-TRSWITCH ROTARY DIP BCD 0.1A 50V |
3,542 | - |
|
Datasheet | RDS-7229-ASMT | Tape & Reel (TR) | Active | BCD | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
KAC06LGGTSWITCH PIANO DIP SPST 0.025A 24V |
1,571 | - |
|
Datasheet | KAC | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.201" (5.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CES-0602CSWITCH SLIDE DIP SPST 0.1A 6V |
4,231 | - |
|
Datasheet | CES | Bulk | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

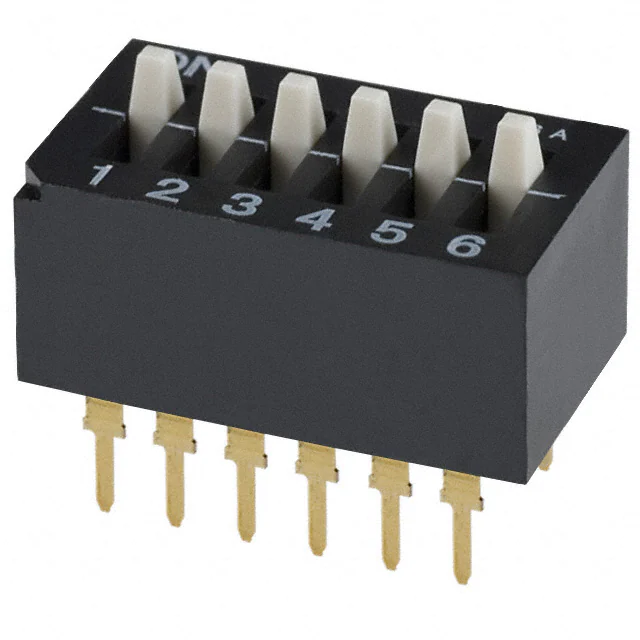

CES-0602MCSWITCH SLIDE DIP SPST 0.1A 6V |
3,441 | - |
|
Datasheet | CES | Tape & Box (TB) | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CVS-04TB-1SWITCH SLIDE DIP SPST 0.1A 6V |
3,515 | - |
|
Datasheet | CVS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
|
GDP08SSWITCH PIANO DIP SPST 0.025A 24V |
2,251 | - |
|
Datasheet | GDP | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
CHS-04MA1SWITCH SLIDE DIP SPST 0.1A 6V |
3,709 | - |
|
Datasheet | CHS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-04MB1SWITCH SLIDE DIP SPST 0.1A 6V |
2,794 | - |
|
Datasheet | CHS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
SD10H1BSWITCH SLIDE DIP SPST 0.1A 25V |
1,841 | - |
|
Datasheet | SD | Tube | Active | SPST | 10 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
97R06SRTSWITCH SLIDE DIP SPST 0.025A 24V |
3,827 | - |
|
Datasheet | 97 | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
97C08RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,612 | - |
|
Datasheet | 97 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
DIP Switches FAQ
What DIP Switches components can I source from EGOO?
You can browse available DIP Switches product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DIP Switches parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
