DIP Switches

Compare the current DIP Switches Switches selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.

For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Number of Positions	Current Rating (Amps)	Voltage Rating	Actuator Type	Actuator Level	Contact Material	Contact Finish	Height Above Board	Mounting Type	Termination Style	Pitch	Washable	Features	Operating Temperature
TDP08H0SBD1 SWITCH PIANO DIP SPST 0.025A 24V C&K	1,593	-	RFQ	Datasheet	TDP	Tube	Active	SPST	8	25mA	24VDC	Piano	Flush, Recessed	Copper Alloy	Gold	0.161" (4.10mm)	Surface Mount, Right Angle	Gull Wing	0.050" (1.27mm), Half	No	-	-40°C ~ 85°C
SDA09H1SBD SWITCH SLIDE DIP SPST 0.025A 24V C&K	888	-	RFQ	Datasheet	SDA	Tube	Active	SPST	9	25mA	24VDC	Slide (Standard)	Raised	Beryllium Copper	Gold	0.214" (5.45mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C
SDA05H0SB SWITCH SLIDE DIP SPST 0.025A 24V C&K	513	-	RFQ	Datasheet	SDA	Tube	Active	SPST	5	25mA	24VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.175" (4.45mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
SD06H0B SWITCH SLIDE DIP SPST 0.1A 25V C&K	220	-	RFQ	Datasheet	SD	Tube	Active	SPST	6	100mA	25VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.178" (4.52mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
TDP04H0SBD1 SWITCH PIANO DIP SPST 0.025A 24V C&K	482	-	RFQ	Datasheet	TDP	Tube	Active	SPST	4	25mA	24VDC	Piano	Flush, Recessed	Copper Alloy	Gold	0.161" (4.10mm)	Surface Mount, Right Angle	Gull Wing	0.050" (1.27mm), Half	No	-	-40°C ~ 85°C
BD12 SWITCH SLIDE DIP SPST 0.1A 5V C&K	521	-	RFQ	Datasheet	BD	Tube	Active	SPST	12	100mA	5VDC	Slide (Standard)	Raised	Phosphor Bronze	Gold	0.297" (7.54mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	-	-40°C ~ 85°C
SDA05H0SBD SWITCH SLIDE DIP SPST 0.025A 24V C&K	240	-	RFQ	Datasheet	SDA	Tube	Active	SPST	5	25mA	24VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.175" (4.45mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C
SDA10H1BD SWITCH SLIDE DIP SPST 0.025A 24V C&K	217	-	RFQ	Datasheet	SDA	Tube	Active	SPST	10	25mA	24VDC	Slide (Standard)	Raised	Beryllium Copper	Gold	0.228" (5.80mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C
SD02H0SB SWITCH SLIDE DIP SPST 0.1A 25V C&K	2,574	-	RFQ	Datasheet	SD	Tube	Active	SPST	2	100mA	25VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.170" (4.33mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C

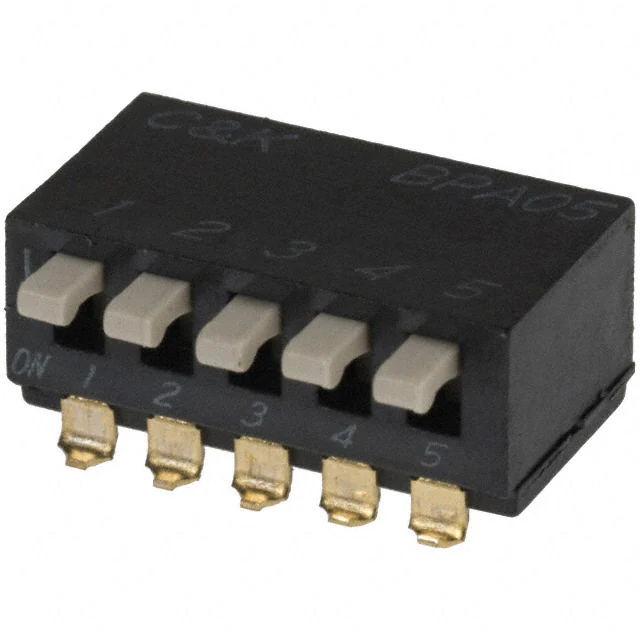

BPA05SB SWITCH PIANO DIP SPST 0.1A 5V C&K	1,507	-	RFQ	Datasheet	BPA	Tube	Active	SPST	5	100mA	5VDC	Piano	Raised	Beryllium Copper	Gold	0.274" (6.95mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	Yes	-	-20°C ~ 85°C

DIP Switches FAQ

How can I narrow the current DIP Switches selection?

Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.

Can EGOO help source hard-to-find or obsolete DIP Switches parts?

Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.

Can I request a quotation for a BOM or small-batch requirement?

Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.

What information should I provide when requesting a quote?

Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
