DIP Switches
Browse available DIP Switches components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

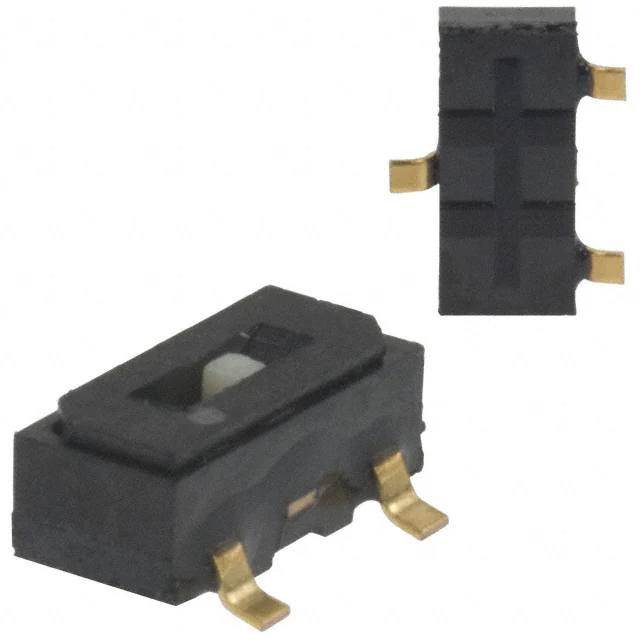

CAS-120TBSWITCH SLIDE SPDT 100MA 6V |
9,173 | - |
|
Datasheet | CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | Tape Seal | -40°C ~ 85°C |
.jpg "218-4LPST")
|
218-4LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
21,267 |
1+：$1.28000 10+：$1.08500 75+：$0.92053 150+：$0.86873 300+：$0.82040 525+：$0.78415 1050+：$0.74290 2550+：$0.69602 5025+：$0.66457 |
|
Datasheet | 218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg "219-10LPST")
|
219-10LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,872 | - |
|
Datasheet | 219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
1825058-7SWITCH SLIDE DIP SPST 0.1A 24V |
1,653 | - |
|
Datasheet | ADE | Tube | Active | SPST | 4 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
.jpg "218-6LPST")
|
218-6LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
8,268 |
1+：$1.38000 10+：$1.16700 55+：$1.01582 110+：$0.95855 275+：$0.88847 550+：$0.84025 1045+：$0.79946 2530+：$0.74945 5005+：$0.71563 |
|
Datasheet | 218 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

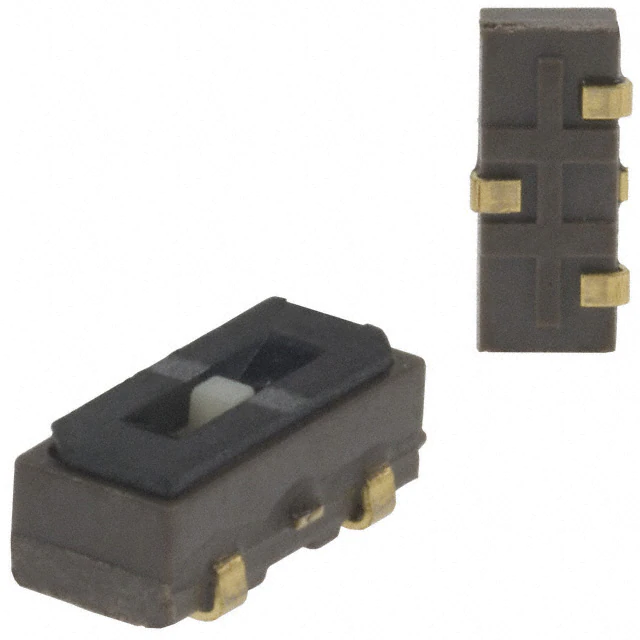

CJS-1201TASWITCH SLIDE SPDT 100MA 6V |
8,729 | - |
|
Datasheet | CJS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | Tape Seal | -40°C ~ 85°C |
|
218-4LPSTJSWITCH DIP SLIDE SPST 25MA 24V |
6,778 |
1+：$1.35000 10+：$1.14300 75+：$0.96920 150+：$0.91467 300+：$0.86383 525+：$0.82575 1050+：$0.78244 2550+：$0.73327 5025+：$0.70031 |
|
Datasheet | 218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-12STSWITCH SLIDE DIP SPST 0.05A 24V |
8,015 |
1+：$1.64000 15+：$1.34000 30+：$1.26600 105+：$1.14038 255+：$1.05969 510+：$1.00225 1005+：$0.95109 2505+：$0.89015 5010+：$0.84980 |
|
Datasheet | 206 | Tube | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
KAE01SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
26,414 | - |
|
Datasheet | KAE | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
KAE01LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
2,366 | - |
|
Datasheet | KAE | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
218-4LPSTJRSWITCH SLIDE DIP SPST 0.025A 24V |
8,139 | - |
|
Datasheet | 218 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
KJ04RTRSWITCH DIP SLIDE SPST 25MA 24V |
2,477 |
1+：$1.50000 10+：$1.26800 25+：$1.17720 100+：$1.04890 250+：$0.97224 500+：$0.91944 |
|
Datasheet | KJ | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
1825059-1SWITCH DIP SLIDE SPST 25MA 24V |
275 |
1+：$1.22000 10+：$1.03900 60+：$0.89800 120+：$0.84742 300+：$0.78547 540+：$0.74902 1020+：$0.71268 2520+：$0.66662 5040+：$0.63571 |
|
Datasheet | ADF | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

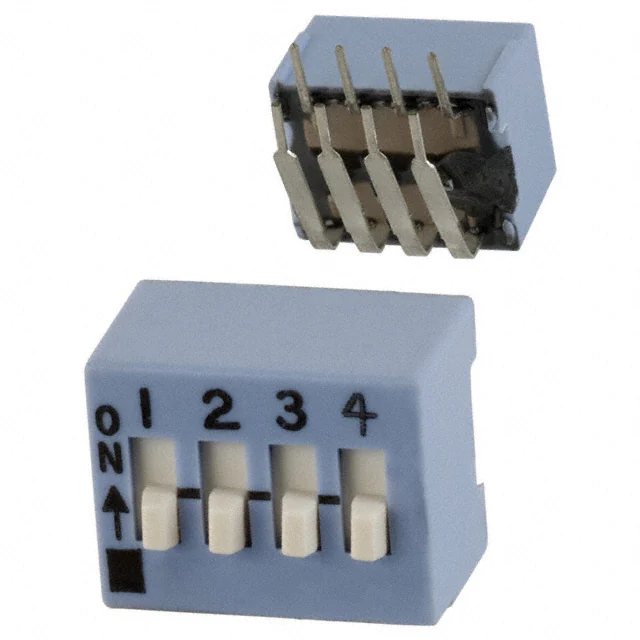

206-4RASTSWITCH SLIDE DIP SPST 0.05A 24V |
1,399 | - |
|
Datasheet | 206RA | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

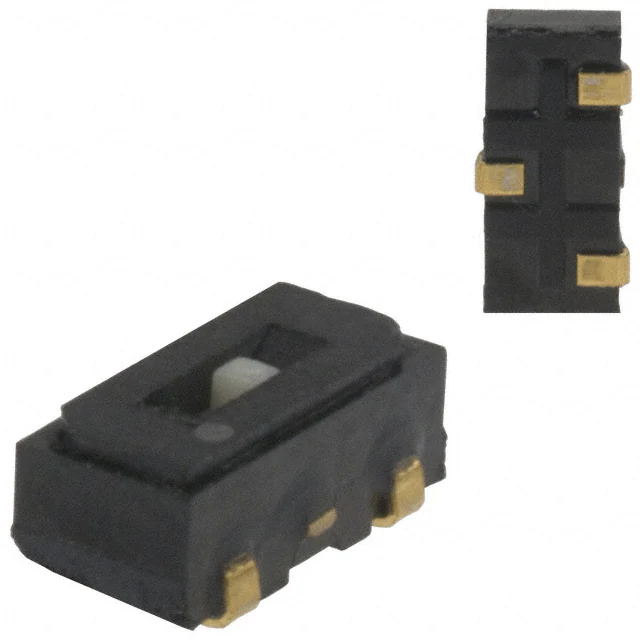

CAS-120TASWITCH SLIDE SPDT 100MA 6V |
29,583 | - |
|
Datasheet | CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | Tape Seal | -40°C ~ 85°C |
|
|
219-10LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,114 | - |
|
Datasheet | 219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

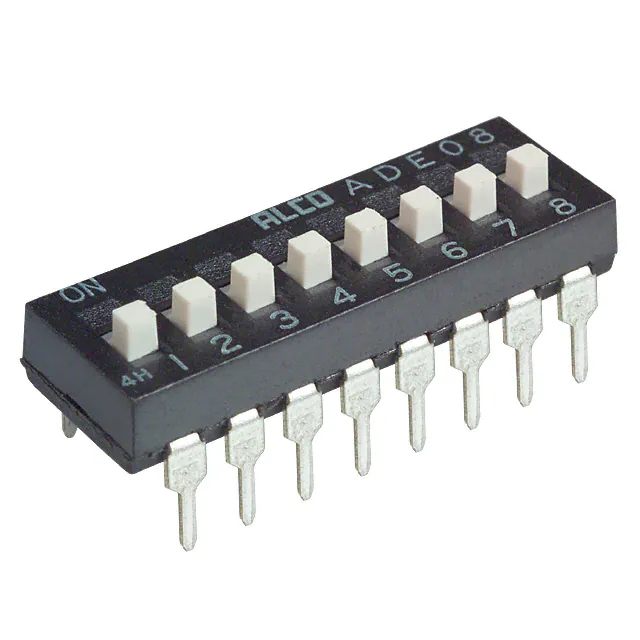

1825057-7SWITCH SLIDE DIP SPST 0.1A 24V |
83,771 | - |
|
Datasheet | ADE | Tube | Active | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
218-8LPSTJSWITCH SLIDE DIP SPST 0.025A 24V |
9,925 | - |
|
Datasheet | 218 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
218-8LPSTRSWITCH SLIDE DIP SPST 0.025A 24V |
2,802 | - |
|
Datasheet | 218 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
204-121STSWITCH SLIDE DIP SPDT 0.05A 24V |
2,699 |
1+：$1.86000 10+：$1.57200 75+：$1.33067 150+：$1.25607 300+：$1.18700 525+：$1.13552 1050+：$1.07720 2550+：$1.01133 5025+：$0.96739 |
|
Datasheet | 204 | Tube | Active | SPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
DIP Switches FAQ
What DIP Switches components can I source from EGOO?
You can browse available DIP Switches product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DIP Switches parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
