Electric Double Layer Capacitors (EDLC), Supercapacitors
Compare the current Electric Double Layer Capacitors (EDLC), Supercapacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XVM-259R2425-RCAP MODULE 4.17F 259.2V |
2 | - |
|
Datasheet | XVM-259 | Bulk | Active | 4.17 F | -5%, +20% | 259.2 V | 310mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module, Screw Terminals | - | 21.654" L x 10.472" W (550.00mm x 266.00mm) | 2.705" (68.70mm) | -40°C ~ 65°C |
|
|
XLM-62R1137B-TCAP 130F 0%, +20% 62.1V CHAS MNT |
6 | - |
|
Datasheet | XLM | Bulk | Active | 130 F | 0%, +20% | 62.1 V | 6.7mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module | - | 24.996" L x 6.937" W (634.90mm x 176.20mm) | 6.862" (174.30mm) | -40°C ~ 65°C |
|
|
XVM-259R2635-RCAP MODULE 6.25F 259.2V |
2 | - |
|
Datasheet | XVM-259 | Bulk | Active | 6.25 F | -5%, +20% | 259.2 V | 250mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module, Screw Terminals | - | 21.654" L x 10.472" W (550.00mm x 266.00mm) | 3.689" (93.70mm) | -40°C ~ 65°C |
|

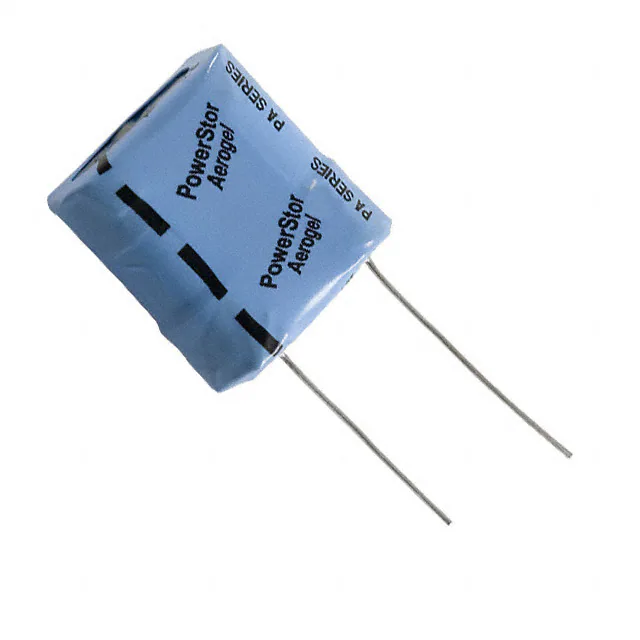

PA-5R0V474-RCAP 470MF -20% +80% 5V T/H |
0 | - |
|
Datasheet | PA | Bulk | Obsolete | 470 mF | -20%, +80% | 5 V | 200mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.209" (5.30mm) | 0.839" L x 0.433" W (21.30mm x 11.00mm) | 0.906" (23.00mm) | -25°C ~ 70°C |
|
XVM-16R2656-RELECTRIC DOUBLE LAYER CAPACITOR, |
2 | - |
|
Datasheet | XVM | Bulk | Active | 65 F | 0%, +20% | 16.2 V | 22mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module | - | 9.291" L x 1.803" W (236.00mm x 45.80mm) | 3.051" (77.50mm) | -40°C ~ 65°C |
|
PM-5R0H104-RCAP 100MF -20% +80% 5V T/H |
0 | - |
|
Datasheet | PM | Bulk | Active | 100 mF | -20%, +80% | 5 V | 1.25Ohm @ 1kHz | 1000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can, Horizontal | 0.287" (7.30mm) | 0.512" L x 0.445" W (13.00mm x 11.30mm) | 0.236" (6.00mm) | -40°C ~ 60°C |
|
PHV-5R4V474-RCAP 470MF -10% +30% 5.4V T/H |
0 | - |
|
Datasheet | PHV | Bulk | Active | 470 mF | -10%, +30% | 5.4 V | 400mOhm @ 100Hz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.465" (11.80mm) | 0.681" L x 0.354" W (17.30mm x 9.00mm) | 0.571" (14.50mm) | -40°C ~ 65°C |
|
HB1840-2R5606-RCAP 60F -10% +30% 2.5V T/H |
0 | - |
|
Datasheet | HB | Bulk | Active | 60 F | -10%, +30% | 2.5 V | 25mOhm @ 100Hz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.728" Dia (18.50mm) | 1.654" (42.00mm) | -25°C ~ 70°C |
|
XV3560-2R7407-RCAP 400F -5% +10% 2.7V T/H |
0 | - |
|
Datasheet | XV | Bulk | Active | 400 F | -5%, +10% | 2.7 V | 3.2mOhm | 1500 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.480" (63.00mm) | -40°C ~ 65°C |
|
XLR-48R6167-RCAP 166F 0% +20% 48.6V CHAS MNT |
0 | - |
|
Datasheet | XLR | Bulk | Active | 166 F | 0%, +20% | 48.6 V | 5mOhm | 1500 Hrs @ 65°C | Screw Terminals | User Defined | Module | - | 16.516" L x 7.657" W (419.50mm x 194.50mm) | 6.905" (175.40mm) | -40°C ~ 65°C |
Electric Double Layer Capacitors (EDLC), Supercapacitors FAQ
How can I narrow the current Electric Double Layer Capacitors (EDLC), Supercapacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Electric Double Layer Capacitors (EDLC), Supercapacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
