CPLDs (Complex Programmable Logic Devices)
Compare the current CPLDs (Complex Programmable Logic Devices) Embedded selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CY37512VP208-66NXIIC CPLD 512MC 20NS 208QFP |
3,734 | - |
|
Datasheet | Ultra37000™ | 208-BFQFP | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 512 | - | 165 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
CY37512VP208-83NXCIC CPLD 512MC 15NS 208QFP |
4,735 | - |
|
Datasheet | Ultra37000™ | 208-BFQFP | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 15 ns | 3V ~ 3.6V | - | 512 | - | 165 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
CY39100V208B-200NTXCIC CPLD 1536MC 7.5NS 208QFP |
3,473 | - |
|
Datasheet | Delta 39K™ ISR™ | 208-BFQFP | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 7.5 ns | 2.5V, 3.3V | - | 1536 | 144000 | 136 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
.jpg "CY37032VP44-100JXI")
|
CY37032VP44-100JXIIC CPLD 32MC 12NS 44PLCC |
3,189 | - |
|
Datasheet | Ultra37000™ | 44-LCC (J-Lead) | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 12 ns | 3V ~ 3.6V | - | 32 | - | 37 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.61x16.61) |
|
CY37256P256-154BGCIC CPLD 256MC 7.5NS 292BGA |
1,069 | - |
|
Datasheet | Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 7.5 ns | 4.75V ~ 5.25V | - | 256 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|
|
CY37256VP256-100BGCIC CPLD 256MC 12NS 292BGA |
4,975 | - |
|
Datasheet | Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 12 ns | 3V ~ 3.6V | - | 256 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|

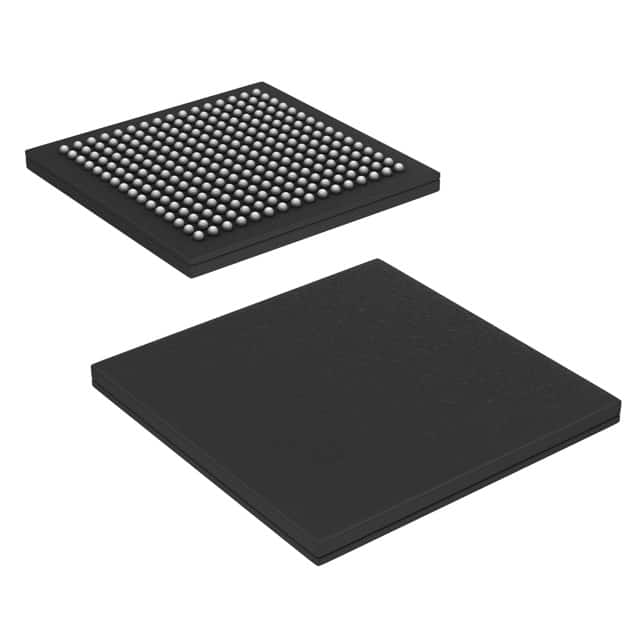

CY37256VP256-66BBCIC CPLD 256MC 20NS 256FBGA |
4,670 | - |
|
Datasheet | Ultra37000™ | 256-LBGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 256 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
CY37256VP256-66BBIIC CPLD 256MC 20NS 256FBGA |
3,427 | - |
|
Datasheet | Ultra37000™ | 256-LBGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 256 | - | 197 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
CY37512P256-100BGIIC CPLD 512MC 12NS 292BGA |
2,122 | - |
|
Datasheet | Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 12 ns | 4.5V ~ 5.5V | - | 512 | - | 197 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|
|
CY37512VP256-66BGCIC CPLD 512MC 20NS 292BGA |
3,332 | - |
|
Datasheet | Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 512 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
CPLDs (Complex Programmable Logic Devices) FAQ
How can I narrow the current CPLDs (Complex Programmable Logic Devices) selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
