CPLDs (Complex Programmable Logic Devices)
Compare the current CPLDs (Complex Programmable Logic Devices) Embedded selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

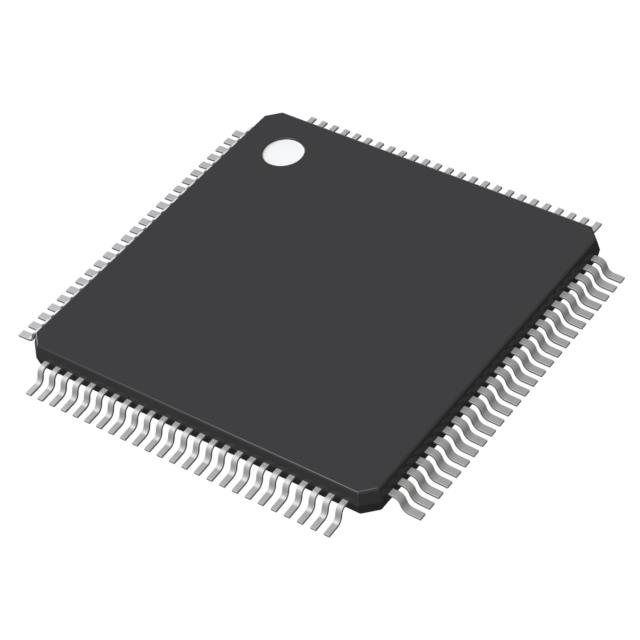

EPM7064STC100-6EE PLD, 6NS, 64-CELL, CMOS, PQFP |
347 | - |
|
Datasheet | MAX® 7000S | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 6 ns | 4.75V ~ 5.25V | 4 | 64 | 1250 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM1270T144C5IC CPLD 980MC 6.2NS 144TQFP |
160 | - |
|
Datasheet | MAX® II | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 6.2 ns | 2.5V, 3.3V | 1270 | 980 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
EPM3064ATI44-10NIC CPLD 64MC 10NS 44TQFP |
2,641 | - |
|
Datasheet | MAX® 3000A | 44-TQFP | Tray | Obsolete | Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | 1250 | 34 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
EPM3256AFI256-10IC CPLD 256MC 10NS 256FBGA |
2,492 | - |
|
Datasheet | MAX® 3000A | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 16 | 256 | 5000 | 161 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
EPM7160ELC84-12EE PLD, 12NS, 160-CELL, CMOS, PQ |
749 | - |
|
Datasheet | MAX® 7000 | 84-LCC (J-Lead) | Tube | Active | Not Verified | EE PLD | 12 ns | 4.75V ~ 5.25V | 10 | 160 | 3200 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
5M570ZT144I5NIC CPLD 440MC 9NS 144TQFP |
2,175 | - |
|
Datasheet | MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 114 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
5M570ZF256C4NIC CPLD 440MC 9NS 256FBGA |
100 | - |
|
Datasheet | MAX® V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 159 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
EPM240T100C4NIC CPLD 192MC 4.7NS 100TQFP |
3,820 | - |
|
Datasheet | MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
5M1270ZF256C4NIC CPLD 980MC 6.2NS 256FBGA |
1,486 | - |
|
Datasheet | MAX® V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 211 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
5M1270ZF324I5NIC CPLD 980MC 6.2NS 324FBGA |
2,892 | - |
|
Datasheet | MAX® V | 324-LBGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 271 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 324-FBGA (19x19) |
CPLDs (Complex Programmable Logic Devices) FAQ
How can I narrow the current CPLDs (Complex Programmable Logic Devices) selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
