CPLDs (Complex Programmable Logic Devices)
Compare the current CPLDs (Complex Programmable Logic Devices) Embedded selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

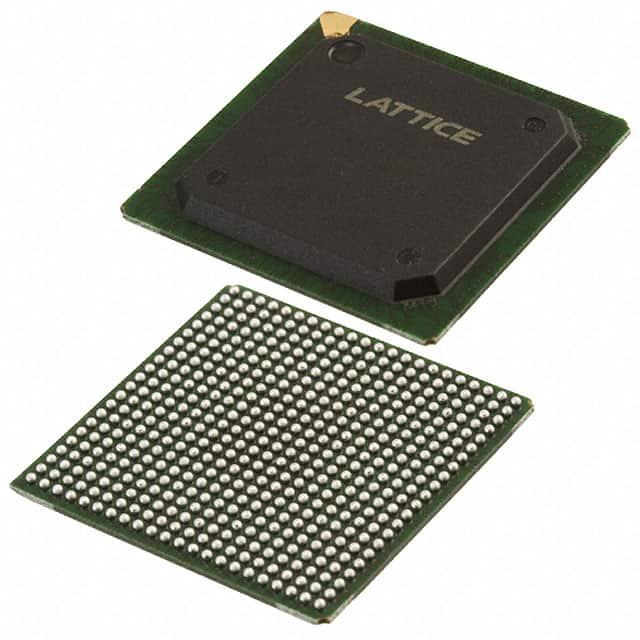

LC5512MV-75F484CIC CPLD 512MC 7.5NS 484FPBGA |
3,975 | - |
|
Datasheet | ispXPLD® 5000MV | 484-BBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 512 | - | 253 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 484-FPBGA (23x23) |
|
|
LC5512MV-75F484IIC CPLD 512MC 7.5NS 484FPBGA |
3,893 | - |
|
Datasheet | ispXPLD® 5000MV | 484-BBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 512 | - | 253 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 484-FPBGA (23x23) |
|

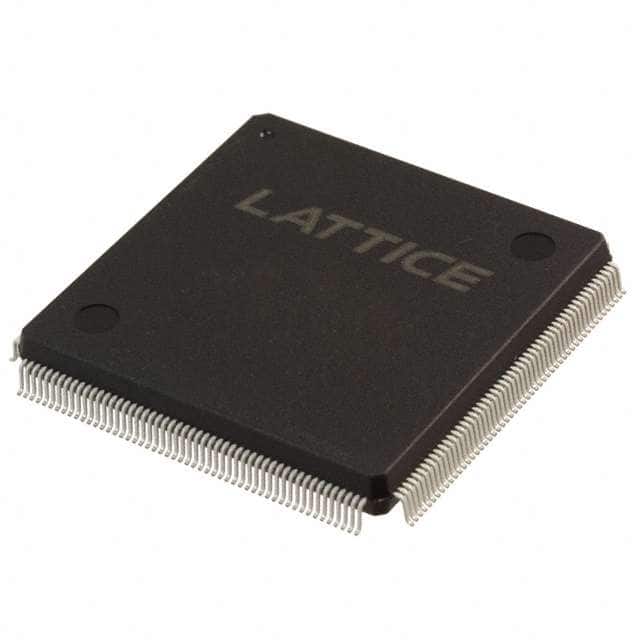

LC5512MV-75Q208CIC CPLD 512MC 7.5NS 208QFP |
2,538 | - |
|
Datasheet | ispXPLD® 5000MV | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 512 | - | 149 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
LC5512MV-75Q208IIC CPLD 512MC 7.5NS 208QFP |
4,015 | - |
|
Datasheet | ispXPLD® 5000MV | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 512 | - | 149 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 208-PQFP (28x28) |
|
LC5768MB-5F256CIC CPLD 768MC 5NS 256FPBGA |
3,458 | - |
|
Datasheet | ispXPLD® 5000MB | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.3V ~ 2.7V | 24 | 768 | - | 193 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
LC5768MB-75F256IIC CPLD 768MC 7.5NS 256FPBGA |
4,246 | - |
|
Datasheet | ispXPLD® 5000MB | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.3V ~ 2.7V | 24 | 768 | - | 193 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
LC5768MV-5F256CIC CPLD 768MC 5NS 256FPBGA |
1,858 | - |
|
Datasheet | ispXPLD® 5000MV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 24 | 768 | - | 193 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
LC5768MV-5F484CIC CPLD 768MC 5NS 484FPBGA |
3,553 | - |
|
Datasheet | ispXPLD® 5000MV | 484-BBGA | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 24 | 768 | - | 317 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 484-FPBGA (23x23) |
|
|
LC5768MV-75F256CIC CPLD 768MC 7.5NS 256FPBGA |
3,192 | - |
|
Datasheet | ispXPLD® 5000MV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 24 | 768 | - | 193 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
LC5768MV-75F256IIC CPLD 768MC 7.5NS 256FPBGA |
4,299 | - |
|
Datasheet | ispXPLD® 5000MV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 24 | 768 | - | 193 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
CPLDs (Complex Programmable Logic Devices) FAQ
How can I narrow the current CPLDs (Complex Programmable Logic Devices) selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
