CPLDs (Complex Programmable Logic Devices)
Compare the current CPLDs (Complex Programmable Logic Devices) Embedded selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M4A5-64/32-12VNIIC CPLD 64MC 12NS 44TQFP |
302 | - |
|
Datasheet | ispMACH® 4A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 12 ns | 4.5V ~ 5.5V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
MACH130-15JCIC CPLD 64MC 15NS 84PLCC |
2,542 | - |
|
Datasheet | MACH | 84-LCC (J-Lead) | Bulk | Active | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | 4 | 64 | - | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.29x29.29) |
|
MACH210A-7VCIC CPLD 64MC 7.5NS 44TQFP |
887 | - |
|
Datasheet | Mach® 2 | 44-TQFP | Bulk | Active | Not Verified | EE PLD | 7.5 ns | 4.75V ~ 5.25V | 64 | 64 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
ISPLSI2064VL-135LT100IC CPLD 64MC 7.5NS 44TQFP |
1,118 | - |
|
Datasheet | ispLSI ® 2064VL | 44-LQFP | Bulk | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 2.3V ~ 2.7V | 16 | 64 | 2000 | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|

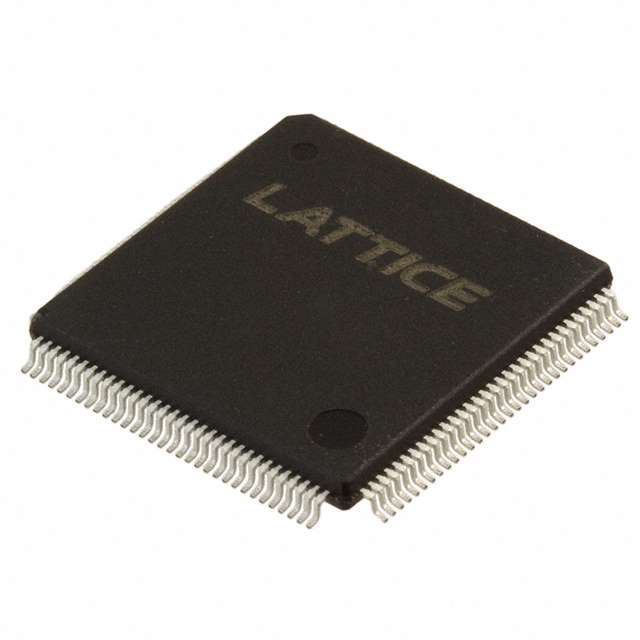

ISPLSI 5128VE-180LT128IC CPLD 128MC 5NS 128TQFP |
1,928 | - |
|
Datasheet | ispLSI® 5000VE | 128-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 4 | 128 | 6000 | 96 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 128-TQFP (14x14) |
|
ISPLSI2032-150LT48IC CPLD 32MC 5.5NS 48TQFP |
6,042 | - |
|
Datasheet | ispLSI® 2000 | 48-TQFP | Bulk | Active | Not Verified | In System Programmable | 5.5 ns | 4.75V ~ 5.25V | 8 | 32 | 1000 | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-TQFP (7x7) |
|
ISPLSI2064-100LTIIN SYSTEM PROGRAMMABLE HIGH DEN |
400 | - |
|
Datasheet | * | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - |
|
ISPPAC30-01SIANALOG CIRCUIT, 1 FUNC PDSO24 |
1,644 | - |
|
Datasheet | ispPAC30 | 24-SOIC (0.295", 7.50mm Width) | Bulk | Active | Not Verified | In System Programmable | - | 4.75V ~ 5.25V | - | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 24-SOIC |
|
M5-128/104-10YC/1IC CPLD 128MC 10NS 144QFP |
1,096 | - |
|
Datasheet | Mach® 5 | 144-BQFP | Bulk | Active | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | - | 128 | - | 104 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-PQFP (28x28) |
|

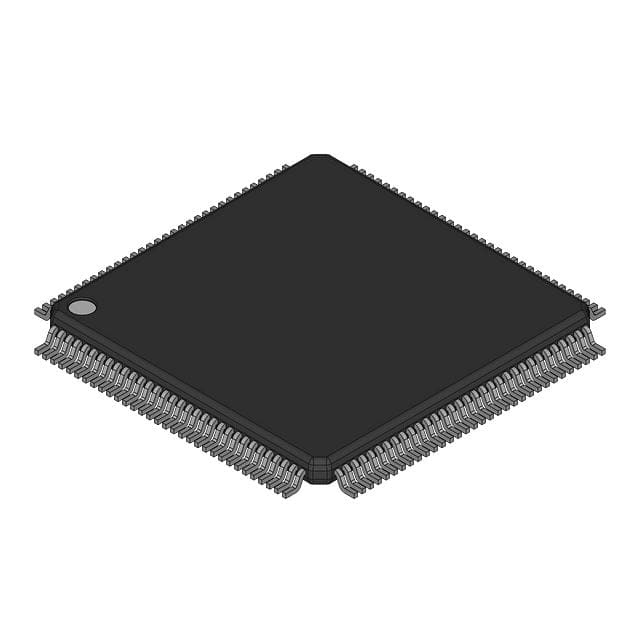

ISPLSI2096VL-135LT128IC CPLD 4MC 7.5NS 128TQFP |
898 | - |
|
Datasheet | ispLSI® 2000 | 128-LQFP | Bulk | Active | Not Verified | In System Programmable | 7.5 ns | 2.3V ~ 2.7V | 24 | 96 | 4000 | 96 | 0°C ~ 75°C (TA) | - | - | Surface Mount | 128-TQFP (14x14) |
CPLDs (Complex Programmable Logic Devices) FAQ
How can I narrow the current CPLDs (Complex Programmable Logic Devices) selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
