CPLDs (Complex Programmable Logic Devices)
Compare the current CPLDs (Complex Programmable Logic Devices) Embedded selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC4064V-5TN48IIC CPLD 64MC 5NS 48TQFP |
1,864 | - |
|
Datasheet | ispMACH® 4000V | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
LC4128V-75TN100CIC CPLD 128MC 7.5NS 100TQFP |
465 | - |
|
Datasheet | ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 8 | 128 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4256ZE-7TN100IIC CPLD 256MC 7.5NS 100TQFP |
244 | - |
|
Datasheet | ispMACH® 4000ZE | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 64 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4256ZE-7TN144IIC CPLD 256MC 7.5NS 144TQFP |
762 | - |
|
Datasheet | ispMACH® 4000ZE | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
LC4256V-75TN100CIC CPLD 256MC 7.5NS 100TQFP |
1,085 | - |
|
Datasheet | ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4256V-75TN144CIC CPLD 256MC 7.5NS 144TQFP |
292 | - |
|
Datasheet | ispMACH® 4000V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | - | 96 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
LC4256V-5TN144CIC CPLD 256MC 5NS 144TQFP |
3,863 | - |
|
Datasheet | ispMACH® 4000V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 16 | 256 | - | 96 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
LC4256V-3TN100CIC CPLD 256MC 3NS 100TQFP |
235 | - |
|
Datasheet | ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 3 ns | 3V ~ 3.6V | 16 | 256 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|

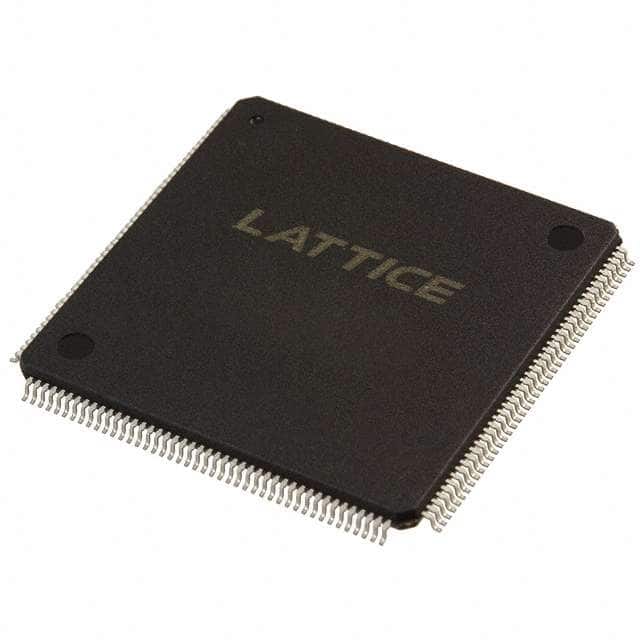

LC4384V-10TN176IIC CPLD 384MC 10NS 176TQFP |
145 | - |
|
Datasheet | ispMACH® 4000V | 176-LQFP | Tray | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 24 | 384 | - | 128 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 176-TQFP (24x24) |
|

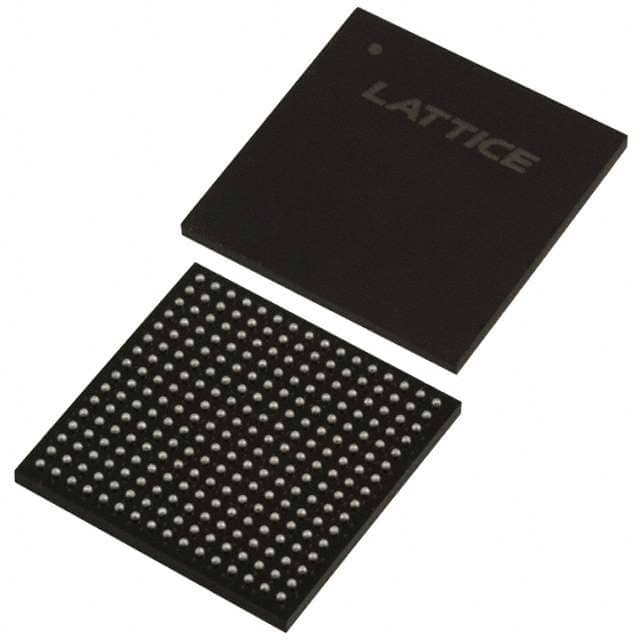

LC4256V-3FTN256BCIC CPLD 256MC 3NS 256FTBGA |
464 | - |
|
Datasheet | ispMACH® 4000V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 3 ns | 3V ~ 3.6V | 16 | 256 | - | 160 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FTBGA (17x17) |
CPLDs (Complex Programmable Logic Devices) FAQ
How can I narrow the current CPLDs (Complex Programmable Logic Devices) selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
