CPLDs (Complex Programmable Logic Devices)
Browse available CPLDs (Complex Programmable Logic Devices) components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5M160ZT100I5NIC CPLD 128MC 7.5NS 100TQFP |
161 | - |
|
Datasheet | MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 160 | 128 | - | 79 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4064V-10TN48IIC CPLD 64MC 10NS 48TQFP |
1,512 | - |
|
Datasheet | ispMACH® 4000V | 48-LQFP | Tray | Active | Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
5M240ZM68C5NIC CPLD 192MC 7.5NS 68MBGA |
216 | - |
|
Datasheet | MAX® V | 68-TFBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 240 | 192 | - | 52 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 68-MBGA (5x5) |
|
LC4064V-75TN100CIC CPLD 64MC 7.5NS 100TQFP |
1,984 | - |
|
Datasheet | ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4064V-10TN100IIC CPLD 64MC 10NS 100TQFP |
711 | - |
|
Datasheet | ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
5M570ZT100C5NIC CPLD 440MC 9NS 100TQFP |
3,095 | - |
|
Datasheet | MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 74 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
5M570ZT144C5NIC CPLD 440MC 9NS 144TQFP |
167 | - |
|
Datasheet | MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 114 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
LAMXO256C-3TN100EIC CPLD 128MC 4.9NS 100TQFP |
660 | - |
|
Datasheet | LA-MachXO | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 4.9 ns | 1.71V ~ 3.465V | - | 128 | - | 78 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4128ZC-75TN100CIC CPLD 128MC 7.5NS 100TQFP |
599 | - |
|
Datasheet | ispMACH® 4000Z | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
ATF1508AS-7AX100IC CPLD 128MC 7.5NS 100TQFP |
323 | - |
|
Datasheet | ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 4.75V ~ 5.25V | - | 128 | - | 80 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4064V-75TN100EIC CPLD 64MC 7.5NS 100TQFP |
246 | - |
|
Datasheet | ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
5M1270ZT144C5NIC CPLD 980MC 6.2NS 144TQFP |
3,428 | - |
|
Datasheet | MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 114 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|

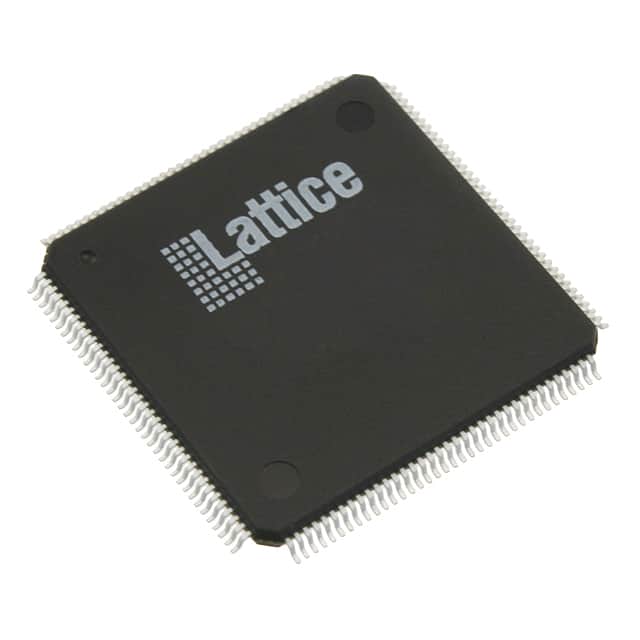

LC4128ZE-7TN144IIC CPLD 128MC 7.5NS 144TQFP |
135 | - |
|
Datasheet | ispMACH® 4000ZE | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
ATF1508AS-10AU100IC CPLD 128MC 10NS 100TQFP |
548 | - |
|
Datasheet | ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 128 | - | 80 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|

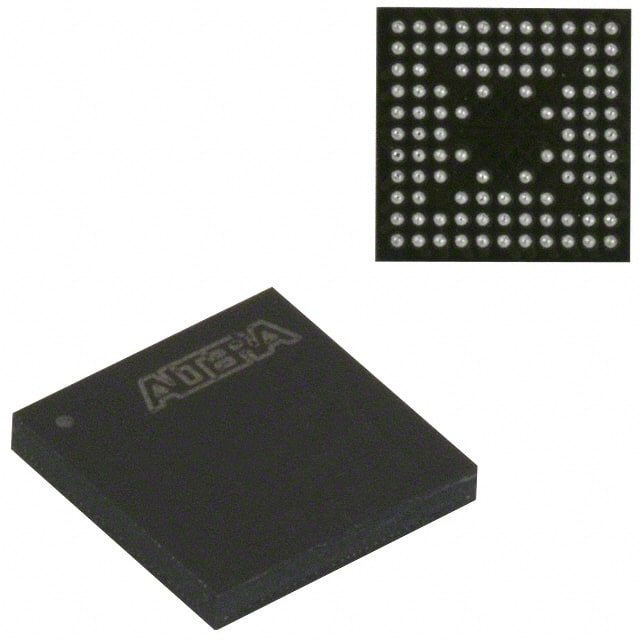

EPM240M100C5NIC CPLD 192MC 4.7NS 100MBGA |
869 | - |
|
Datasheet | MAX® II | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|

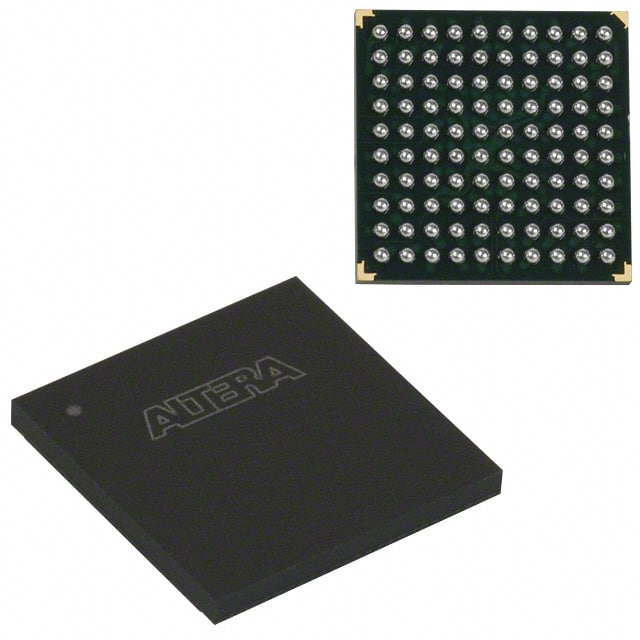

EPM240F100C5NIC CPLD 192MC 4.7NS 100FBGA |
816 | - |
|
Datasheet | MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
5M570ZM100I5NIC CPLD 440MC 9NS 100MBGA |
118 | - |
|
Datasheet | MAX® V | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 74 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
|
LC4064V-5TN48IIC CPLD 64MC 5NS 48TQFP |
1,864 | - |
|
Datasheet | ispMACH® 4000V | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
|
5M1270ZT144C4NIC CPLD 980MC 6.2NS 144TQFP |
165 | - |
|
Datasheet | MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 114 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
5M1270ZT144I5NIC CPLD 980MC 6.2NS 144TQFP |
158 | - |
|
Datasheet | MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 114 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
CPLDs (Complex Programmable Logic Devices) FAQ
What CPLDs (Complex Programmable Logic Devices) components can I source from EGOO?
You can browse available CPLDs (Complex Programmable Logic Devices) product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete CPLDs (Complex Programmable Logic Devices) parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
