Microprocessors
Compare the current Microprocessors Embedded selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Core Processor | Number of Cores/Bus Width | Speed | Co-Processors/DSP | RAM Controllers | Graphics Acceleration | Display & Interface Controllers | Ethernet | SATA | USB | Voltage - I/O | Operating Temperature | Grade | Qualification | Security Features | Mounting Type | Supplier Device Package | Additional Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSC9131NXN7KHKBIC MPU QORIQ 800MHZ 520FCBGA |
4,059 | - |
|
Datasheet | 520-FBGA, FCBGA | QorIQ Qonverge BSC | Tray | Obsolete | PowerPC e500 | 1 Core, 32-Bit | 800MHz | Signal Processing; SC3850, Security; SEC 4.4 | DDR3, DDR3L | No | - | 10/100/1000Mbps (2) | - | USB 2.0 (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 105°C | - | - | Boot Security, Cryptography, Random Number Generator | Surface Mount | 520-FCBGA (21x21) | AIC, DUART, I2C, MMC/SD, SPI, USIM |
|
|
FS32V232BMN1VUBIC MPU FS32V23 800MHZ 621FCPBGA |
2,878 | - |
|
Datasheet | 621-FBGA, FCBGA | FS32V23 | Tray | Obsolete | ARM® Cortex®-A53, Cortex®-M4 | 4 Core, 64-Bit/1 Core, 32-Bit | 800MHz | Multimedia; NEON™ MPE | LPDDR2, DDR3, DDR3L | No | LCD, Video | GbE | - | - | 1.8V | -40°C ~ 125°C (TA) | - | - | AES, ARM TZ, Boot, CSE, OCOTP_CTRL, System JTAG | Surface Mount | 621-FCPBGA (17x17) | I2C, SPI, PCI, UART |
|

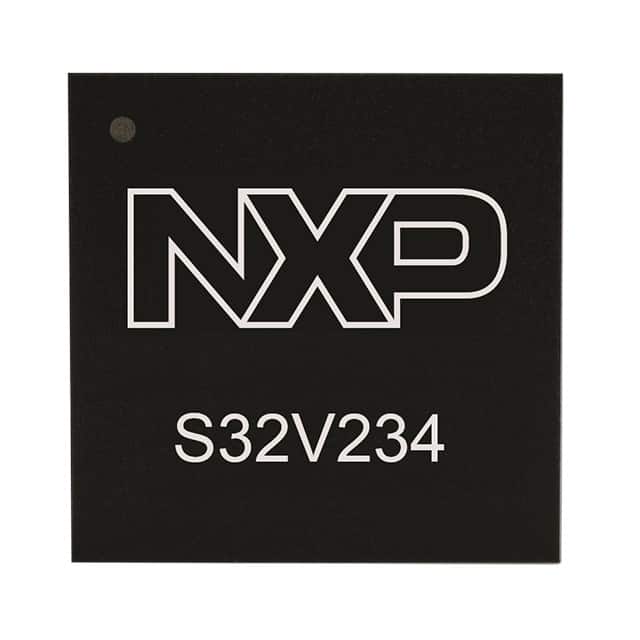

FS32V234BJN1VUBIC MPU FS32V23 800MHZ 621FCPBGA |
1,213 | - |
|
Datasheet | 621-FBGA, FCBGA | FS32V23 | Tray | Obsolete | ARM® Cortex®-A53, ARM® Cortex®-M4 | 4 Core, 64-Bit/1 Core, 32-Bit | 800MHz | Multimedia; NEON™ MPE | DDR3, DDR3L, LPDDR2 | Yes | APEX2-CL, DCU (2D-ACE), ISP, LCD, MIPICSI2, Video, VIU | 1Gbps | - | - | 1V, 1.8V, 3.3V | -40°C ~ 105°C (TA) | - | - | AES, ARM TZ, Boot, CSE, OCOTP_CTRL, System JTAG | Surface Mount | 621-FCPBGA (17x17) | I2C, SPI, PCI, UART |
|
|
FS32V234BMN1VUBIC MPU FS32V23 800MHZ 621FCPBGA |
4,431 | - |
|
Datasheet | 621-FBGA, FCBGA | FS32V23 | Tray | Obsolete | ARM® Cortex®-A53, ARM® Cortex®-M4 | 4 Core, 64-Bit/1 Core, 32-Bit | 800MHz | Multimedia; NEON™ MPE | DDR3, DDR3L, LPDDR2 | Yes | APEX2-CL, DCU (2D-ACE), ISP, LCD, MIPICSI2, Video, VIU | 1Gbps | - | - | 1V, 1.8V, 3.3V | -40°C ~ 105°C (TA) | - | - | AES, ARM TZ, Boot, CSE, OCOTP_CTRL, System JTAG | Surface Mount | 621-FCPBGA (17x17) | I2C, SPI, PCI, UART |
|
|
FS32V234CON1VUBIC MPU FS32V23 1GHZ 621FCPBGA |
1,518 | - |
|
Datasheet | 621-FBGA, FCBGA | FS32V23 | Tray | Obsolete | ARM® Cortex®-A53, ARM® Cortex®-M4 | 4 Core, 64-Bit/1 Core, 32-Bit | 1GHz | Multimedia; NEON™ MPE | DDR3, DDR3L, LPDDR2 | Yes | APEX2-CL, DCU (2D-ACE), ISP, LCD, MIPICSI2, Video, VIU | 1Gbps | - | - | 1V, 1.8V, 3.3V | -40°C ~ 105°C (TA) | - | - | AES, ARM TZ, Boot, CSE, OCOTP_CTRL, System JTAG | Surface Mount | 621-FCPBGA (17x17) | I2C, SPI, PCI, UART |
|

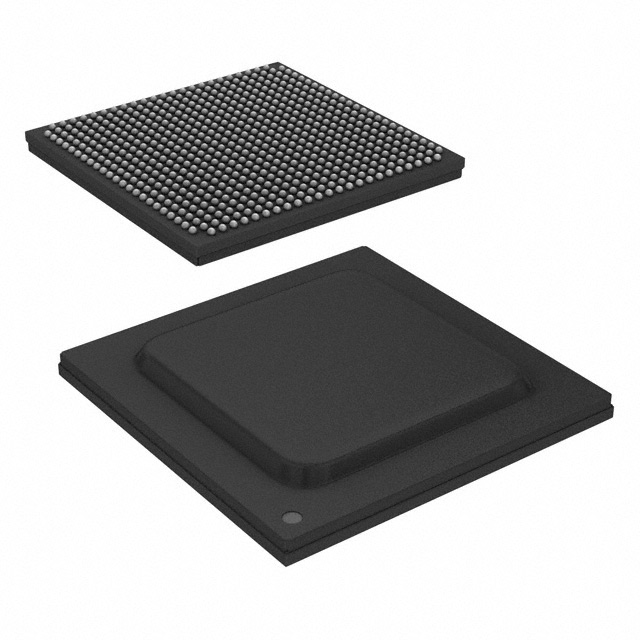

LS1043ASE7PQAIC MPU QORIQ 1.4GHZ 621FCPBGA |
1,296 | - |
|
Datasheet | 621-FBGA, FCBGA | QorIQ® Layerscape | Tray | Discontinued at Digi-Key | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.4GHz | - | DDR3L, DDR4 | No | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 + PHY (3) | - | 0°C ~ 105°C (TA) | - | - | ARM TZ, Boot Security | Surface Mount | 621-FCPBGA (21x21) | eMMC/SD/SDIO, I2C, SPI, UART |
|
MC7447AHX1333LBIC MPU MPC74XX 1.333GHZ 360BGA |
4,929 | - |
|
Datasheet | 360-BCBGA, FCCBGA | MPC74xx | Tray | Obsolete | PowerPC G4 | 1 Core, 32-Bit | 1.333GHz | Multimedia; SIMD | - | No | - | - | - | - | 1.8V, 2.5V | 0°C ~ 105°C | - | - | - | Surface Mount | 360-FCCBGA (25x25) | - |
|
|
MC7448VU800NDIC MPU MPC74XX 800MHZ 360FCCBGA |
3,756 | - |
|
Datasheet | 360-CBGA, FCCBGA | MPC74xx | Tray | Obsolete | PowerPC G4 | 1 Core, 32-Bit | 800MHz | Multimedia; SIMD | - | No | - | - | - | - | 1.5V, 1.8V, 2.5V | 0°C ~ 105°C | - | - | - | Surface Mount | 360-FCCBGA (25x25) | - |
|
|
FS32V234BLN1VUBIC MPU FS32V23 800MHZ 621FCPBGA |
2,701 | - |
|
Datasheet | 621-FBGA, FCBGA | FS32V23 | Tray | Obsolete | ARM® Cortex®-A53, ARM® Cortex®-M4 | 4 Core, 64-Bit/1 Core, 32-Bit | 800MHz | Multimedia; NEON™ MPE | DDR3, DDR3L, LPDDR2 | Yes | APEX2-CL, DCU (2D-ACE), ISP, LCD, MIPICSI2, Video, VIU | 1Gbps | - | - | 1V, 1.8V, 3.3V | -40°C ~ 105°C (TA) | - | - | AES, ARM TZ, Boot, CSE, OCOTP_CTRL, System JTAG | Surface Mount | 621-FCPBGA (17x17) | I2C, SPI, PCI, UART |
|
MCIMX6D5EYM10CEIC MPU I.MX6D 1.0GHZ 624FCPBGA |
3,525 | - |
|
Datasheet | 624-LFBGA, FCBGA | i.MX6D | Tray | Active | ARM® Cortex®-A9 | 2 Core, 32-Bit | 1.0GHz | Multimedia; NEON™ SIMD | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (4) | 1.8V, 2.5V, 2.8V, 3.3V | -20°C ~ 105°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-FCPBGA (21x21) | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
Microprocessors FAQ
How can I narrow the current Microprocessors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Microprocessors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
