Microprocessors
Browse available Microprocessors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Core Processor | Number of Cores/Bus Width | Speed | Co-Processors/DSP | RAM Controllers | Graphics Acceleration | Display & Interface Controllers | Ethernet | SATA | USB | Voltage - I/O | Operating Temperature | Grade | Qualification | Security Features | Mounting Type | Supplier Device Package | Additional Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KMC68MH360CAI25LIC MPU M683XX 25MHZ 240FQFP |
2,967 | - |
|
Datasheet | 240-BFQFP | M683xx | Box | Obsolete | CPU32+ | 1 Core, 32-Bit | 25MHz | Communications; CPM | DRAM | No | - | 10Mbps (1) | - | - | 5.0V | -40°C ~ 85°C (TA) | - | - | - | Surface Mount | 240-FQFP (32x32) | SCC, SMC, SPI |
|
AM3894CCYG135IC MPU SITARA 1.35GHZ 1031FCBGA |
3,154 | - |
|
Datasheet | 1031-BFBGA, FCBGA | Sitara™ | Tray | Last Time Buy | ARM® Cortex®-A8 | 1 Core, 32-Bit | 1.35GHz | Multimedia; NEON™ SIMD | DDR2, DDR3 | Yes | HDMI, HDVPSS | 10/100/1000Mbps (2) | SATA 3Gbps (1) | USB 2.0 + PHY (2) | 1.8V, 3.3V | 0°C ~ 95°C (TJ) | - | - | - | Surface Mount | 1031-FCBGA (25x25) | I2C, McASP, McBSP, SPI, SD/SDIO, UART |
|
MC68020FE16EIC MPU M680X0 166MHZ 132CQFP |
1,872 | - |
|
Datasheet | 132-BCQFP | M680x0 | Tray | Obsolete | 68020 | 1 Core, 32-Bit | 166MHz | - | - | No | - | - | - | - | 5.0V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 132-CQFP (24x24) | - |
|

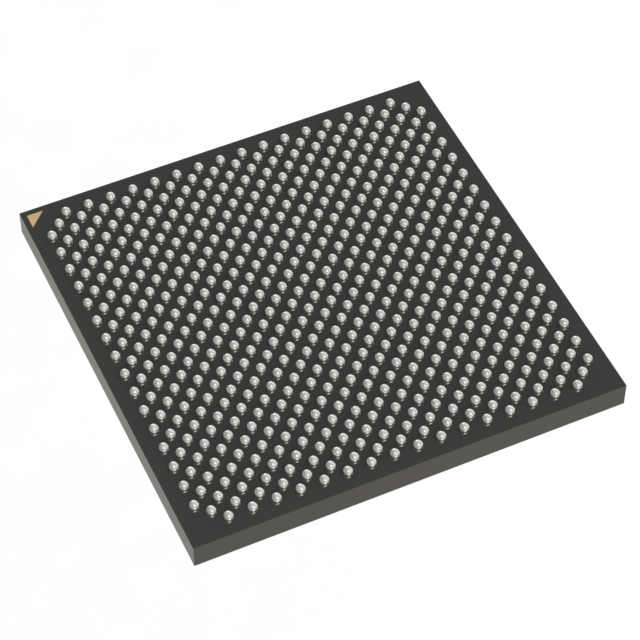

MIMX8QX5FVLFZACI.MX 8QUADXPLUS 21X21 |
2,896 | - |
|
Datasheet | 609-BFBGA | i.MX8Q | Tray | Active | ARM® Cortex®-A53, ARM® Cortex®-M4F | 3 Core, 64-Bit | 1.2GHz, 264MHz | Multimedia; NEON, Hi-Fi4 DSP | DDR3L SDRAM, LPDDR4 DRAM | Yes | LCD, LVDS, MIPI-CSI, MIPI-DSI | 10/100/1000Mbps (2) | - | USB 2.0 OTG + PHY (1), USB 3.0 OTG + PHY (1) | 1.8V, 2.5V, 3.3V | - | - | - | 3DES, A-HAB, ARM TZ, CAAM, DES, MD5, SHA, SNVS | Surface Mount | 609-FBGA (21x21) | CANbus, I2C, MMC/SD/SDIO, PCIe, QSPI, UART |
|
KMC68EN360VR25VLIC MPU M683XX 25MHZ 357BGA |
3,867 | - |
|
Datasheet | 357-BBGA | M683xx | Box | Obsolete | CPU32+ | 1 Core, 32-Bit | 25MHz | Communications; CPM | DRAM | No | - | 10Mbps (1) | - | - | 3.3V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 357-PBGA (25x25) | SCC, SMC, SPI |
|
R9A09G057H44GBG#BC0RZ/V2H CA55 QUAD ISP&GPU 19MM FU |
1,648 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MCIMX6QP6AVT8AAIC MPU I.MX6QP 852MHZ 624FCBGA |
3,638 | - |
|
Datasheet | 624-FBGA, FCBGA | i.MX6QP | Tray | Active | ARM® Cortex®-A9 | 4 Core, 32-Bit | 852MHz | Multimedia; NEON™ SIMD | LPDDR2, DDR3L, DDR3 | Yes | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | Surface Mount | 624-FCBGA (21x21) | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, S/PDIF, UART |
|

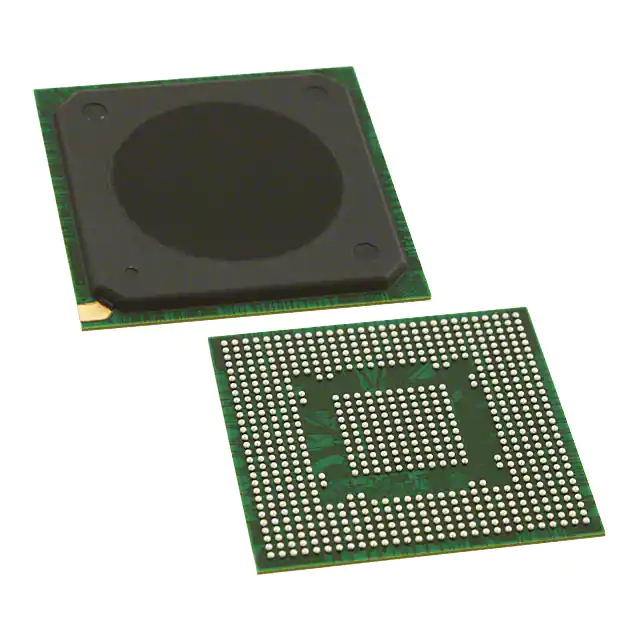

P1021PSE2HFBIC MPU Q OR IQ 800MHZ 689BGA |
4,248 | - |
|
Datasheet | 689-TePBGA II | QorIQ P1 | Tray | Obsolete | PowerPC e500v2 | 2 Core, 32-Bit | 800MHz | Communications; QUICC Engine, Security; SEC 3.3 | DDR2, DDR3 | No | - | 10/100/1000Mbps (3) | - | USB 2.0 + PHY (2) | - | 0°C ~ 125°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 689-PBGA-PGE | DUART, I2C, MMC/SD, SPI |
|
LS1026AXN8Q1AIC MPU QORIQ 1.6GHZ 780FCPBGA |
1,327 | - |
|
Datasheet | 780-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A72 | 2 Core, 64-Bit | 1.6GHz | - | DDR4 | - | - | 10GbE (2), 2.5GbE (1), 1GbE (4) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | -40°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 780-FCPBGA (23x23) | - |
|
T1013NSN7PQAIC MPU QORIQ T1 1.4GHZ 525FCPBGA |
4,889 | - |
|
Datasheet | 525-FBGA, FCBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 1 Core, 64-Bit | 1.4GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 525-FCPBGA (19x19) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
T1014NXE7KQAIC MPU QORIQ T1 1GHZ 780FBGA |
3,466 | - |
|
Datasheet | 780-FBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 1 Core, 64-Bit | 1GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 780-FBGA (23x23) | I2C, MMC/SD, PCIe, SPI, UART |
|
KMPC8377ECVRALGIC MPU MPC83XX 667MHZ PBGA689 |
1,663 | - |
|
Datasheet | 689-BBGA Exposed Pad | MPC83xx | Tray | Obsolete | PowerPC e300c4s | 1 Core, 32-Bit | 667MHz | Security; SEC 3.0 | DDR, DDR2 | No | - | 10/100/1000Mbps (2) | SATA 3Gbps (2) | USB 2.0 + PHY (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 125°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 689-TEPBGA II (31x31) | DUART, I2C, MMC/SD, PCI, SPI |
|
|
KMPC8378ECVRALGIC MPU MPC83XX 667MHZ PBGA689 |
4,916 | - |
|
Datasheet | 689-BBGA Exposed Pad | MPC83xx | Tray | Obsolete | PowerPC e300c4s | 1 Core, 32-Bit | 667MHz | Security; SEC 3.0 | DDR, DDR2 | No | - | 10/100/1000Mbps (2) | - | USB 2.0 + PHY (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 125°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 689-TEPBGA II (31x31) | DUART, I2C, MMC/SD, PCI, SPI |
|
|
T1014NXN7MQAIC MPU QORIQ T1 1.2GHZ 780FBGA |
2,593 | - |
|
Datasheet | 780-FBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 1 Core, 64-Bit | 1.2GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 780-FBGA (23x23) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
T1024NXN7KQAIC MPU QORIQ T1 1GHZ 780FBGA |
1,216 | - |
|
Datasheet | 780-FBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 2 Core, 64-Bit | 1GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 780-FBGA (23x23) | I2C, MMC/SD, PCIe, SPI, UART |
|
MPC8347EVVAJDIC MPU MPC83XX 533MHZ 672LBGA |
1,301 | - |
|
Datasheet | 672-LBGA | MPC83xx | Tray | Obsolete | PowerPC e300 | 1 Core, 32-Bit | 533MHz | Security; SEC | DDR | No | - | 10/100/1000Mbps (2) | - | USB 2.0 + PHY (2) | 2.5V, 3.3V | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 672-LBGA (35x35) | DUART, I2C, PCI, SPI |
|
|
R9A09G057H48GBG#BC0RZ/V2H CA55 QUAD ISP&GPU SECURE1 |
1,858 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MPC8360ECVVAJDGIC MPU MPC83XX 533MHZ 740TBGA |
4,387 | - |
|
Datasheet | 740-LBGA | MPC83xx | Tray | Obsolete | PowerPC e300 | 1 Core, 32-Bit | 533MHz | Communications; QUICC Engine, Security; SEC | DDR, DDR2 | No | - | 10/100/1000Mbps (1) | - | USB 1.x (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 740-TBGA (37.5x37.5) | DUART, HDLC, I2C, PCI, SPI, UART |
|
|
T1023NXE7KQAIC MPU QORIQ T1 1GHZ 525FCPBGA |
3,364 | - |
|
Datasheet | 525-FBGA, FCBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 2 Core, 64-Bit | 1GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 525-FCPBGA (19x19) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
T1023NXN7MQAIC MPU QORIQ T1 1.2GHZ 525FCPBGA |
2,659 | - |
|
Datasheet | 525-FBGA, FCBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 2 Core, 64-Bit | 1.2GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 525-FCPBGA (19x19) | I2C, MMC/SD, PCIe, SPI, UART |
Microprocessors FAQ
What Microprocessors components can I source from EGOO?
You can browse available Microprocessors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Microprocessors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
