EMI/RFI Filters (LC, RC Networks)
Browse available EMI/RFI Filters (LC, RC Networks) components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

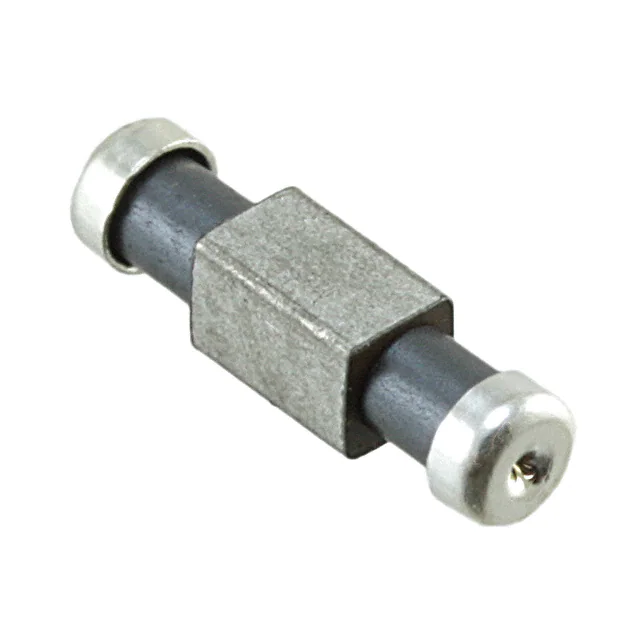

NFE61HT330U2A9LFILTER LC(T) 33PF SMD |
4,775 | - |
|
Datasheet | EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 33pF | No | -55°C ~ 125°C | - | 100V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
EMI7204MUTAGFILTER LC(PI) 17NH/12PF ESD SMD |
1,584 | - |
|
Datasheet | EMI720xMU | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 4 | 250MHz (Cutoff) | -23dB @ 800MHz ~ 6GHz | 10 | 30 mA | L = 17nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.022" (0.55mm) |
|
|
NFE61HT332Z2A9LFILTER LC(T) 3300PF SMD |
8,695 | - |
|
Datasheet | EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 3300pF | No | -55°C ~ 125°C | - | 100V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
|
NFE61HT681D2A9LFILTER LC(T) 680PF SMD |
3,968 | - |
|
Datasheet | EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 680pF | No | -55°C ~ 125°C | - | 100V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
.jpg "EMI7208MUTAG")
|
EMI7208MUTAGFILTER LC(PI) 17NH/12PF ESD SMD |
3,781 | - |
|
Datasheet | EMI720xMU | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 8 | 250MHz (Cutoff) | -23dB @ 800MHz ~ 6GHz | 10 | 30 mA | L = 17nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.130" L x 0.053" W (3.30mm x 1.35mm) | 0.022" (0.55mm) |
|

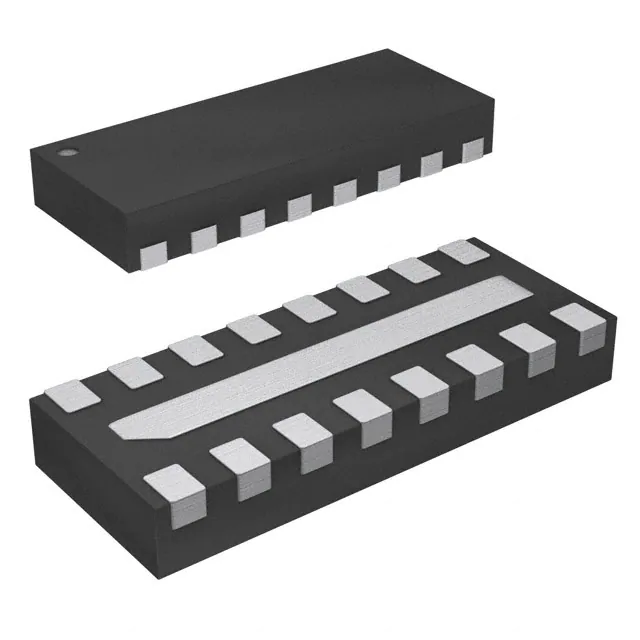

ECLAMP2398P.TCTFILTER LC(PI) 19NH/12PF ESD SMD |
8,896 | - |
|
Datasheet | EClamp™ | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 8 | 150MHz (Cutoff) | 30dB @ 800MHz ~ 2.7GHz | 18 | - | L = 19nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|
PMR209MC6100M100R30FILTER RC 100 OHM/0.1UF TH |
1,805 | - |
|
Datasheet | PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
ECLAMP2454P.TCTFILTER LC(PI) 28NH/12PF ESD SMD |
11,916 | - |
|
Datasheet | EMIClamp® | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 4 | 155MHz (Cutoff) | 40dB @ 800MHz ~ 2.7GHz | 33 | - | L = 28nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.026" (0.65mm) |
|

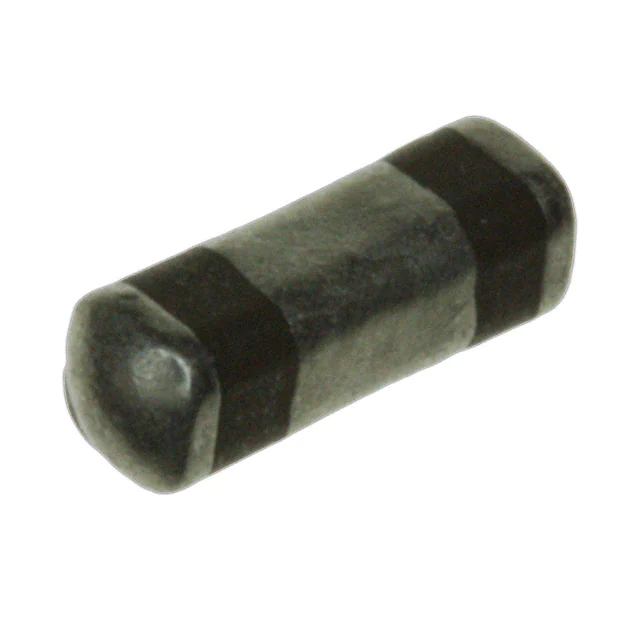

4700-005MLFFILTER LC(PI) 0.1UH/1000PF SMD |
141 | - |
|
Datasheet | 4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 40dB @ 100MHz | - | 10 A | L = 0.1µH, C = 1000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
ECLAMP2410P.TCTFILTER RC(PI) 45 OHM/12PF SMD |
22,738 | - |
|
Datasheet | EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | - | - | 45 | - | R = 45Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|

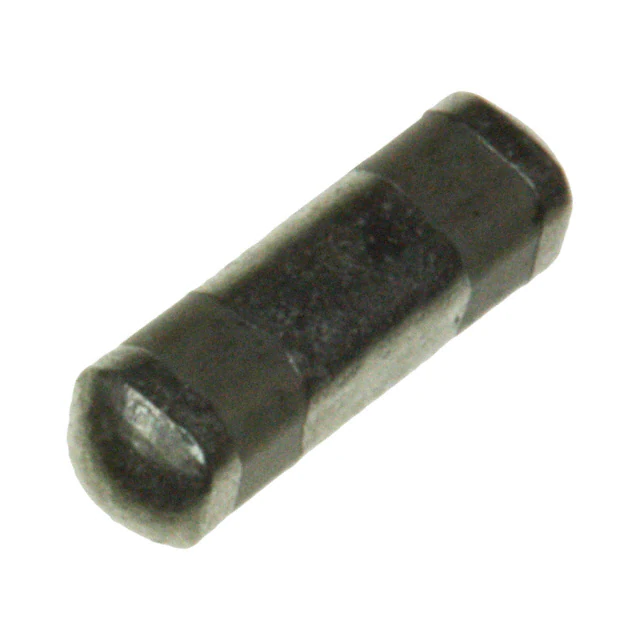

4700-006MLFFILTER LC(PI) 0.1UH/100PF SMD |
2,874 | - |
|
Datasheet | 4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 3dB @ 100MHz | - | 10 A | L = 0.1µH, C = 100pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
ECLAMP2458P.TCTFILTER LC(PI) 28NH/12PF ESD SMD |
3,759 | - |
|
Datasheet | EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 8 | 155MHz (Cutoff) | 40dB @ 800MHz ~ 2.7GHz | 33 | - | L = 28nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|

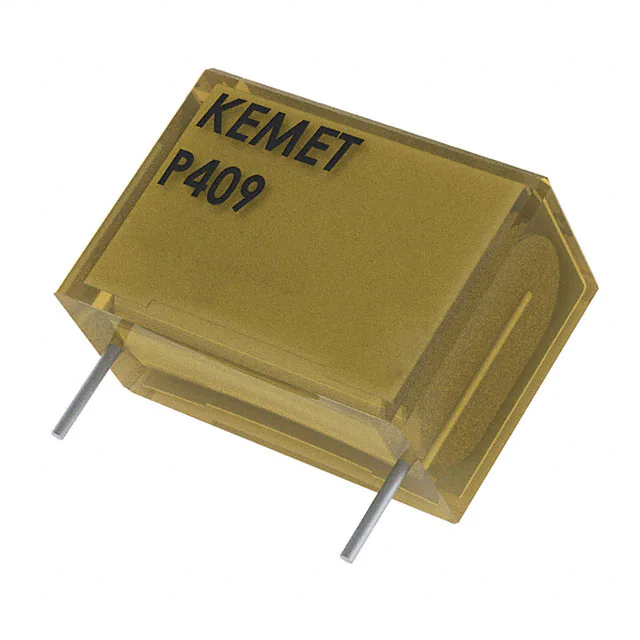

P409CE104M275AH101FILTER RC 100 OHM/0.1UF TH |
864 | - |
|
Datasheet | P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
BNX016-01FILTER LC TH |
5,259 | - |
|
Datasheet | EMIFIL®, BNX | Block, 4 Lead | Bulk | Active | Low Pass | 5th | LC | 2 | - | 40dB @ 100kHz ~ 1GHz | - | 15 A | - | No | -40°C ~ 125°C | Data Lines for Mobile Devices | 25V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.335" (8.50mm) |
|
|
BNX012-01FILTER LC TH |
2,896 | - |
|
Datasheet | EMIFIL®, BNX | Block, 4 Lead | Bulk | Active | Low Pass | 5th | LC | 2 | - | 40dB @ 1MHz ~ 1GHz | - | 15 A | - | No | -40°C ~ 125°C | Data Lines for Mobile Devices | 50V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.335" (8.50mm) |
,-3-PC-Pad.jpg "SBSPP1000101MCT")
|
SBSPP1000101MCTFILTER LC(PI) 100PF SMD |
2,990 | - |
|
Datasheet | SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 7dB @ 100MHz | - | 1 A | C = 100pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000221MCTFILTER LC(PI) 220PF SMD |
2,358 | - |
|
Datasheet | SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 14dB @ 100MHz | - | 1 A | C = 220pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000332MXTFILTER LC(PI) 3300PF SMD |
43,981 | - |
|
Datasheet | SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 3300pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000472MXTFILTER LC(PI) 4700PF SMD |
27,420 | - |
|
Datasheet | SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 4700pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000222MXTFILTER LC(PI) 2200PF SMD |
8,606 | - |
|
Datasheet | SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 2200pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
