EMI/RFI Filters (LC, RC Networks)
Browse available EMI/RFI Filters (LC, RC Networks) components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECLAMP2455P.TCTFILTER RC(PI) ESD SMD |
8,812 | - |
|
Datasheet | EMIClamp® | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | RC (Pi) | 3 | - | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.026" (0.65mm) |
|
PMR209MC6100M047R30FILTER RC 47 OHM/0.1UF TH |
146 | - |
|
Datasheet | PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|

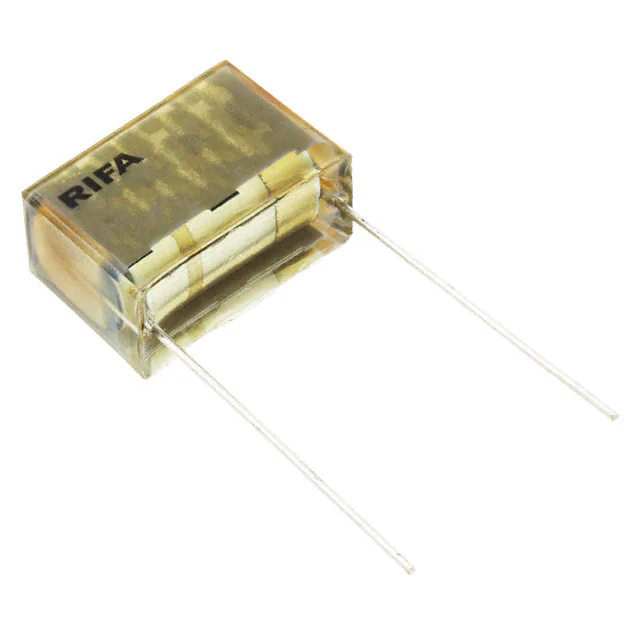

PMR209MC6100M470R30FILTER RC 470 OHM/0.1UF TH |
836 | - |
|
Datasheet | PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 470 | - | R = 470Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
ECLAMP2410PQTCTFILTER RC(PI) 45 OHM/15PF SMD |
7,410 | - |
|
Datasheet | EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | - | - | 45 | - | R = 45Ohms, C = 15pF | Yes | -40°C ~ 125°C | - | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|
|
PMR209MC6220M100R30FILTER RC 100 OHM/0.22UF TH |
611 | - |
|
Datasheet | PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
PMR209MB5470M047R30FILTER RC 47 OHM/0.047UF TH |
3,244 | - |
|
Datasheet | PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
|
PMR209MC6220M022R30FILTER RC 22 OHM/0.22UF TH |
863 | - |
|
Datasheet | PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
ECLAMP2357NQTLTFILTER LC(PI) 100 OHM/12PF SMD |
15,094 | - |
|
Datasheet | EMIClamp® | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | RC (Pi) | 6 | - | 30dB @ 1.8GHz | 100 | - | R = 100Ohms, C = 12pF | Yes | -40°C ~ 125°C | - | - | Automotive | AEC-Q100 | Surface Mount | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.028" (0.70mm) |
|
4700-056MLFFILTER LC(PI) 0.1UH/5000PF SMD |
3,673 | - |
|
Datasheet | 4700 | Pill, Round | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | L = 0.1µH, C = 5000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.085" Dia x 0.315" L (2.16mm x 8.00mm) | - |
|
|
PMR209MC6220M047R30FILTER RC 47 OHM/0.22UF TH |
846 | - |
|
Datasheet | PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
PMR209MC6100M022R30FILTER RC 22 OHM/0.1UF TH |
923 | - |
|
Datasheet | PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
P409CE104M275AH220FILTER RC 22 OHM/0.1UF TH |
156 | - |
|
Datasheet | P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
PMR210MB5220M100R30FILTER RC 100 OHM/0.022UF TH |
2,621 | - |
|
Datasheet | PMR210 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.022µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
|
PMR209MB5470M100R30FILTER RC 100 OHM/0.047UF TH |
1,151 | - |
|
Datasheet | PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
,-3-PC-Pad.jpg "SBSPP1000470MCT")
|
SBSPP1000470MCTFILTER LC(PI) 47PF SMD |
2,820 | - |
|
Datasheet | SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 4dB @ 100MHz | - | 1 A | C = 47pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000471MCTFILTER LC(PI) 470PF SMD |
6,168 | - |
|
Datasheet | SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 25dB @ 100MHz | - | 1 A | C = 470pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
BNX012H01FILTER LC TH |
384 | - |
|
Datasheet | EMIFIL®, BNX | Block, 4 Lead | Bulk | Active | Low Pass | 5th | LC | 2 | - | 40dB @ 1MHz ~ 1GHz | - | 15 A | - | No | -55°C ~ 125°C | - | 50V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.335" (8.50mm) |
|
BNX027H01LFILTER LC 22UF SMD |
684 | - |
|
Datasheet | EMIFIL®, BNX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 40kHz ~ 1GHz | 0.00043 | 20 A | C = 22µF | No | -55°C ~ 125°C | - | 16V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.146" (3.70mm) |
|
254M06QD100FILTER RC 100 OHM/0.25UF TH |
5,386 | - |
|
Datasheet | Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | - | - | - | 100 | - | R = 100Ohms, C = 0.25µF | No | -55°C ~ 85°C | General Purpose | 600V | - | - | Through Hole | 1.449" L x 0.417" W (36.80mm x 10.60mm) | 0.748" (19.00mm) |
,-3-PC-Pad.jpg "SBSGP5000472MXT")
|
SBSGP5000472MXTFILTER LC(PI) 4700PF SMD |
2,171 | - |
|
Datasheet | SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 4700pF | No | - | General Purpose | 500V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.64mm) |
