Analog to Digital Converters (ADCs) Evaluation Boards
Browse available Analog to Digital Converters (ADCs) Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

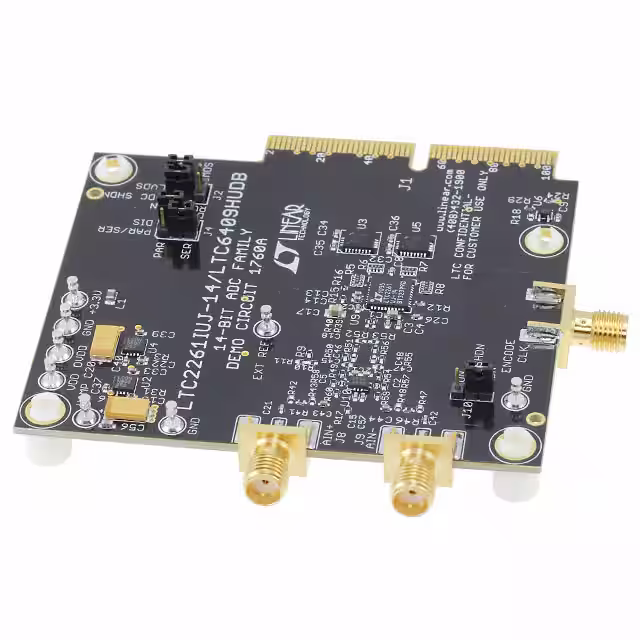

DC1760AEVAL BOARD FOR LTC2261-14 |
3,029 | - |
|
Datasheet | - | Box | Active | 1 | 14 | 125M | Parallel | 2Vpp | 209mW @ 125MSPS | LTC2261-14, LTC6409 | Board(s) |
|

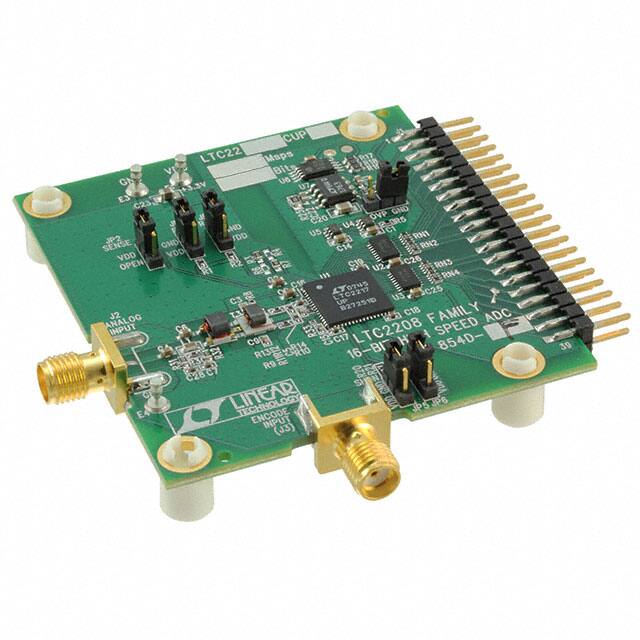

DC854D-FEVAL BOARD FOR LTC2217 |
2,422 | - |
|
Datasheet | - | Box | Active | 1 | 16 | 105M | Parallel | 2.25Vpp | 1.45W @ 105MSPS | LTC2217 | Board(s) |
|
ADS9212EVMADS9212 EVALUATION MODULE |
4,300 | - |
|
Datasheet | - | Box | Active | 2 | 18 | 8M | USB | - | - | ADS9212 | Board(s) |
|
|
EV-ISO-4224-FMCZEVAL BOARD REFERENCE DESIGN |
1,018 | - |
|
Datasheet | - | Box | Active | 1 | 24 | 2M | SPI | ±750mV, ±2.25V, ±9V, ±15V | 446mW @ 2MSPS | ADAQ4224 | Board(s) |
|
|
EVAL-ADAQ4224-FMCZEVAL BOARD |
4,742 | - |
|
Datasheet | - | Box | Active | 1 | 24 | 2M | SPI | ±750mV, ±2.25V, ±9V, ±15V | 446mW @ 2MSPS | ADAQ4224 | Board(s) |
|
DC854D-GEVAL BOARD FOR LTC2216 |
3,308 | - |
|
Datasheet | - | Box | Active | 1 | 16 | 80M | Parallel | 2.25Vpp | 1.24W @ 80MSPS | LTC2216 | Board(s) |
|
DC1620A-CBOARD DEMO 16BIT 80MSPS LTC2183 |
2,022 | - |
|
Datasheet | - | Bulk | Active | 2 | 16 | 80M | Parallel | 1 ~ 2Vpp | 346mW @ 80MSPS | LTC2183 | Board(s) |
|
DC1620A-RBOARD DEMO 25MSPS LTC2140-12 |
1,845 | - |
|
Datasheet | - | Bulk | Active | 2 | 12 | 25M | Parallel | 1 ~ 2Vpp | 155mW @ 25MSPS | LTC2140-12 | Board(s) |
|

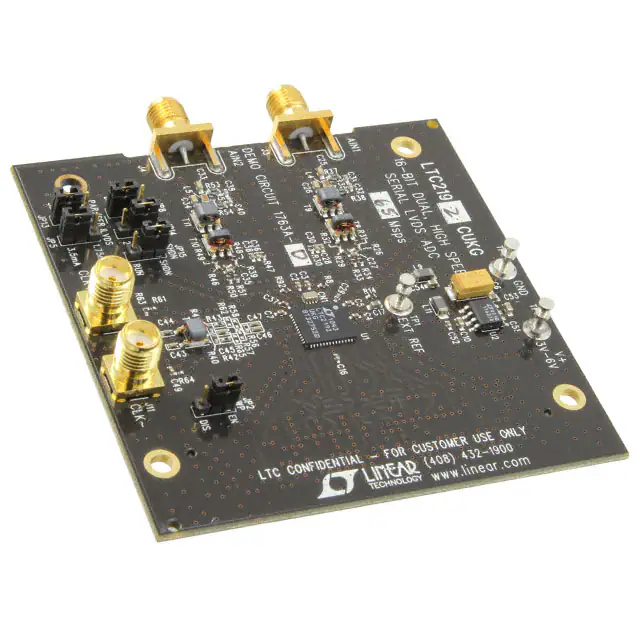

DC1763A-DBOARD DEMO 16BIT 65MSPS LTC2192 |
2,160 | - |
|
Datasheet | - | Bulk | Active | 2 | 16 | 65M | Serial LVDS | 1 ~ 2Vpp | 250mW @ 65MSPS | LTC2192 | Board(s) |
|

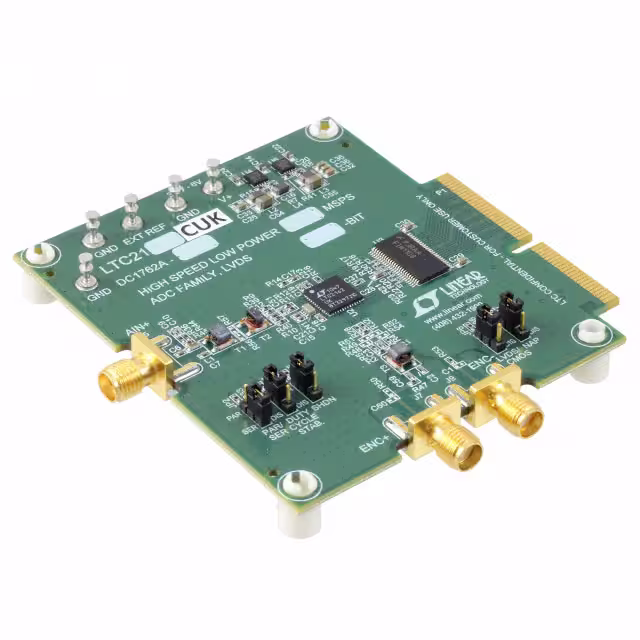

DC1762A-DBOARD DEMO 16BIT 65MSPS LTC2162 |
4,265 | - |
|
Datasheet | - | Bulk | Active | 1 | 16 | 65M | Parallel | 1 ~ 2Vpp | 92mW @ 65MSPS | LTC2162 | Board(s) |
|

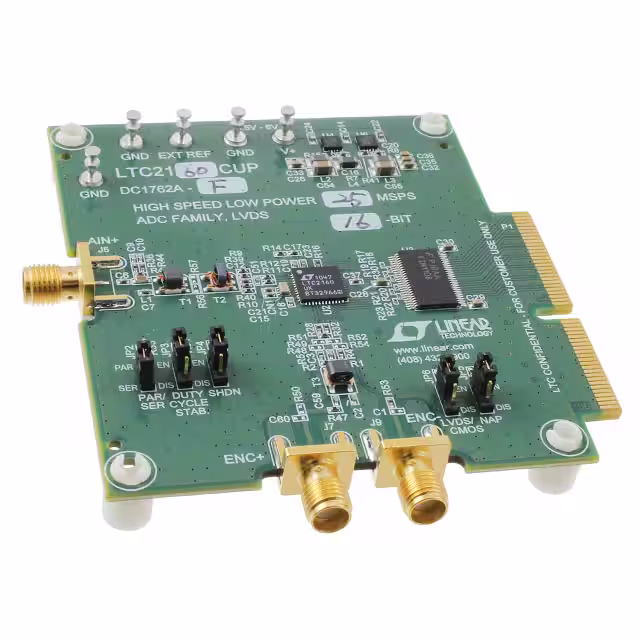

DC1762A-FBOARD DEMO 16BIT 25MSPS LTC2160 |
1,844 | - |
|
Datasheet | - | Bulk | Active | 1 | 16 | 25M | Parallel | 1 ~ 2Vpp | 47mW @ 25MSPS | LTC2160 | Board(s) |
|
DC1370A-KBOARD DEMO 40MSPS LTC2257-12 |
3,427 | - |
|
Datasheet | - | Bulk | Active | 1 | 12 | 40M | Parallel, Serial, SPI | 1 ~ 2Vpp | 121.1mW @ 40MSPS | LTC2257-12 | Board(s) |
|

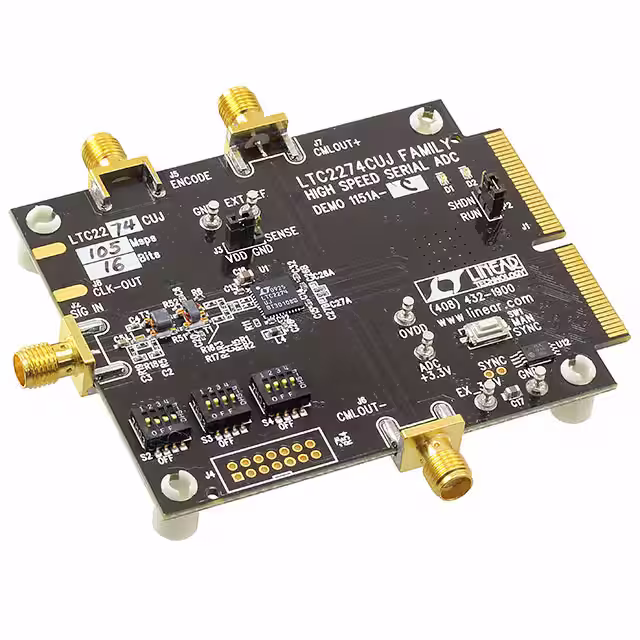

DC1151A-CBOARD EVAL LTC2274CUJ |
2,602 | - |
|
Datasheet | - | Box | Active | 1 | 16 | 105M | Serial | 1.5 ~ 2.25Vpp | 1.3W @ 105MSPS | LTC2274 | Board(s) |
|
DC997B-AEVAL BOARD FOR LTC2242-12 |
1,729 | - |
|
Datasheet | - | Box | Active | 1 | 12 | 250M | CMOS, LVDS, Parallel | 2Vpp | 858mW @ 250MSPS | LTC2242-12 | Board(s) |
|

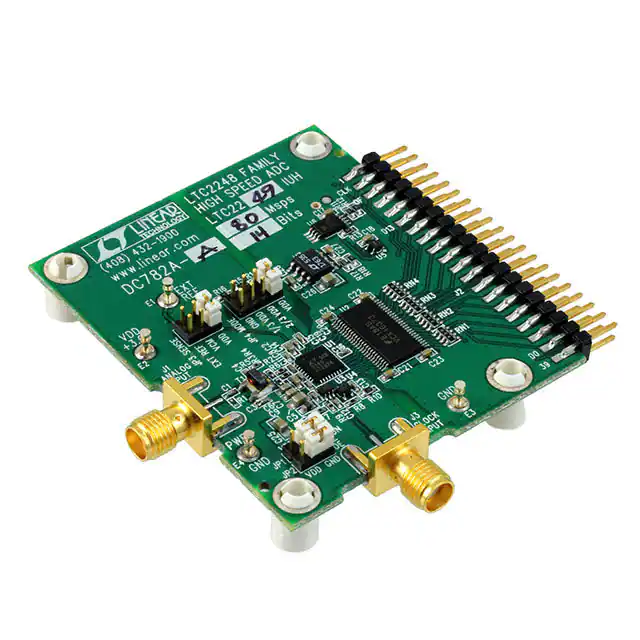

DC782A-ABOARD EVAL LTC2249IUH |
4,625 | - |
|
Datasheet | - | Box | Active | 1 | 14 | 80M | Parallel | 1 ~ 2Vpp | 222mW @ 80MSPS | LTC2249 | Board(s) |
|
|
DC816A-CEVAL BOARD FOR LTC2297 |
4,200 | - |
|
Datasheet | - | Box | Active | 2 | 14 | 40M | Parallel | 1 ~ 2Vpp | 235mW @ 40MSPS | LTC2297 | Board(s) |
|
|
DC816A-GEVAL BOARD FOR LTC2298 |
2,125 | - |
|
Datasheet | - | Box | Active | 2 | 14 | 65M | Parallel | 1 ~ 2Vpp | 400mW @ 65MSPS | LTC2298 | Board(s) |
|
|
DC816A-JEVAL BOARD FOR LTC2292 |
1,025 | - |
|
Datasheet | - | Box | Active | 2 | 12 | 40M | Parallel | 1 ~ 2Vpp | 235mW @ 40MSPS | LTC2292 | Board(s) |
|
|
DC816A-KEVAL BOARD FOR LTC2291 |
1,752 | - |
|
Datasheet | - | Box | Active | 2 | 12 | 25M | Parallel | 1 ~ 2Vpp | 150mW @ 25MSPS | LTC2291 | Board(s) |
|
|
DC816A-QEVAL BOARD FOR LTC2287 |
4,684 | - |
|
Datasheet | - | Box | Active | 2 | 10 | 40M | Parallel | 1 ~ 2Vpp | 235mW @ 40MSPS | LTC2287 | Board(s) |
