Analog to Digital Converters (ADCs) Evaluation Boards
Browse available Analog to Digital Converters (ADCs) Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

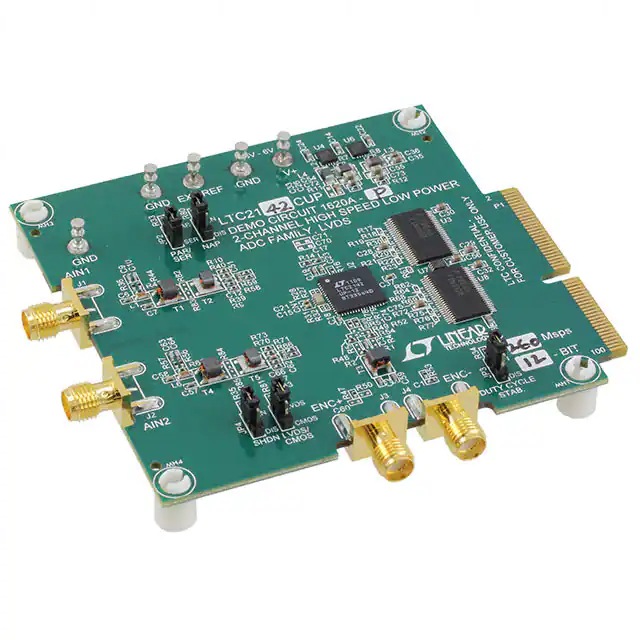

DC1620A-PBOARD DEMO 65MSPS LTC2142-12 |
4,069 | - |
|
Datasheet | - | Bulk | Active | 2 | 12 | 65M | Parallel | 1 ~ 2Vpp | 200mW @ 65MSPS | LTC2142-12 | Board(s) |
|

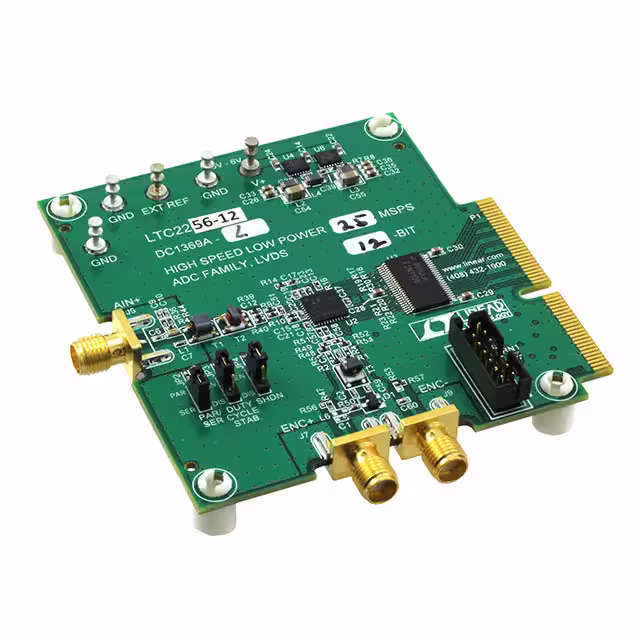

DC1369A-LBOARD EVAL LTC2256-12 |
2,240 | - |
|
Datasheet | - | Box | Active | 1 | 12 | 25M | Parallel | 1 ~ 2Vpp | 106.9mW @ 25MSPS | LTC2256-12 | Board(s) |
|

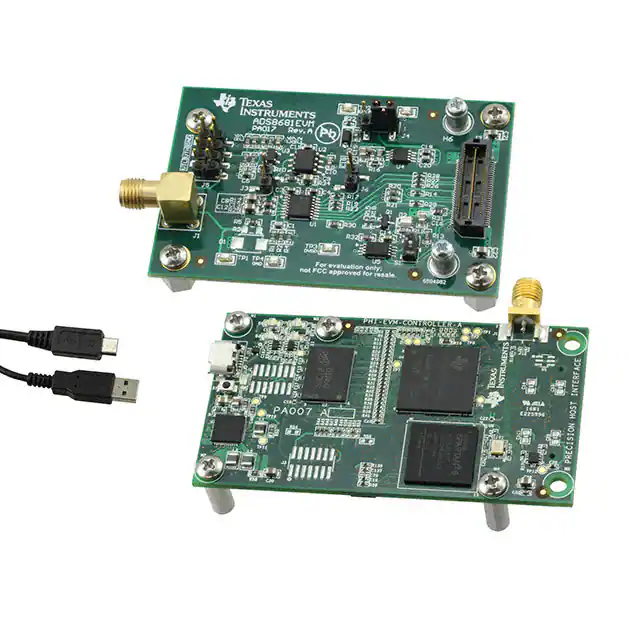

ADS8681EVM-PDKADS8681 EVALUATION MODULE |
1,952 | - |
|
Datasheet | - | Bulk | Obsolete | 1 | 16 | 1M | SPI | - | - | ADS8681 | Board(s) |
|

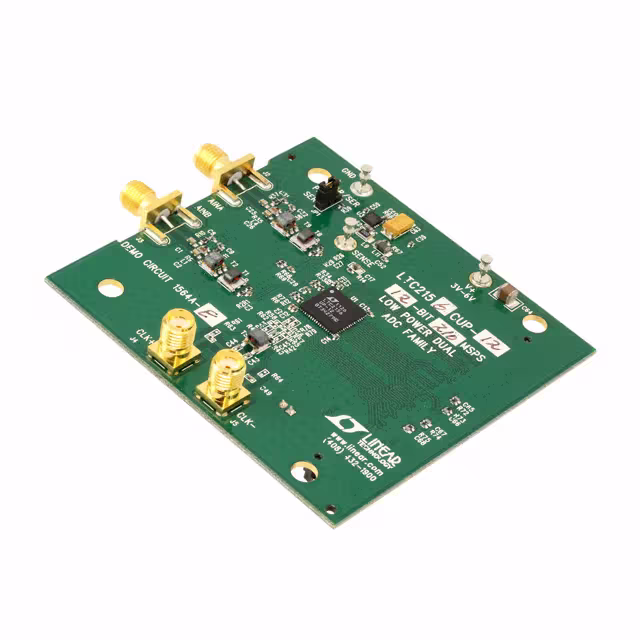

DC1564A-EBOARD DEMO 210MSPS LTC2156-12 |
1,798 | - |
|
Datasheet | - | Bulk | Active | 2 | 12 | 210M | Parallel, Serial, SPI | 1.5Vpp | 643mW @ 210MSPS | LTC2156-12 | Board(s) |
|

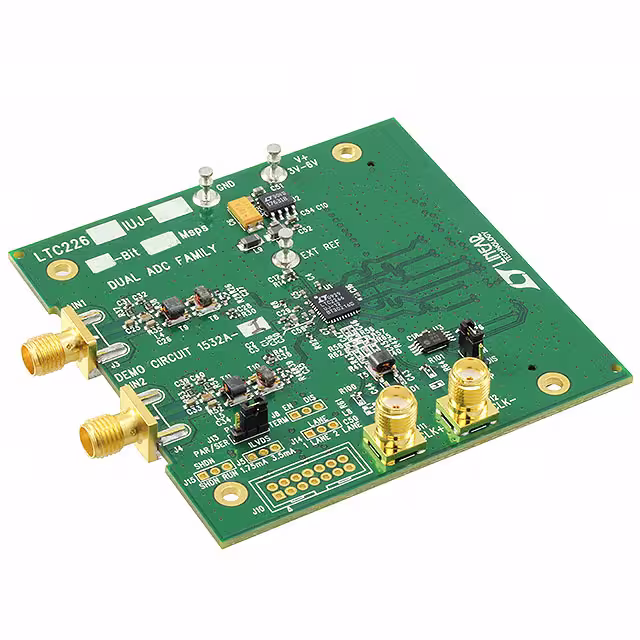

DC1532A-IBOARD DEMO 80MSPS LTC2266-12 |
3,985 | - |
|
Datasheet | - | Bulk | Active | 2 | 12 | 80M | Serial LVDS | 1 ~ 2Vpp | 225mW @ 80MSPS | LTC2266-12 | Board(s) |
|

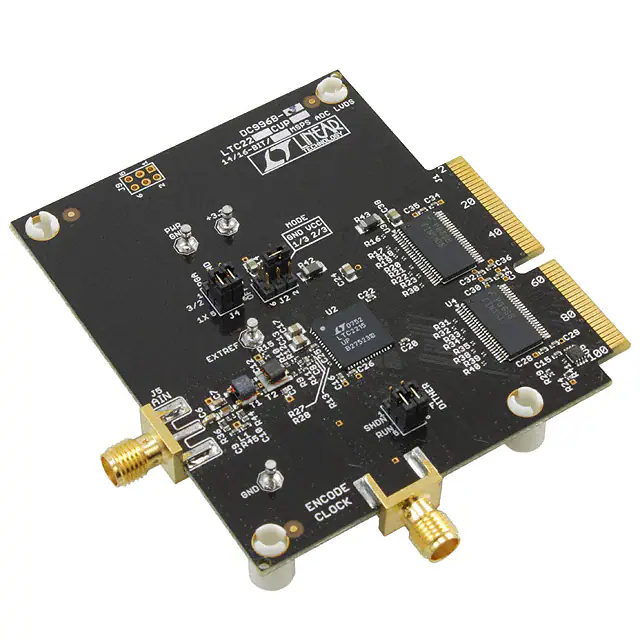

DC996B-JBOARD DEMO 16BIT 65MSPS LTC2215 |
1,532 | - |
|
Datasheet | - | Bulk | Active | 1 | 16 | 65M | Parallel | 2.25Vpp | 964mW @ 65MSPS | LTC2215 | Board(s) |
|
DC1620A-OBOARD DEMO 80MSPS LTC2143-12 |
2,705 | - |
|
Datasheet | - | Bulk | Active | 2 | 12 | 80M | Parallel | 1 ~ 2Vpp | 217mW @ 80MSPS | LTC2143-12 | Board(s) |
|

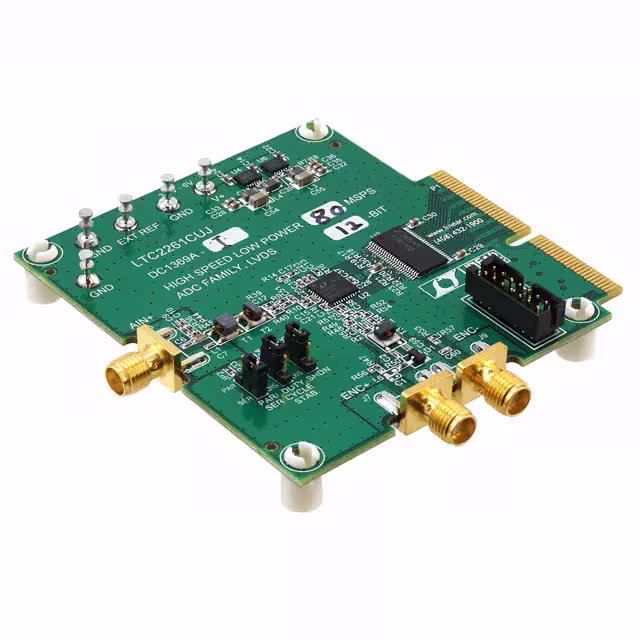

DC1369A-IBOARD DEMO 80MSPS LTC2259-12 |
3,931 | - |
|
Datasheet | - | Bulk | Active | 1 | 12 | 80M | Parallel | 1 ~ 2Vpp | 161mW @ 80MSPS | LTC2259-12 | Board(s) |
|

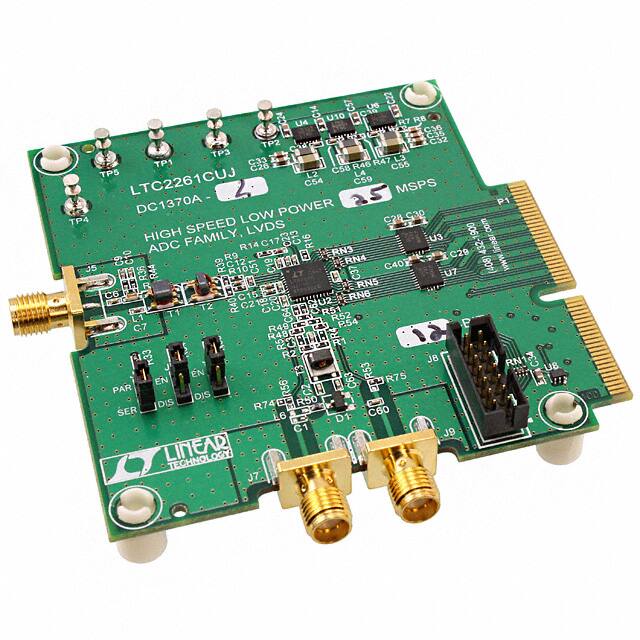

DC1370A-LBOARD DEMO 25MSPS LTC2256-12 |
2,539 | - |
|
Datasheet | - | Bulk | Active | 1 | 12 | 25M | Parallel, Serial, SPI | 1 ~ 2Vpp | 106.9mW @ 25MSPS | LTC2256-12 | Board(s) |
|

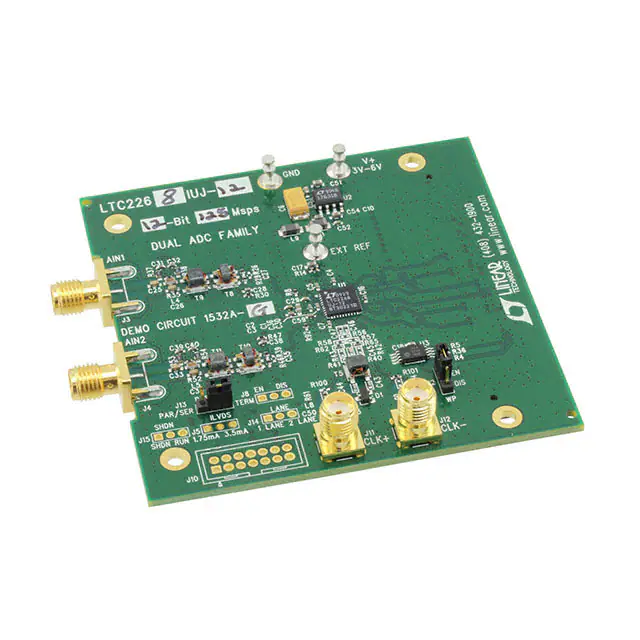

DC1532A-GBOARD DEMO 125MSPS LTC2268-12 |
1,992 | - |
|
Datasheet | - | Bulk | Active | 2 | 12 | 125M | Serial LVDS | 1 ~ 2Vpp | 317mW @ 125MSPS | LTC2268-12 | Board(s) |
|

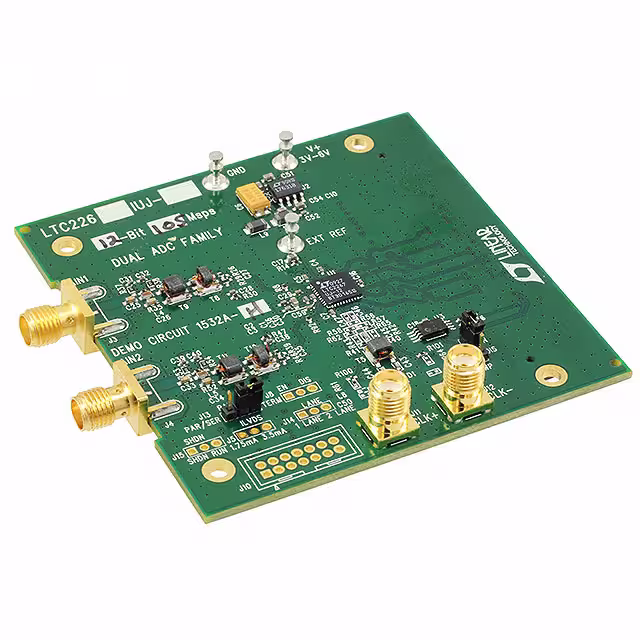

DC1532A-HBOARD DEMO 105MSPS LTC2267-12 |
2,242 | - |
|
Datasheet | - | Bulk | Active | 2 | 12 | 105M | Serial LVDS | 1 ~ 2Vpp | 261mW @ 105MSPS | LTC2267-12 | Board(s) |
|

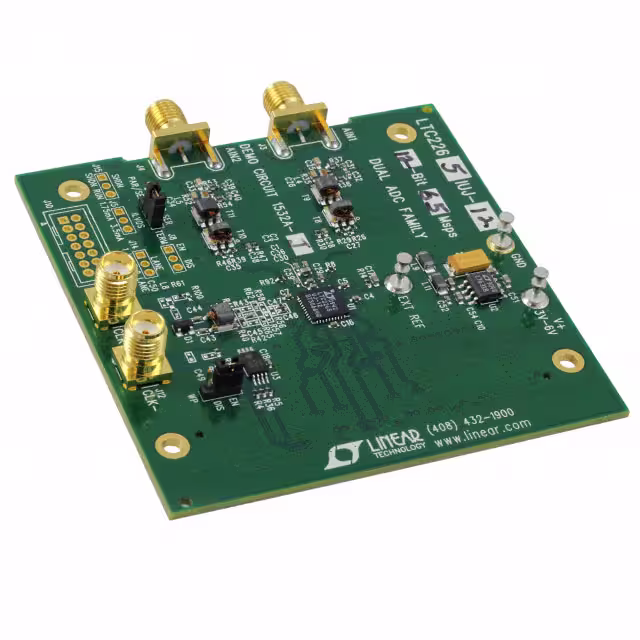

DC1532A-JBOARD DEMO 65MSPS LTC2265-12 |
4,235 | - |
|
Datasheet | - | Bulk | Active | 2 | 12 | 65M | Serial LVDS | 1 ~ 2Vpp | 198mW @ 65MSPS | LTC2265-12 | Board(s) |
|

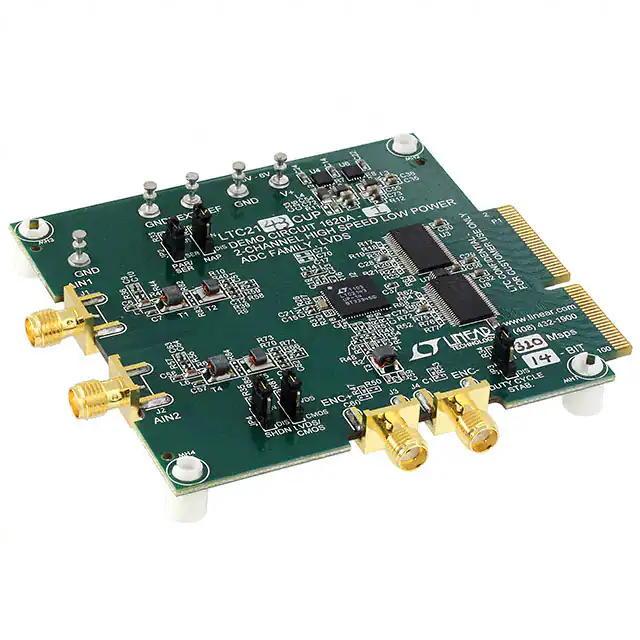

DC1620A-IBOARD DEMO 80MSPS LTC2143-14 |
1,448 | - |
|
Datasheet | - | Bulk | Active | 2 | 14 | 80M | Parallel | 1 ~ 2Vpp | 237mW @ 80MSPS | LTC2143-14 | Board(s) |
|

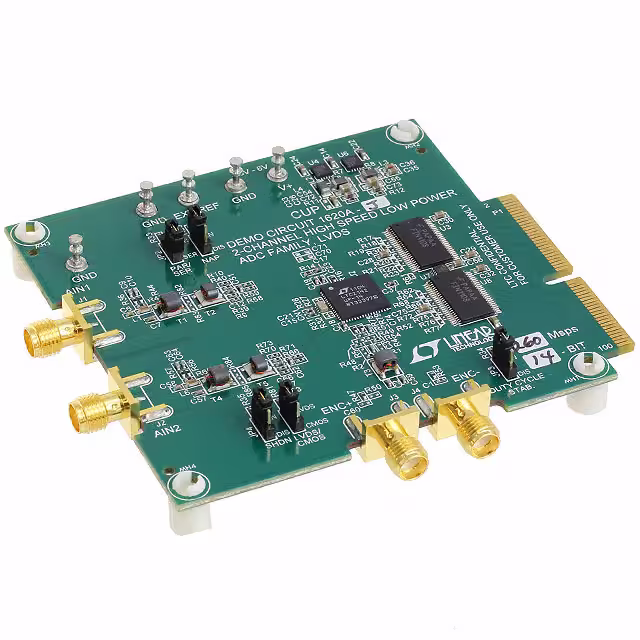

DC1620A-JBOARD DEMO 65MSPS LTC2142-14 |
1,536 | - |
|
Datasheet | - | Bulk | Active | 2 | 14 | 65M | Parallel | 1 ~ 2Vpp | 219mW @ 65MSPS | LTC2142-14 | Board(s) |
|

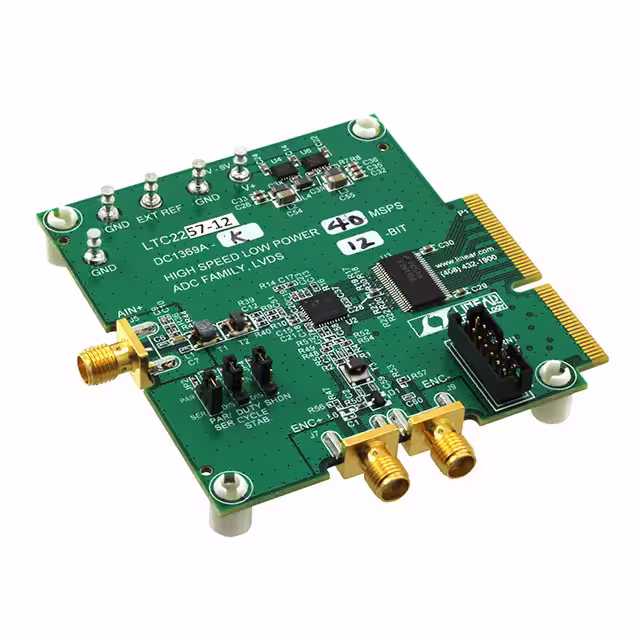

DC1369A-KBOARD EVAL LTC2257-12 |
2,336 | - |
|
Datasheet | - | Box | Active | 1 | 12 | 40M | Parallel | 1 ~ 2Vpp | 121.1mW @ 40MSPS | LTC2257-12 | Board(s) |
|

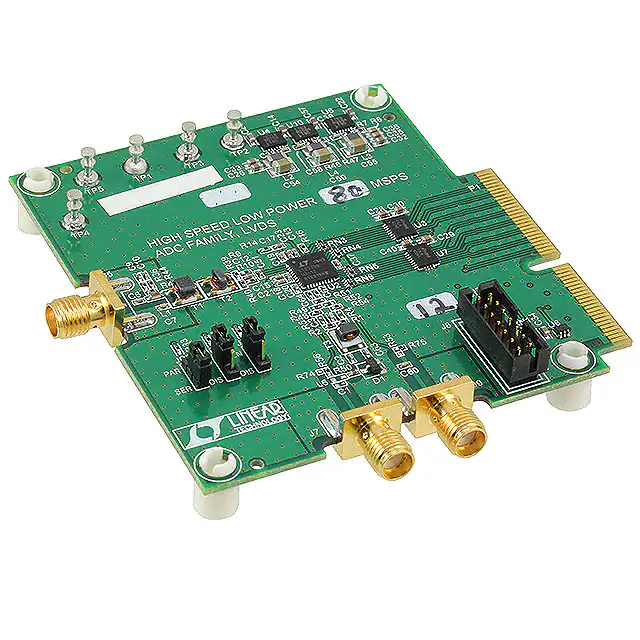

DC1370A-IBOARD EVAL LTC2259-12 |
2,073 | - |
|
Datasheet | - | Box | Active | 1 | 12 | 80M | Parallel, Serial, SPI | 1 ~ 2Vpp | 161mW @ 80MSPS | LTC2259-12 | Board(s) |
|

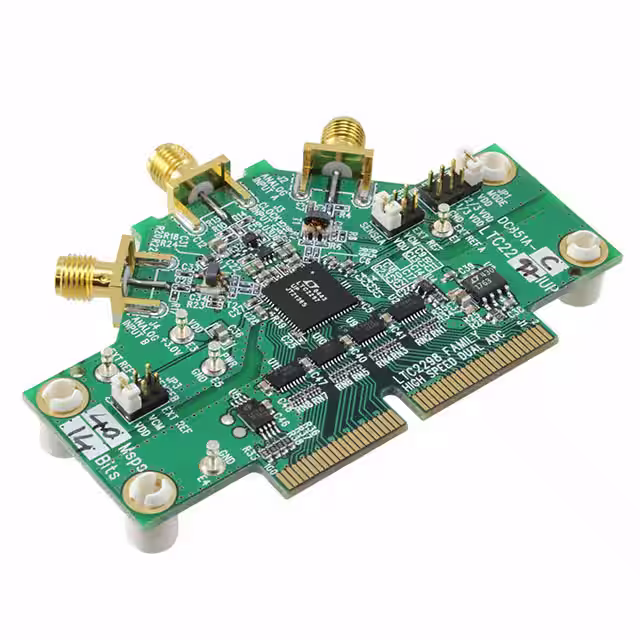

DC851A-CBOARD EVAL LTC2297IUP |
2,356 | - |
|
Datasheet | - | Box | Active | 2 | 14 | 40M | Parallel | 1 ~ 2Vpp | 235mW @ 40MSPS | LTC2297 | Board(s) |
|

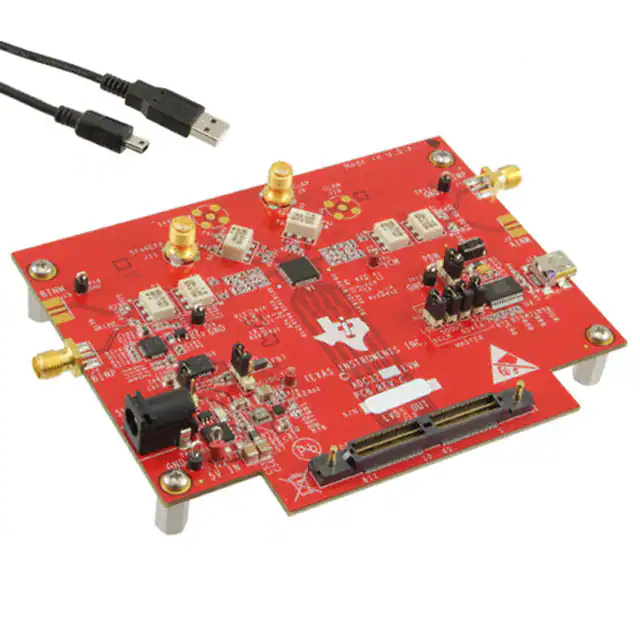

ADC3223EVMEVAL MODULE 80MSPS 12BIT ADC |
4,181 | - |
|
Datasheet | - | Box | Active | 2 | 12 | 80M | LVDS - Serial | 2Vpp | 183mW @ 80MSPS | ADC3223 | Board(s) |
|
ADC32J22EVMEVAL MODULE ADC32J22 |
4,564 | - |
|
Datasheet | - | Box | Active | 2 | 12 | 50M | JESD204B, Serial | 2Vpp | 281mW @ 50MSPS | ADC32J22 | Board(s) |
|

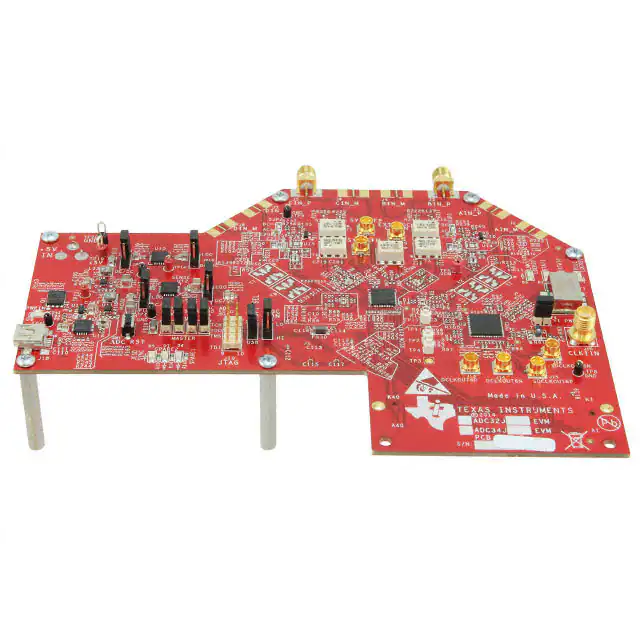

ADC32J23EVMEVAL MODULE ADC32J23 |
2,751 | - |
|
Datasheet | - | Box | Active | 2 | 12 | 80M | JESD204B, Serial | 2Vpp | 329mW @ 80MSPS | ADC32J23 | Board(s) |
