DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

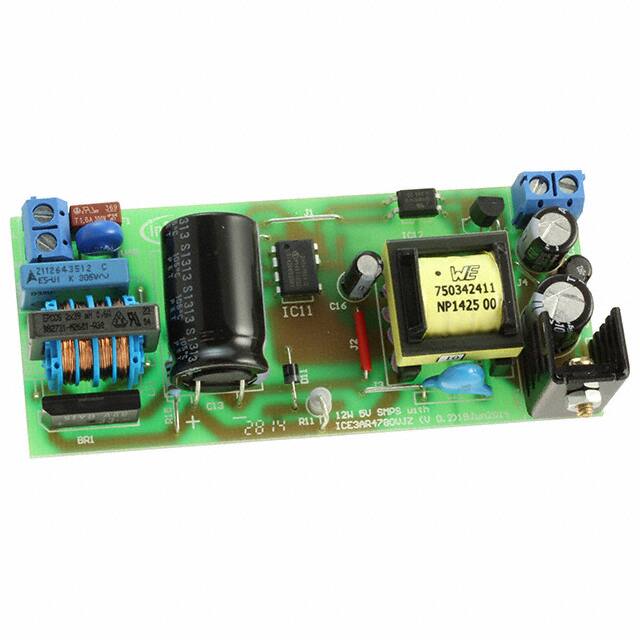

EVAL3AR4780VJZTOBO1EVAL BOARD FOR ICE3AR4780VJZ |
3,015 | - |
|
Datasheet | CoolMOS™, CoolSET™F3R80 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 12 W | 5V | - | - | Flyback | 100kHz | Board(s) | ICE3AR4780VJZ |
|

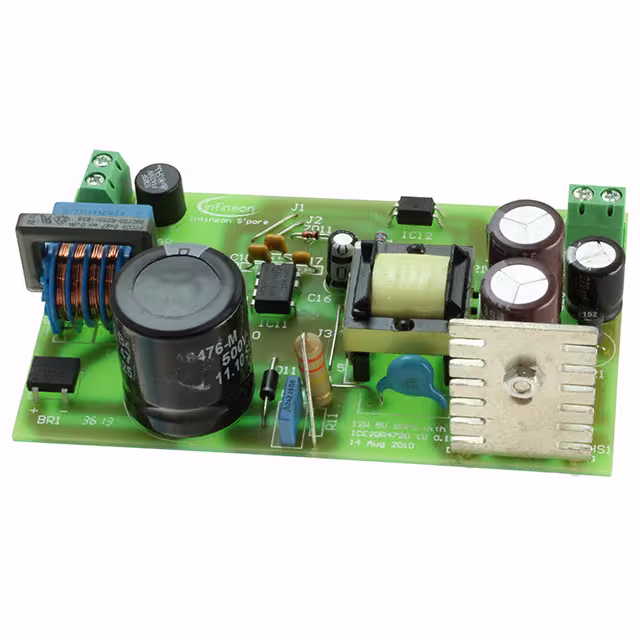

EVALQRCICE2QR4780ZTOBO1EVAL BOARD FOR ICE2QR4780Z |
2,984 | - |
|
Datasheet | CoolMOS™, CoolSET™-Q1 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 12 W | 5V | - | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE2QR4780Z |
|

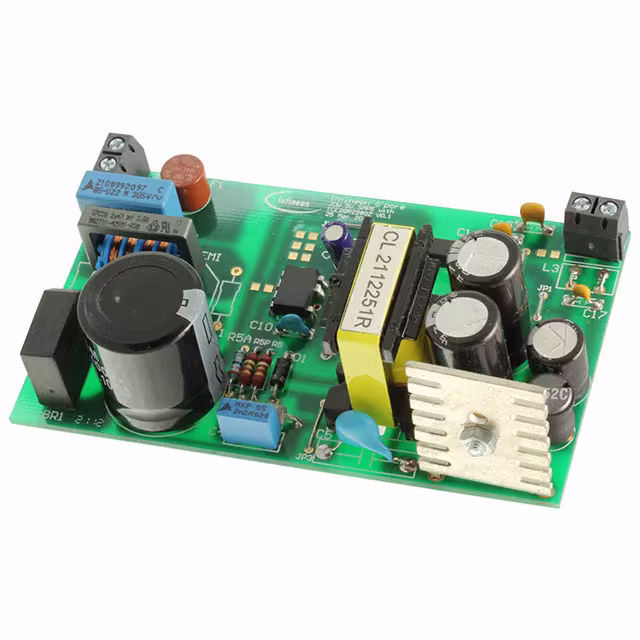

EVALQRCICE2QR2280ZTOBO1EVAL BOARD FOR ICE2QR2280Z |
3,577 | - |
|
Datasheet | CoolMOS™, CoolSET™-Q1 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | ICE2QR2280Z |
|
IRNBPS1EVAL BOARD FOR IRF7805 IRF7807 |
4,054 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V ~ 2V | 7A | 10V ~ 24V | Buck | 300kHz | Board(s) | IRF7805, IRF7807 |
|
|
IRDC3812EVAL BOARD FOR IR3812 |
3,792 | - |
|
Datasheet | SupIRBuck® | Tube | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 5V ~ 12V | Buck | - | Board(s) | IR3812 |
|

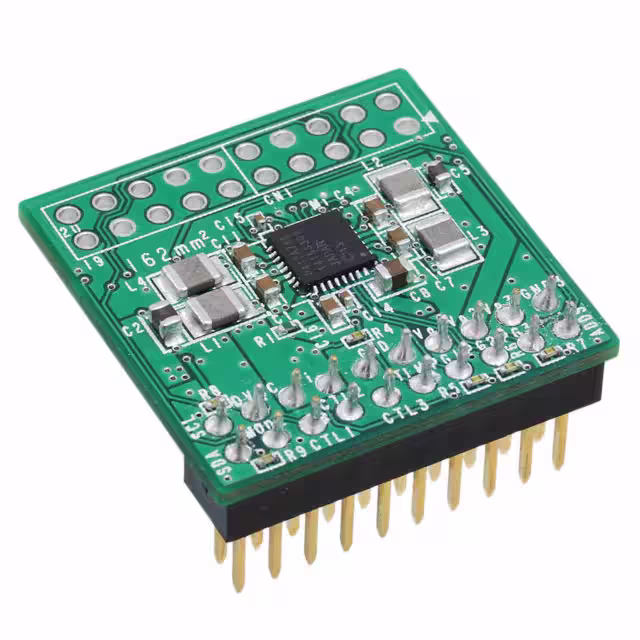

S6SAP412A78SA1001EVAL BOARD FOR S6AP412A |
3,409 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1V, 1.8V, 3.3V | 4A, 1.2A, 600mA | 2.5V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | S6AP412A |
|

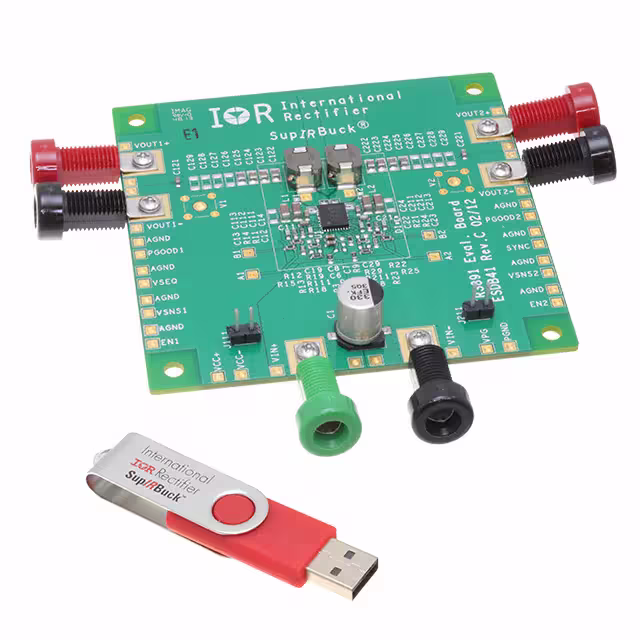

IRDC3892EVAL BOARD FOR IR3892 |
1,474 | - |
|
Datasheet | SupIRBuck® | Box | Discontinued at Digi-Key | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 6A, 6A | 12V | Buck | 600kHz | Board(s) | IR3892 |
|

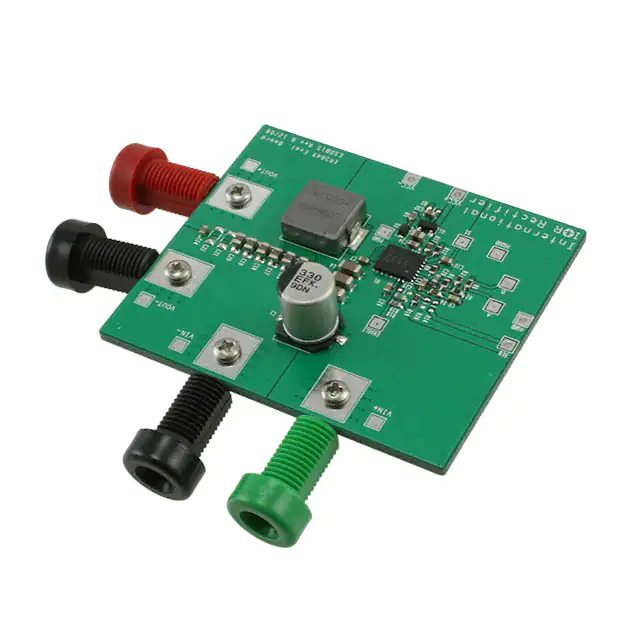

IRDC3840WEVAL BOARD FOR IR3840W |
1,293 | - |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 12A | 12V | Buck | 600kHz | Board(s) | IR3840W |
|

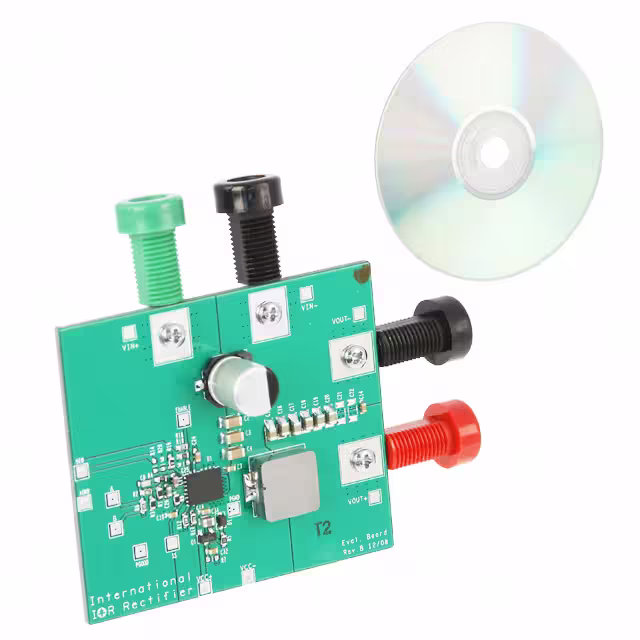

IRDC3841WEVAL BOARD FOR IR3841W |
2,373 | - |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 8A | 12V | Buck | 600kHz | Board(s) | IR3841W |
|

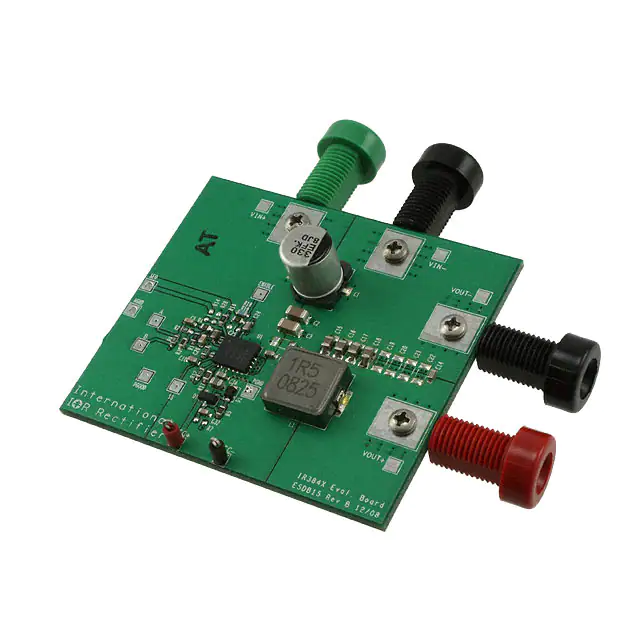

IRDC3842WEVAL BOARD FOR IR3842W |
2,988 | - |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 12V | Buck | 600kHz | Board(s) | IR3842W |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
