DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

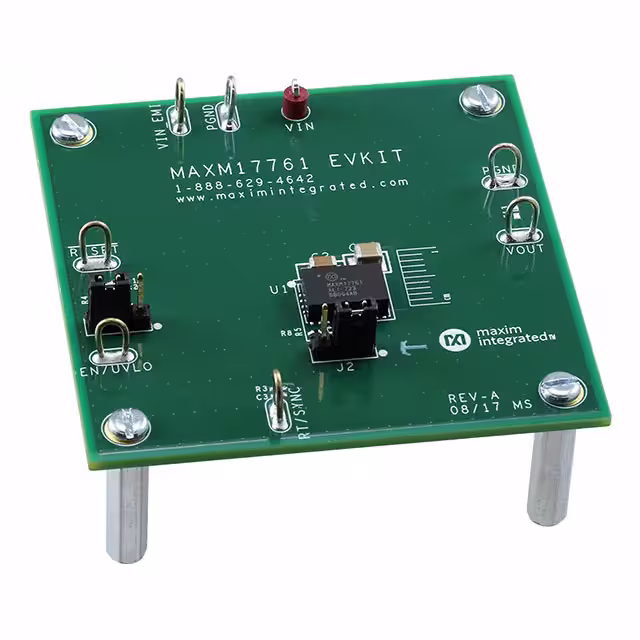

MAXM17761EVKIT#EVAL BOARD FOR MAXM17761 |
2,222 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 10V ~ 76V | Buck | 537kHz | Board(s) | MAXM17761 |
|
MAXM17504EVKIT#EVAL BOARD FOR MAXM17504 |
4,791 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 11V ~ 60V | Buck | 500kHz | Board(s) | MAXM17504 |
|

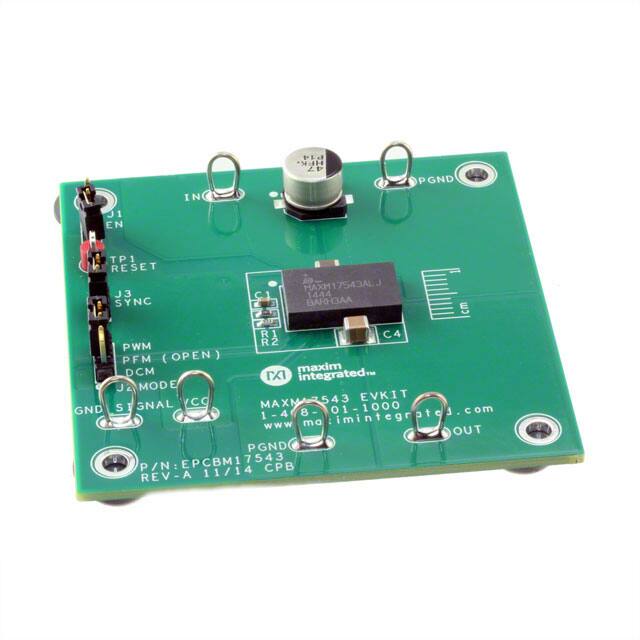

MAXM17543EVKIT#EVAL BOARD FOR MAXM17543 |
1,052 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 2.5A | 4.5V ~ 42V | Buck | - | Board(s) | MAXM17543 |
|
MAXM17544EVKIT#EVAL BOARD FOR MAXM17544 |
1,885 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 3.5A | 4.5V ~ 42V | Buck | - | Board(s) | MAXM17544 |
|
|
MAXM17503EVKIT#EVAL BOARD FOR MAXM17503 |
2,601 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 11V ~ 60V | Buck | 500kHz | Board(s) | MAXM17503 |
|
|
MAXM17505EVKIT#EVAL BOARD FOR MAXM17505 |
3,640 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 1.7A | 4.5V ~ 60V | Buck | - | Board(s) | MAXM17505 |
|

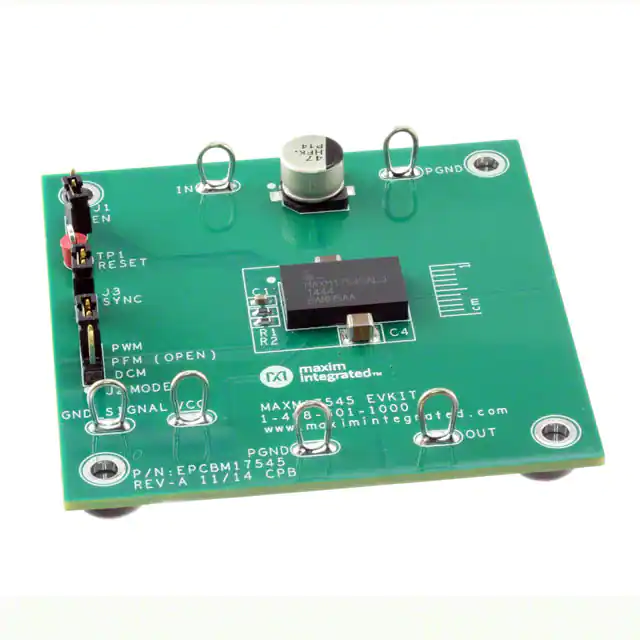

MAXM17545EVKIT#EVAL BOARD FOR MAXM17545 |
1,395 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 1.7A | 4.5V ~ 42V | Buck | - | Board(s) | MAXM17545 |
|

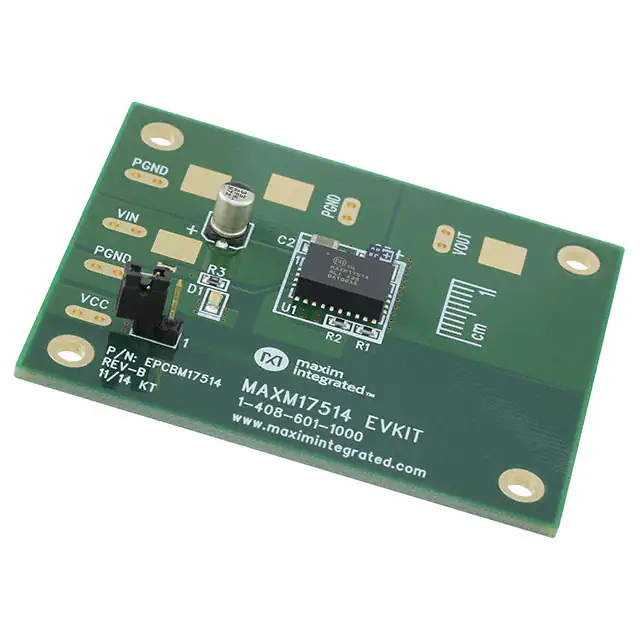

MAXM17514EVKIT#EVAL BOARD FOR MAXM17514 |
3,055 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3.6V | 4A | 2.4V ~ 5.5V | Buck | 1MHz | Board(s) | MAXM17514 |
|

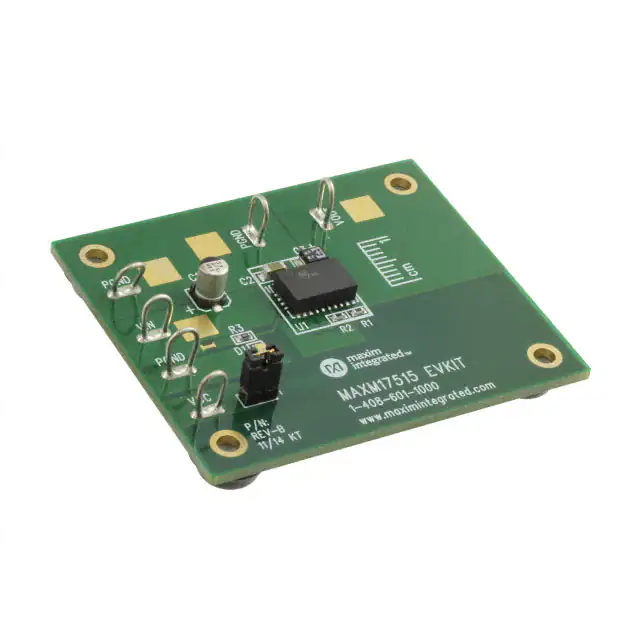

MAXM17515EVKIT#EVAL BOARD FOR MAXM17515 |
2,092 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3.6V | 5A | 2.4V ~ 5.5V | Buck | 1MHz | Board(s) | MAXM17515 |
|
MAXM17516EVKIT#EVAL BOARD FOR MAXM17516 |
4,295 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 1.8V | 6A | 2.4V ~ 5.5V | Buck | 1MHz | Board(s) | MAXM17516 |
