DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL85415DEMO1ZEVAL BOARD FOR ISL85415 |
1,630 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85415 |
|

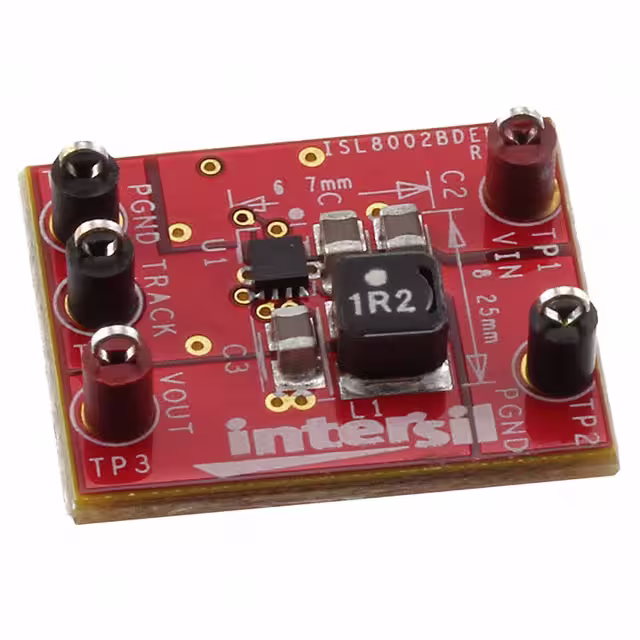

ISL8002BDEMO1ZEVAL BOARD FOR ISL8002B |
3,555 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL8002B |
|
|
ISL85412DEMO1ZEVAL BOARD FOR ISL85412 |
2,842 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 150mA | 3.5V ~ 40V | Buck | 700kHz | Board(s) | ISL85412 |
|
ISL8018DEMO1ZEVAL BOARD FOR ISL8018 |
2,546 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 8A | 2.7V ~ 5.5V | Buck | - | Board(s) | ISL8018 |
|
XCL206B153-EVBEVAL BOARD FOR XCL206B153ARG |
1,565 | - |
|
Datasheet | XCL206 | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2V ~ 6V | Buck | - | Board(s) | XCL206B153AR-G |
|
LM5006EVAL/NOPBEVAL BOARD FOR LM5006 |
2,946 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 6V ~ 75V | Buck | 200kHz | Board(s) | LM5006 |
|
LM22680EVAL/NOPBEVAL BOARD FOR LM22680 |
3,756 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22680 |
|
LMZ10505EVAL/NOPBEVAL BOARD FOR LMZ10505 |
3,205 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10505 |
|
MAXM15066EVKIT#EVAL BOARD FOR MAXM15066 |
4,039 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 8.5V ~ 60V | Buck | 550kHz | Board(s) | MAXM15066 |
|
MAXM17904EVKIT#EVAL BOARD FOR MAXM17904 |
3,386 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5.5V ~ 24V | Buck | 550kHz | Board(s) | MAXM17904 |
|
STEVAL-ISA092V1EVAL BOARD FOR L7980 |
2,317 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 28V | Buck | 250kHz | Board(s) | L7980 |
|
BU90005GWZ-E2-EVK-101EVAL BOARD FOR BU90005 |
4,425 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1A | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | BU90005 |
|

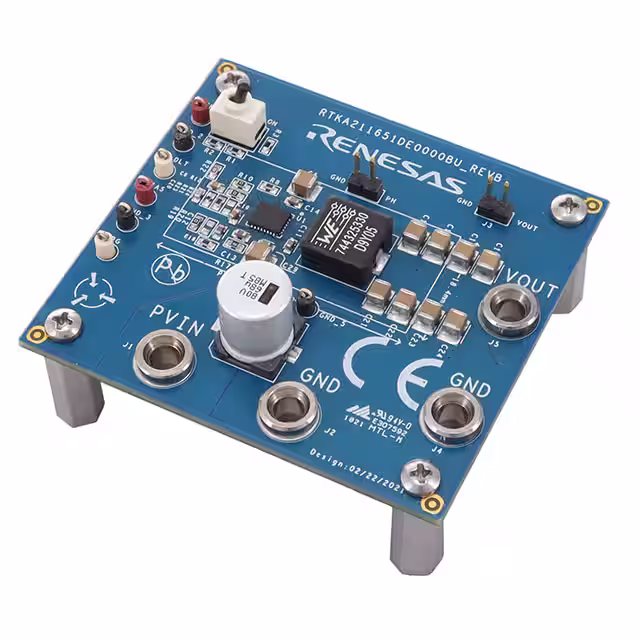

RTKA211651DE0000BUEVAL BOARD FOR RAA211651 |
2,177 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 60V | Buck | 500kHz | Board(s) | RAA211651 |
|
DEMOBOARDTLE83862ELTOBO1EVAL BOARD FOR TLE83862EL |
3,730 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 27V | - | - | Boost | - | Board(s) | TLE8386-2EL |
|
178960501EVAL BOARD FOR WPMDB1960501 |
4,609 | - |
|
Datasheet | MagI3C | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 600mA | 2.7V ~ 5.5V | Buck | 2.25MHz | Board(s) | WPMDB1960501 |
|
STEVAL-A6986IV2EVAL BOARD FOR A6986I |
4,893 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 5 W | 2.9V ~ 3.6V | - | 4V ~ 38V | Buck | - | Board(s) | A6986I |
|
|
ISL85003DEMO1ZEVAL BOARD FOR ISL85003 |
3,513 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | ISL85003 |
|
|
SECO-LVDCDC3064-SIC-GEVBEVAL BOARD FOR NCV3064 |
1,498 | - |
|
Datasheet | - | Box | Active | DC/DC Isolated Power Supply | 3 Isolated Outputs | 1.5 W | -5V, 5V, 20V | 150mA | 6V ~ 18V | Flyback | 150kHz | Board(s) | NCV3064 |
|
SECO-LVDCDC3064-IGBT-GEVBEVAL BOARD FOR NCV3064 |
1,797 | - |
|
Datasheet | - | Box | Active | DC/DC Isolated Power Supply | 3 Isolated Outputs | - | -7.5V, 7.5V, 15V | - | 6V ~ 18V | Flyback | - | Board(s) | NCV3064 |
|
STEVAL-LNBH02EVAL BOARD FOR LNBH25S |
3,492 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25S |
