DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

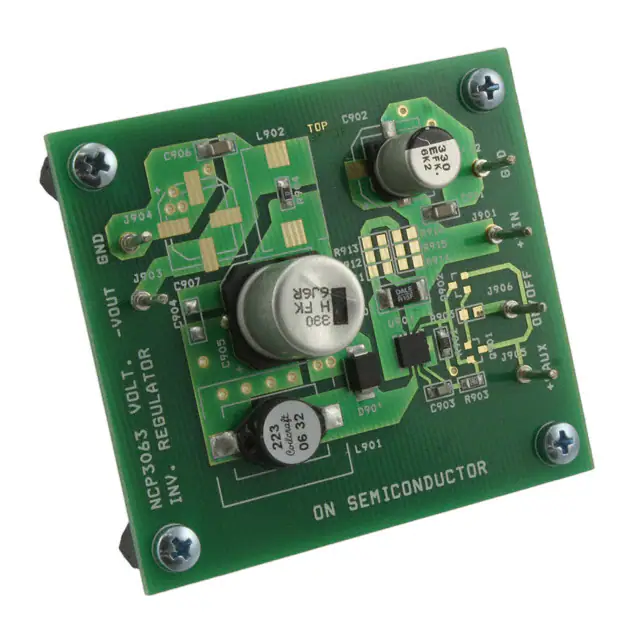

NCP3063SMINVGEVBEVAL BOARD FOR NCP3063 |
2,693 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 100mA | 5V | Inverting | - | Board(s) | NCP3063 |
|

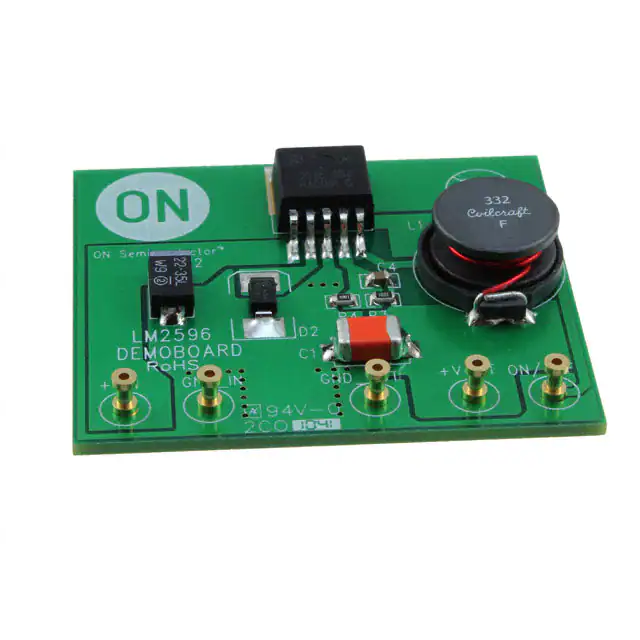

LM2596ADPBCKGEVBEVAL BOARD FOR LM2596 |
3,532 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 40V | Buck | 150kHz | Board(s) | LM2596 |
|

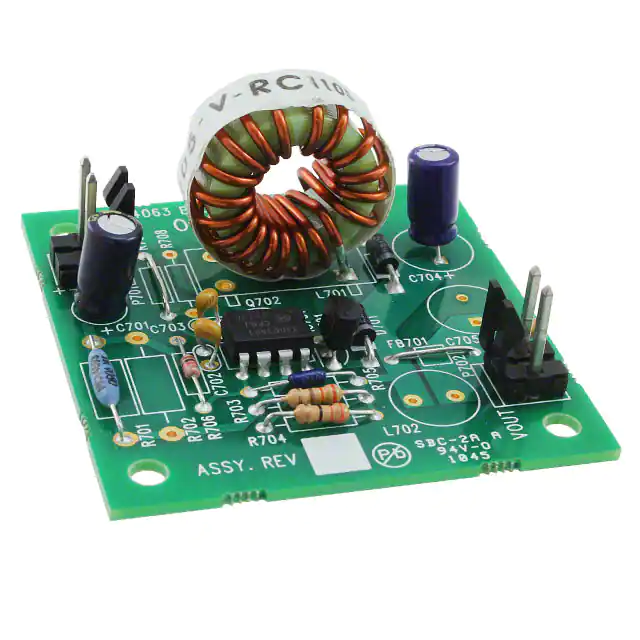

MC34063LBBGEVBEVAL BOARD FOR MC34063A |
4,582 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 1.5A | 3V ~ 40V | Inverting | 100kHz | Board(s) | MC34063A |
|

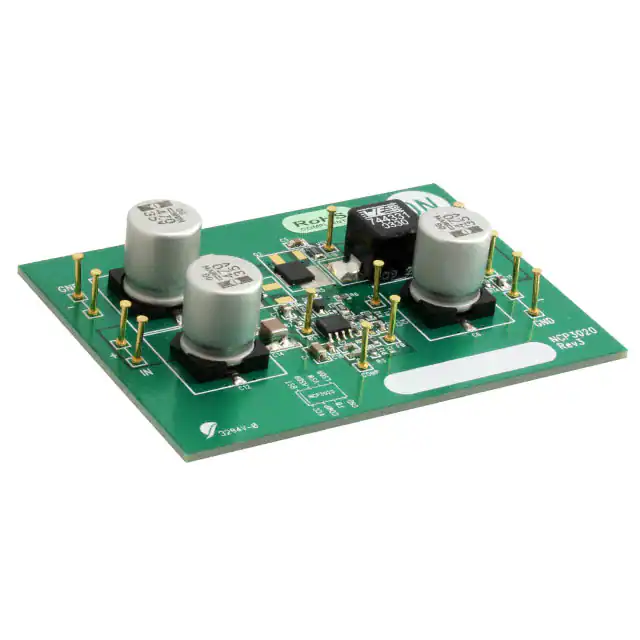

NCP3020BGEVBEVAL BOARD FOR NCP3020B |
4,035 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 9V ~ 18V | Buck | 600kHz | Board(s) | NCP3020B |
|

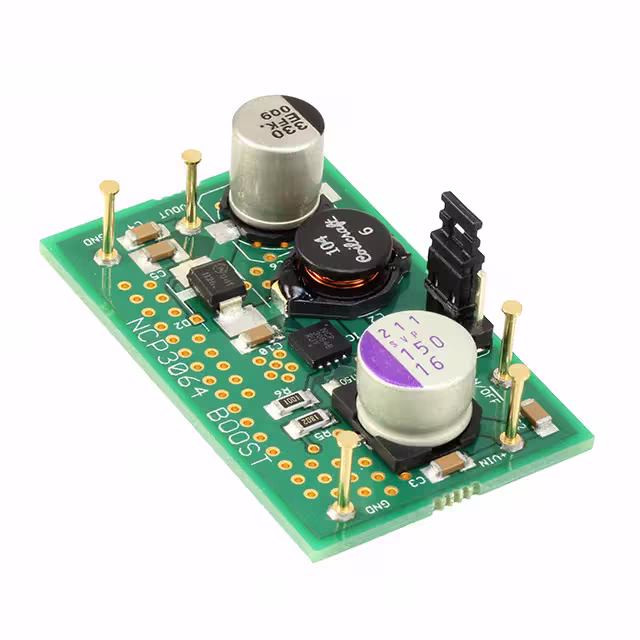

NCP3064DFBSTGEVBEVAL BOARD FOR NCP3064 |
1,505 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 1.5A | 3V ~ 40V | Buck-Boost | 150kHz | Board(s) | NCP3064 |
|
CS5171BSTGEVBEVAL BOARD FOR CS5171 |
2,580 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 400mA | 3.3V ~ 5V | Boost | 260kHz | Board(s) | CS5171 |
|
NCP10671B05GEVBEVAL BOARD FOR NCP10671 |
1,488 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 5V | 50mA | 90 ~ 265 VAC | Flyback | - | Board(s) | NCP10671 |
|
NCP1063BUCKGEVBEVAL BOARD FOR NCP1063 |
1,478 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 12V | 350mA | 90 ~ 264 VAC | Buck | 100kHz | Board(s) | NCP1063 |
|

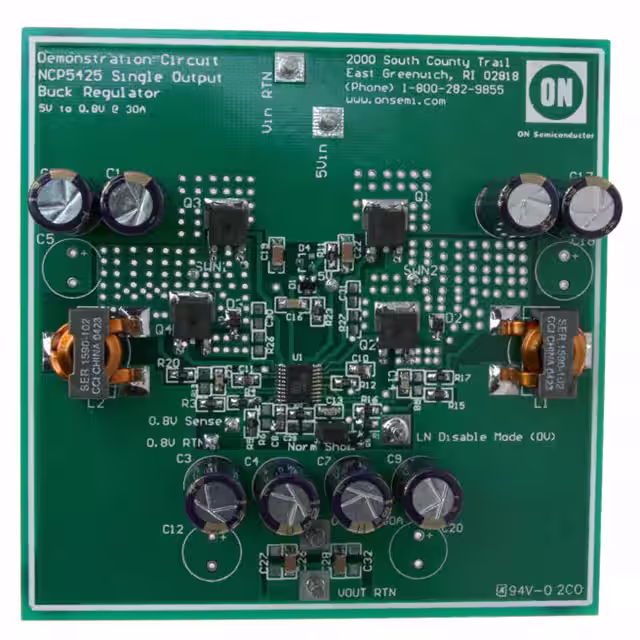

NCP5425SOEVBEVAL BOARD FOR NCP5425 |
2,243 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V | 30A | 4.6V ~ 12V | Buck | 300kHz | Board(s) | NCP5425 |
|

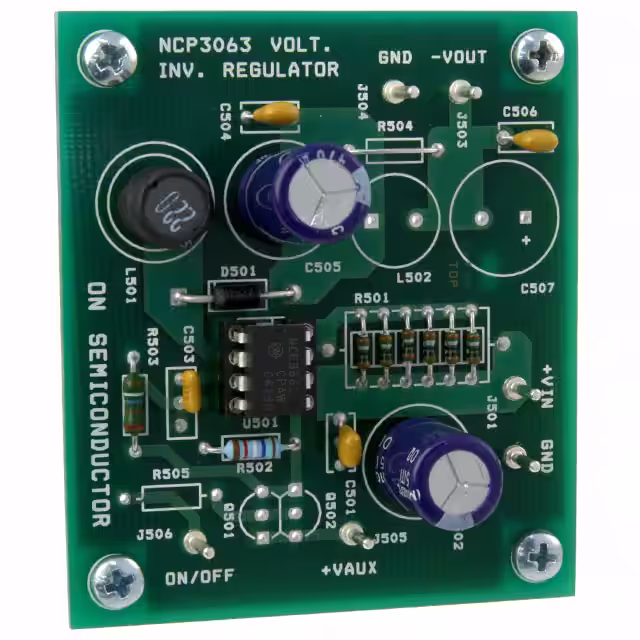

NCP3063DIPINVEVBEVAL BOARD FOR NCP3063 |
1,012 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | - | 4.5V ~ 6V | Inverting | 250kHz | Board(s) | NCP3063 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
