DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APEK4490EES-01-T-DKEVAL BOARD FOR A4490 |
1,259 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | - | - | 4.5V ~ 34V | Buck | 550kHz | Board(s), Cable(s), Power Supply | A4490 |
|
MAX77960BEVKIT12#EVAL BOARD FOR MAX77960B |
1,168 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Charger | 1 Non-Isolated Output | - | - | 3A | 3.5V ~ 25.4V | Buck-Boost | 1.2MHz | Board(s) | MAX77960B |
|
NCP3063DIPINVEVBEVAL BOARD FOR NCP3063 |
1,012 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | - | 4.5V ~ 6V | Inverting | 250kHz | Board(s) | NCP3063 |
|
BM2P161W-EVK-001EVAL BOARD FOR BM2P161W |
4,282 | - |
|
Datasheet | - | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 9.9 W | 16.5V | 600mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P161W |
|
NCP1521BEVBEVAL BOARD FOR NCP1521 |
1,903 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 3.3V | 600mA | 3.6V | Buck | 1.5MHz | Board(s) | NCP1521 |
|
NCP3064PDBCKGEVBEVAL BOARD FOR NCP3064 |
1,010 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 12V | Buck | 150kHz | Board(s) | NCP3064 |
|
DC397AEVAL BOARD FOR LT1930A LT1931A |
2,341 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 3 Non-Isolated Outputs | - | 12V, 12V, -12V | 250mA, 250mA, 250mA | 5V, 12V, 10V ~ 16V | - | 2.2MHz | Board(s) | LT1930A, LT1931A |
|
|
NCP1340GEVBEVAL BOARD FOR NCP1340 |
3,677 | - |
|
Datasheet | - | Box | Active | AC/DC, Secondary Side | 1 Non-Isolated Output | - | - | - | 9V ~ 28V | Flyback | - | Board(s) | NCP1340 |
|
EVL-SRK2001-HVSEVAL BOARD FOR SRK2001 |
1,376 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 12V | Resonant | 500kHz | Board(s) | SRK2001 |
|
ISL85033-12VEVAL3ZEVAL BOARD FOR ISL85033 |
1,035 | - |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 5A | 4.5V ~ 28V | Buck | 300kHz ~ 2MHz | Board(s) | ISL85033 |
|
SIC464EVBEVAL BOARD FOR SIC464 |
2,364 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.5V ~ 60V | Buck | - | Board(s) | SIC464 |
|
DC1419AEVAL BOARD FOR LT3663 |
3,789 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 7.5V ~ 36V | Buck | 1.5MHz | Board(s) | LT3663 |
|
DC1311A-BEVAL BOARD FOR LTC38055 |
2,853 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 3A | 18V ~ 72V | Flyback | 300kHz | Board(s) | LTC3805-5 |
|

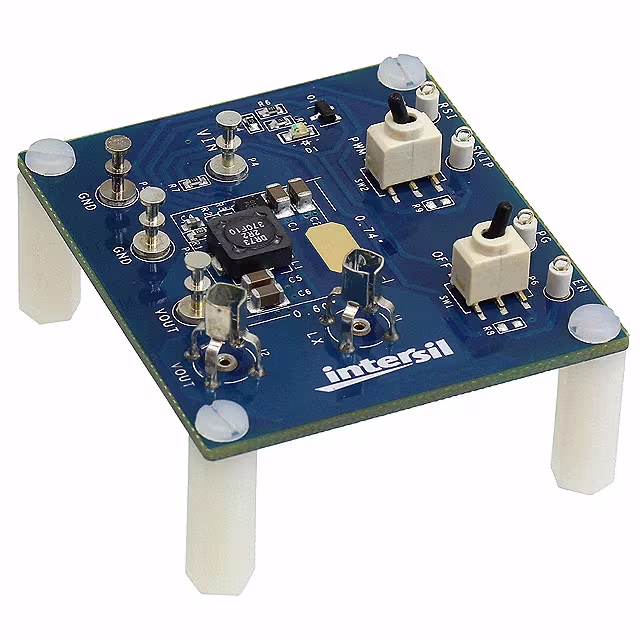

ISL8012EVAL1ZEVAL BOARD FOR ISL8012 |
4,047 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8012 |
|

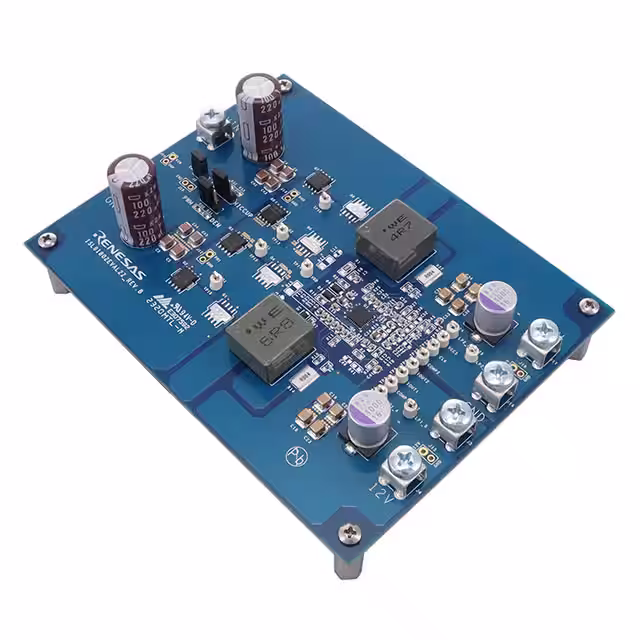

ISL81802EVAL2ZEVAL BOARD FOR ISL81802 |
4,130 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 10A, 10A | 6V ~ 80V, 18V ~ 80V | Buck | 200kHz | Board(s) | ISL81802 |
|
BD7F100EFJ-EVK-002EVAL BOARD FOR BD7F100 |
3,508 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±15V | 165mA, 165mA | 24V | Flyback | 400kHz | Board(s) | BD7F100 |
|
BD7F100EFJ-EVK-003EVAL BOARD FOR BD7F100 |
4,152 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 200mA | 5V | Flyback | 400kHz | Board(s) | BD7F100 |
|
BD7F100HFN-EVK-004EVAL BOARD FOR BD7F100 |
1,238 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 200mA | 5V | Flyback | 400kHz | Board(s) | BD7F100 |
|
|
EVALBIDIHB1EDN7550BTOBO1EVAL BOARD FOR 1EDN7550B |
1,897 | - |
|
Datasheet | EiceDRIVER™, OptiMOS™ | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 50 W | 2V ~ 12V | 4A | 20V ~ 50V | Boost, Buck | - | Board(s) | 1EDN7550B, BSC093N15NS5, XMC1100 |
|
MAX17497AEVKIT#EVAL BOARD FOR MAX17497A |
4,735 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | - | 3.3V, 12V | 600mA, 300mA | 85 ~ 265 VAC | Flyback | 250kHz | Board(s) | MAX17497A |
