DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC14131EVM-070EVAL BOARD FOR UCC14131Q1 |
1,147 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | 1.5 W | - | - | 11.2V ~ 14V | - | - | Board(s) | UCC14131-Q1 |
|

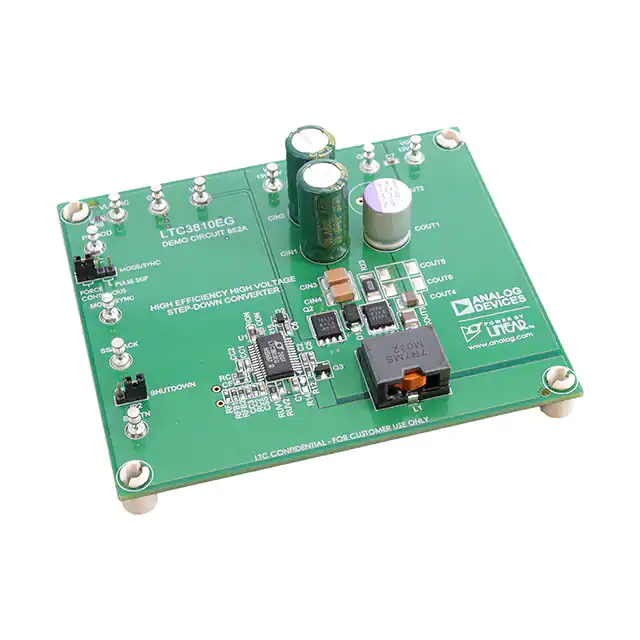

DC952AEVAL BOARD FOR LTC3810 |
2,844 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 6A | 13V ~ 80V | Buck | 230kHz | Board(s) | LTC3810 |
|
LMZ14203HEVAL/NOPBEVAL BOARD FOR LMZ14203H |
3,006 | - |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 3A | 15V ~ 42V | Buck | - | Board(s) | LMZ14203H |
|
TPSM53604EVMEVAL BOARD FOR TPSM53604 |
2,946 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 4A | 3.8V ~ 36V | Buck | - | Board(s) | TPSM53604 |
|
LMZM33602EVMEVAL BOARD FOR LMZM33602 |
2,986 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 12V | - | 4V ~ 36V | Buck | - | Board(s) | LMZM33602 |
|

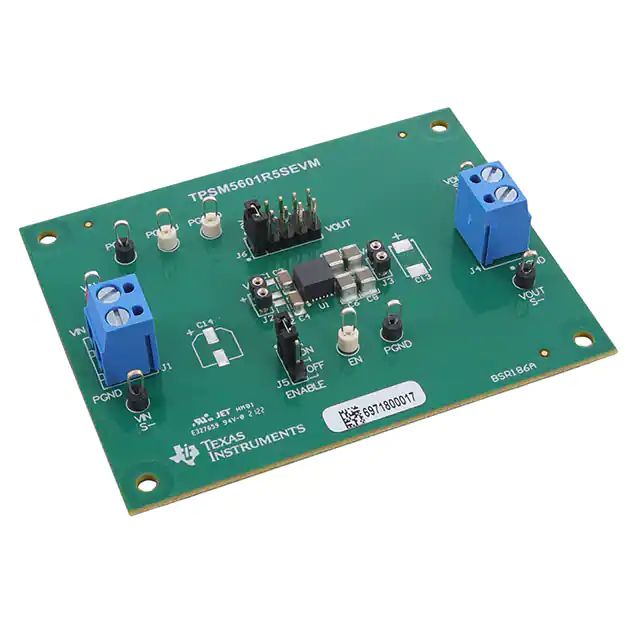

TPSM5601R5SEVMEVAL BOARD FOR TPSM5601R5S |
4,724 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | - | 4.2V ~ 60V | Buck | - | Board(s) | TPSM5601R5S |
|

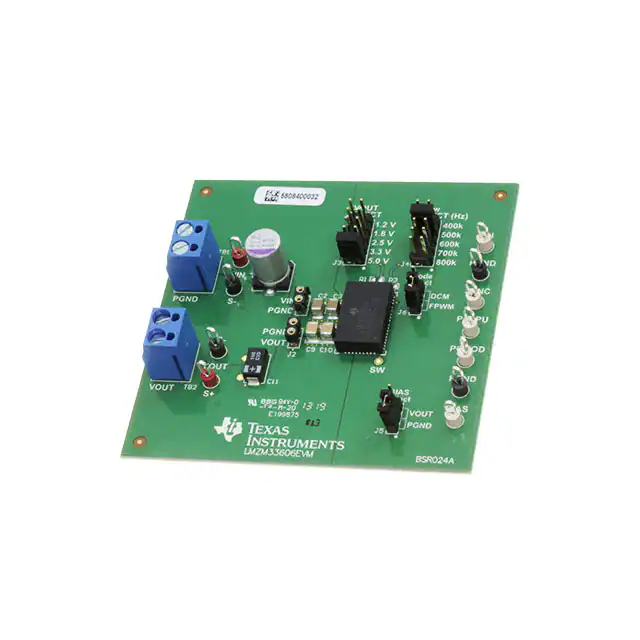

LMZM33606EVMEVAL BOARD FOR LMZM33606 |
2,973 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 6A | 3.5V ~ 36V | Buck | - | Board(s) | LMZM33606 |
|

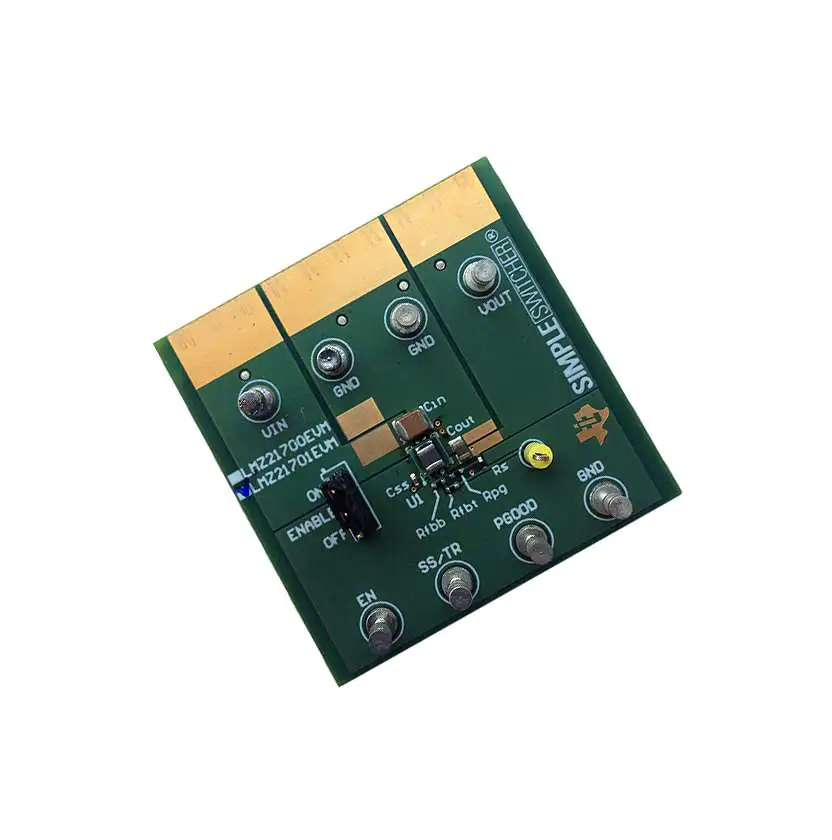

LMZ21701EVMEVAL BOARD FOR LMZ21701 |
4,406 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 17V | Buck | - | Board(s) | LMZ21701 |
|
LMZ31710EVM-001EVAL BOARD FOR LMZ31710 |
2,571 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 10A | 2.95V ~ 17V | Buck | - | Board(s) | LMZ31710 |
|
|
RTKA210130DE0020BUEVAL BOARD FOR RAA210130 |
1,356 | - |
|
Datasheet | - | Tray | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 30A | 4.75V ~ 15V | Buck | 500kHz | Board(s) | RAA210130 |
|

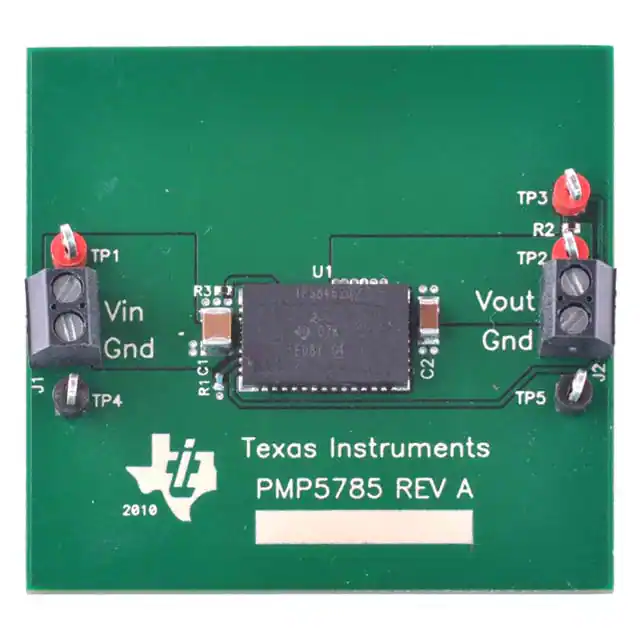

TPS84620EVM-692EVAL BOARD FOR TPS84620692 |
1,830 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4.5V ~ 14.5V | Buck | 630kHz | Board(s) | TPS84620-692 |
|
STEVAL-ILL069V1EVAL BOARD FOR HVLED001 |
3,627 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 48V | 730mA | 90 ~ 305 VAC | Flyback | - | Board(s) | HVLED001 |
|
|
EVB-EM2030L01QIEVAL BOARD FOR EM2030L01QI |
1,527 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | - | - | 0.5V ~ 1.325V | 30A | 4.5V ~ 16V | Buck | 800kHz | Board(s) | EM2030L01QI |
|
MCRY-PROTOKITPROTOTYPE KIT FOR MATRIX MATRIX |
3,917 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | - | - | 3V | 1.2mA | - | Boost | - | Board(s) | - |
|

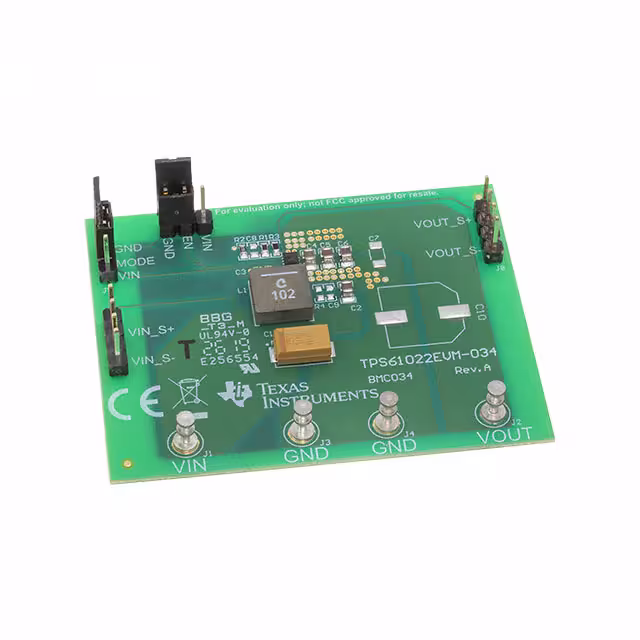

TPS61022EVM-034EVAL BOARD FOR TPS61022 |
1,019 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.1V | 3A | 0.5V ~ 5.5V | Boost | - | Board(s) | TPS61022 |
|

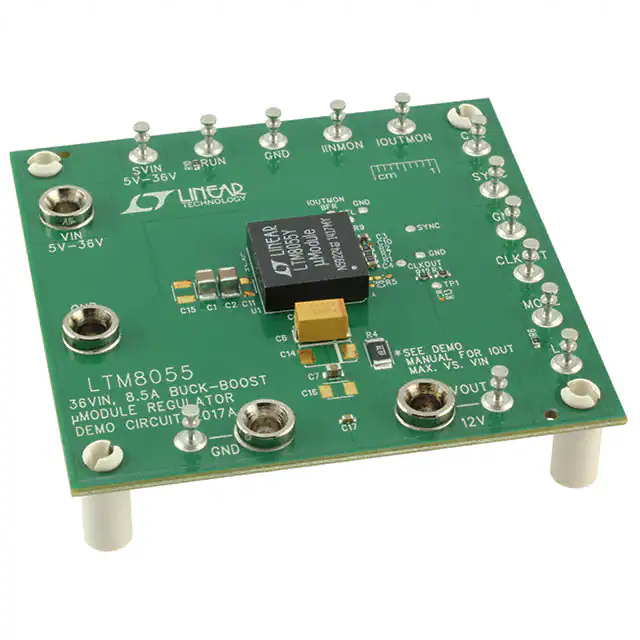

DC2017AEVAL BOARD FOR LTM8055 |
3,003 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 6A | 5V ~ 36V | Buck-Boost | 600kHz | Board(s) | LTM8055 |
|
PMLKBOOSTEVMEVAL BOARD FOR LM5122 TPS55340 |
2,237 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 24V, 24V | 2A, 1.9A | 5V ~ 12V, 9V ~ 20V | Boost | - | Board(s) | LM5122, TPS55340 |
|

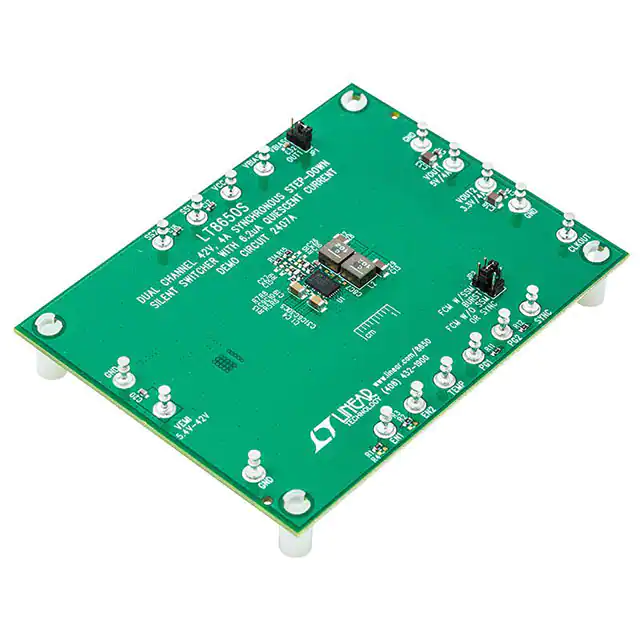

DC2407AEVAL BOARD FOR LT8650S |
2,028 | - |
|
Datasheet | Silent Switcher®2 | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 4A, 4A | 5.4V ~ 42V | Buck | 2MHz | Board(s) | LT8650S |
|

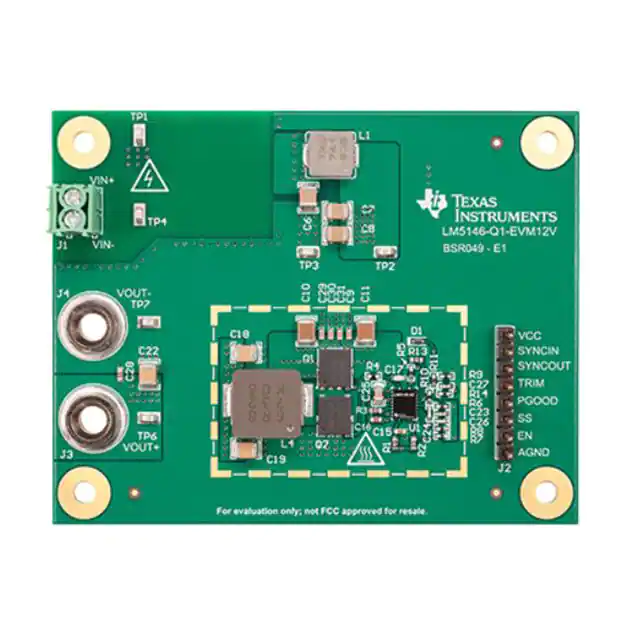

LM5146-Q1-EVM12VEVAL BOARD FOR LM5146Q1 |
3,937 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 15V ~ 85V | Buck | 400kHz | Board(s) | LM5146-Q1 |
|

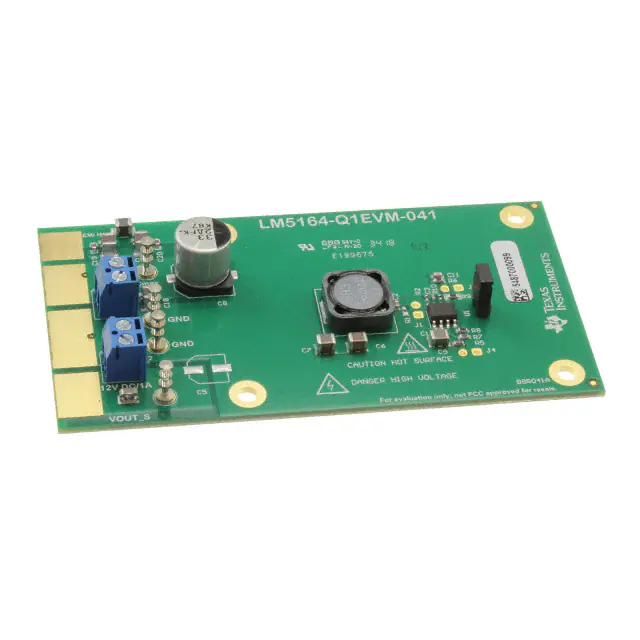

LM5164-Q1EVM-041EVAL BOARD FOR LM5164Q1 |
4,022 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 1A | 15V ~ 100V | Buck | 300kHz | Board(s) | LM5164-Q1 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
