DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5575BLDT/NOPBEVAL BOARD FOR LM5575 |
1,562 | - |
|
Datasheet | SIMPLE SWITCHER®, WEBENCH® | Box | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | 500kHz | Partially Populated Board(s) - Main IC/Module/Part Not Included | LM5575 |
|

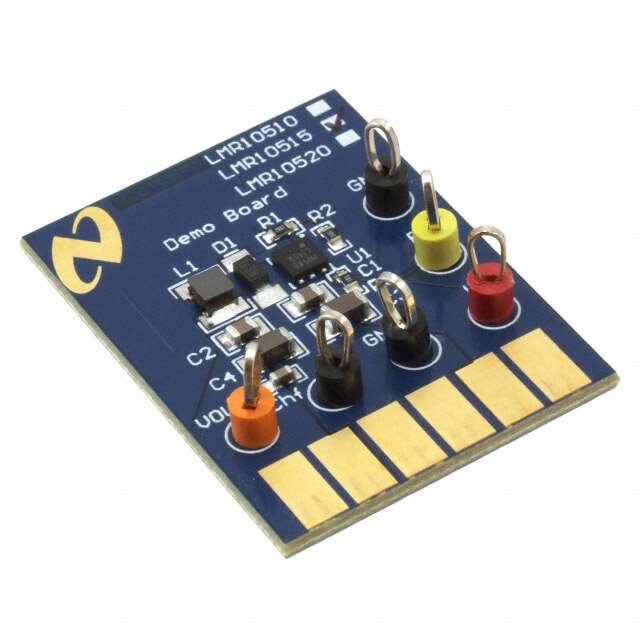

LMR10515YSDDEMO/NOPBEVAL BOARD FOR LMR10515 |
3,402 | - |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 3V ~ 5.5V | Buck | 3MHz | Board(s) | LMR10515 |
|
LMR10530YSDEVM/NOPBEVAL BOARD FOR LMR10530 |
3,322 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 5.5V | Buck | 3MHz | Board(s) | LMR10530 |
|
LMZ10501EVAL/NOPBEVAL BOARD FOR LMZ10501 |
1,404 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LMZ10501 |
|
LMR22007YMINI-EVMEVAL BOARD FOR LMR22007 |
4,055 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 750mA | 4.5V ~ 20V | Buck | 2.1MHz | Board(s) | LMR22007 |
|
LMZ10500EVAL/NOPBEVAL BOARD FOR LMZ10500 |
3,719 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 650mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LMZ10500 |
|
17800FDSMEVAL BOARD FOR FDSM |
3,065 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 7V ~ 42V | Buck | 350kHz | Partially Populated Board(s) | FDSM |
|
STEVAL-ISA006V1EVAL BOARD FOR VIPER12A |
2,158 | - |
|
Datasheet | VIPER™ | Box | Obsolete | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 5.5 W | 5V, 15V | 500mA, 200mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|
AS1382C-WL-18_EK_STEVAL BOARD FOR AS1382 |
4,595 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | AS1382 |
|

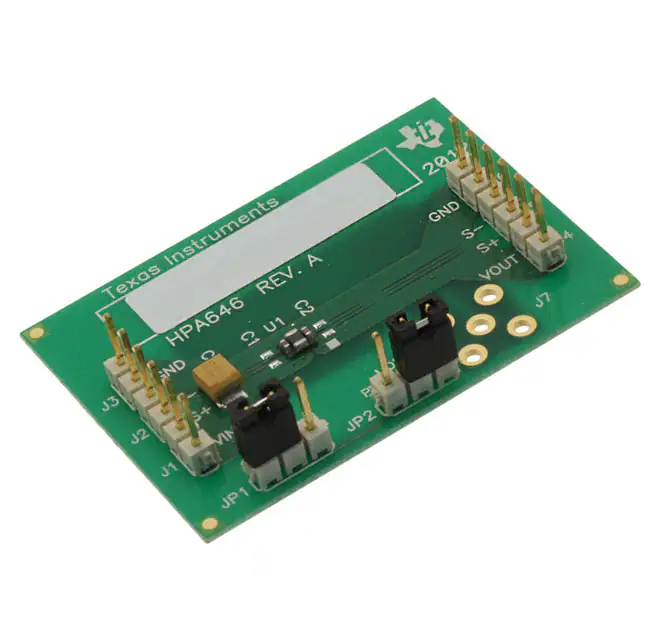

TPS82672EVM-646EVAL BOARD FOR TPS82672 |
2,130 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2.3V ~ 4.8V | Buck | 5.45MHz | Board(s) | TPS82672 |
|
BD9328EFJ_EVKEVAL BOARD FOR BD9328 |
1,276 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.2V ~ 18V | Buck | 380kHz | Board(s) | BD9328 |
|
STEVAL-ISA167V1EVAL BOARD FOR SRK2001 STL85N6F3 |
3,502 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Secondary Side | 1 Non-Isolated Output | - | - | - | 4.5V ~ 32V | Resonant | 500kHz | Board(s) | SRK2001, STL85N6F3 |
|
ISL80015ADEMO1ZEVAL BOARD FOR ISL80015A |
2,724 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL80015A |
|
|
ISL80020ADEMO1ZEVAL BOARD FOR ISL80020A |
2,117 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL80020A |
|
ISL80020DEMO1ZEVAL BOARD FOR ISL80020 |
1,413 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL80020 |
|
ISL80030ADEMO1ZEVAL BOARD FOR ISL80030A |
3,715 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL80030A |
|
|
R1240N001B033-EVEVAL BOARD FOR R1240X |
1,336 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 15V | 1.2A | 4.5V ~ 30V | Buck | 1.25MHz | Board(s) | R1240x |
|

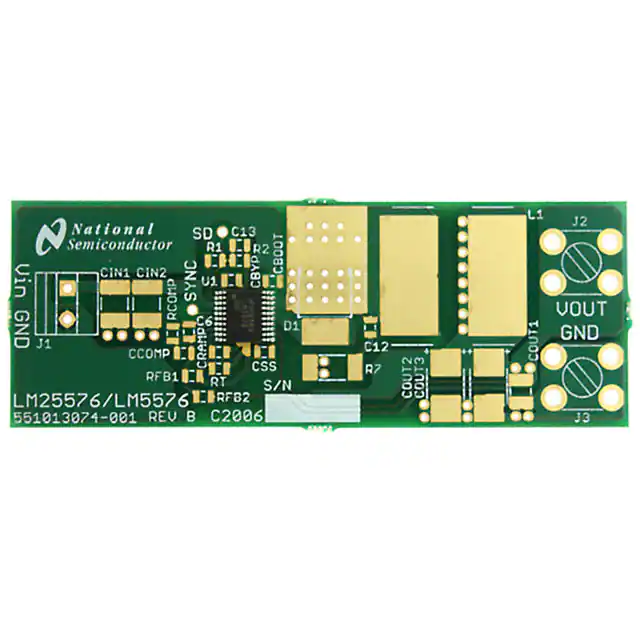

LM5576BLDT/NOPBEVAL BOARD FOR LM5576 |
3,201 | - |
|
Datasheet | SIMPLE SWITCHER®, WEBENCH® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.23V ~ 70V | 3A | 6V ~ 75V | Buck | - | Partially Populated Board(s) - Main IC/Module/Part Not Included | LM5576 |
|
|
MCP1602EVEVAL BOARD FOR MCP1602 |
1,603 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.8V, 2.5V, or 3.3V | 500mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | MCP1602 |
|
MCP1630DM-DDBK1EVAL BOARD FOR MCP1630 |
3,291 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 7.2V ~ 11.8V | Buck | - | Board(s) | MCP1630 |
