DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BM2P151X-EVK-001EVAL BOARD FOR BM2P151X |
1,669 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 12 W | 15V | 800mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P151X |
|
BD7F100HFN-EVK-003EVAL BOARD FOR BD7F100 |
4,322 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±15V | 165mA, 165mA | 24V | Flyback | 400kHz | Board(s) | BD7F100 |
|
BD7F200EFJ-EVK-002EVAL BOARD FOR BD7F200 |
1,959 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2A | 24V | Flyback | 400kHz | Board(s) | BD7F200 |
|

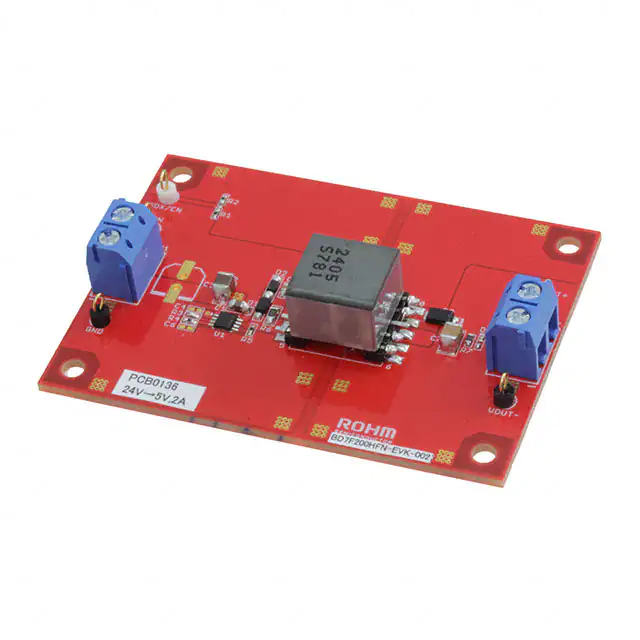

BD7F200HFN-EVK-002EVAL BOARD FOR BD7F200 |
4,549 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2A | 24V | Flyback | 400kHz | Board(s) | BD7F200 |
|

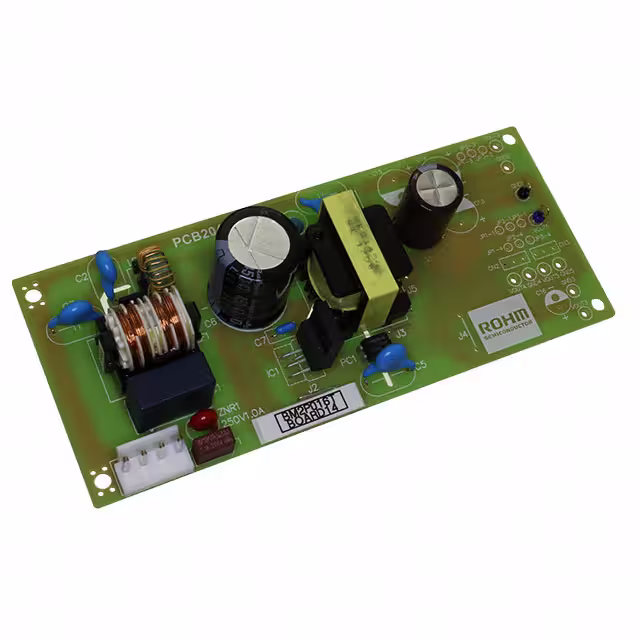

BM2P016T-EVK-001EVAL BOARD FOR BM2P016T |
3,061 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 30 W | 24V | 1.25A | 85 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P016T |
|
BD7F200EFJ-EVK-001EVAL BOARD FOR BD7F200 |
3,288 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Isolated Outputs | - | 15V, 15V, 15V, 15V | 150mA, 150mA, 150mA, 150mA | 24V | Flyback | 400kHz | Board(s) | BD7F200 |
|

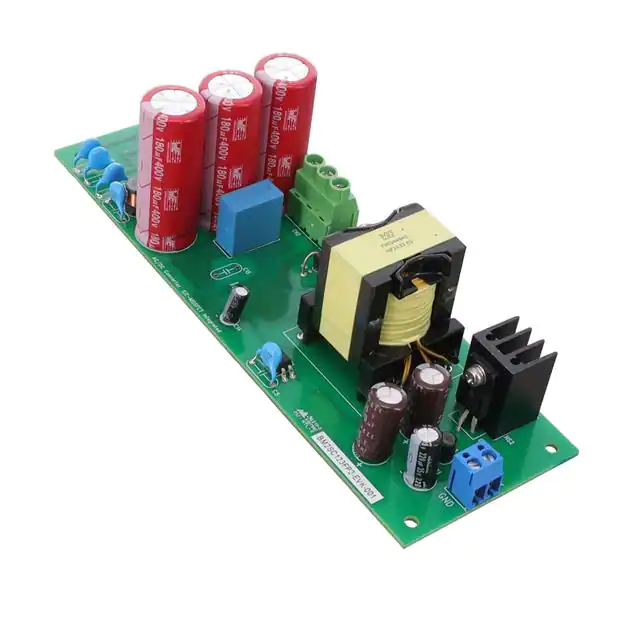

BM2SC123FP2-EVK-001EVAL BOARD FOR BM2SC123 |
3,253 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 48 W | 24V | 2A | 210 ~ 480VAC, 300V ~ 900V | Flyback | 120kHz | Board(s) | BM2SC123 |
|
BD7682FJ-LB-EVK-402EVAL BOARD FOR BD7682 |
4,424 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 24 W | 24V | 1A | 400 ~ 690 VAC, 300V ~ 1000V | Resonant | - | Board(s) | BD7682 |
|

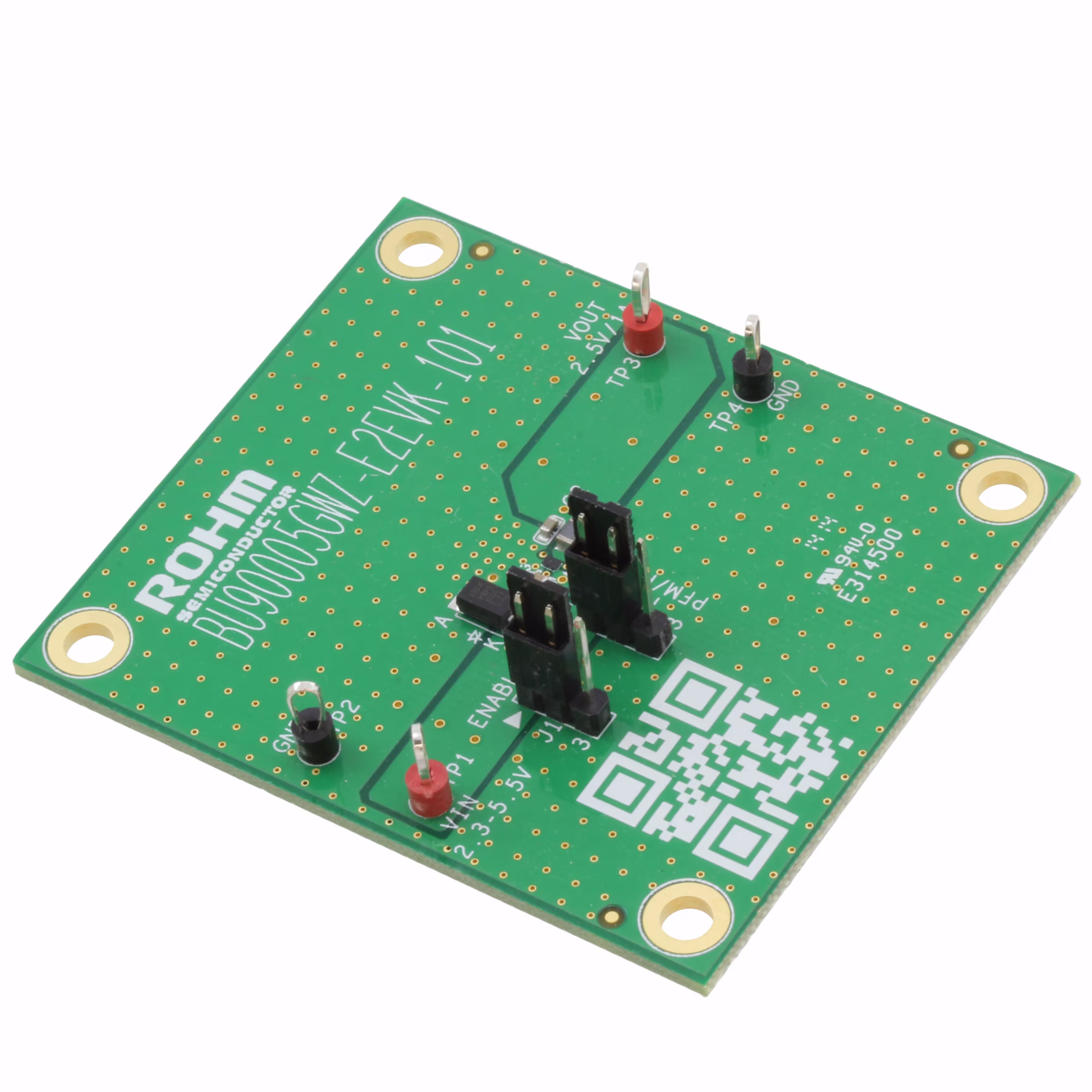

BU90005GWZ-E2-EVK-101EVAL BOARD FOR BU90005 |
4,425 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1A | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | BU90005 |
|
BM2P109TF-EVK-001EVAL BOARD FOR BM2P109T |
3,478 | - |
|
Datasheet | - | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 2 W | 10V | 200mA | 90 ~ 264 VAC | Buck | 100kHz | Board(s) | BM2P109T |
