DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

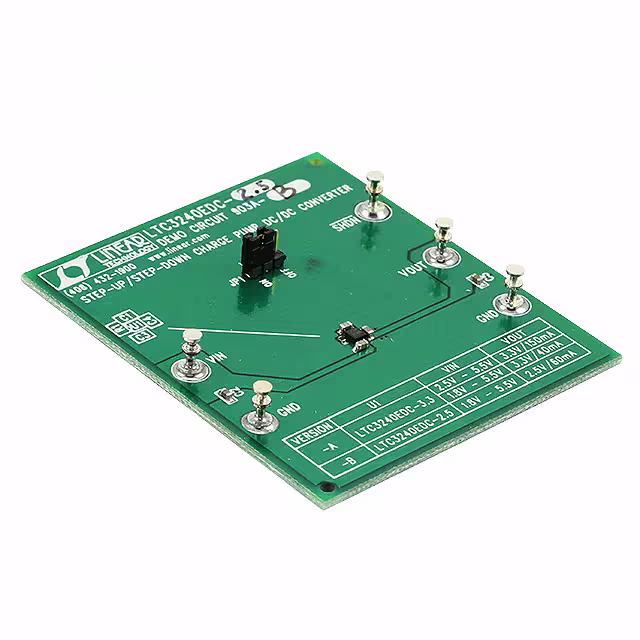

DC903A-BEVAL BOARD FOR LTC32402.5 |
4,573 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.5V | 60mA | 1.8V ~ 5.5V | Boost, Buck | 1.2MHz | Board(s) | LTC3240-2.5 |
|

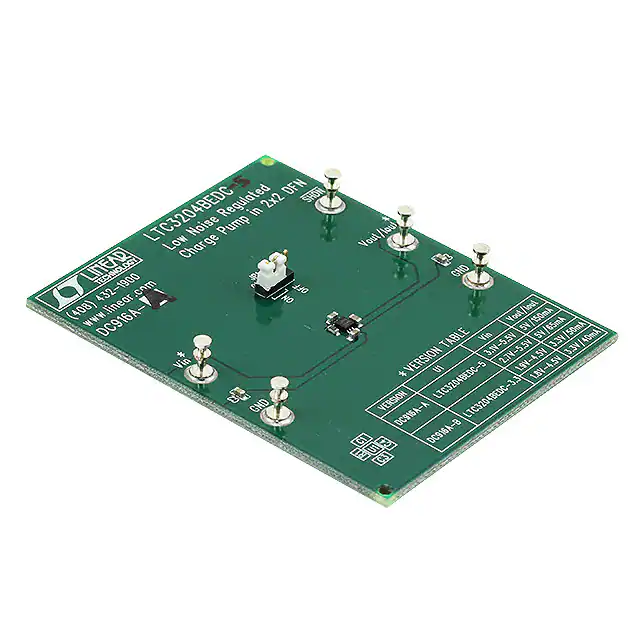

DC916A-AEVAL BOARD FOR LTC32045 |
1,582 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 150mA | 2.7V ~ 5.5V | Boost | 1.2MHz | Board(s) | LTC3204-5 |
|

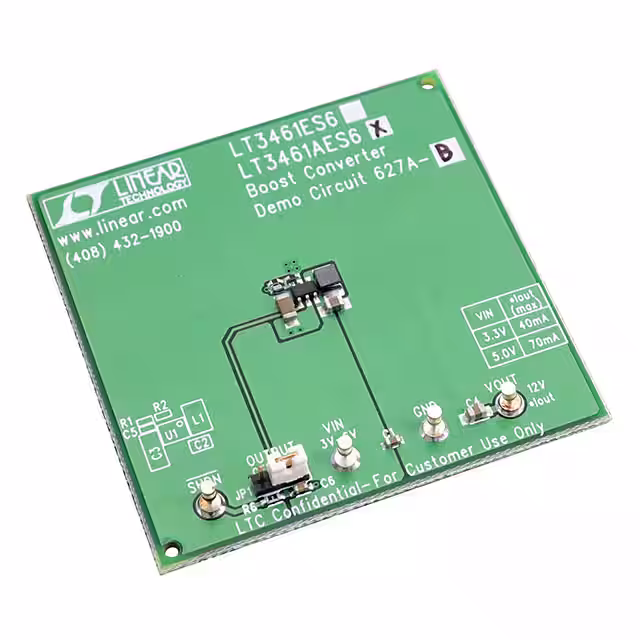

DC627A-BEVAL BOARD FOR LT3461A |
1,190 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 70mA | 3V ~ 6V | Boost | 3MHz | Board(s) | LT3461A |
|

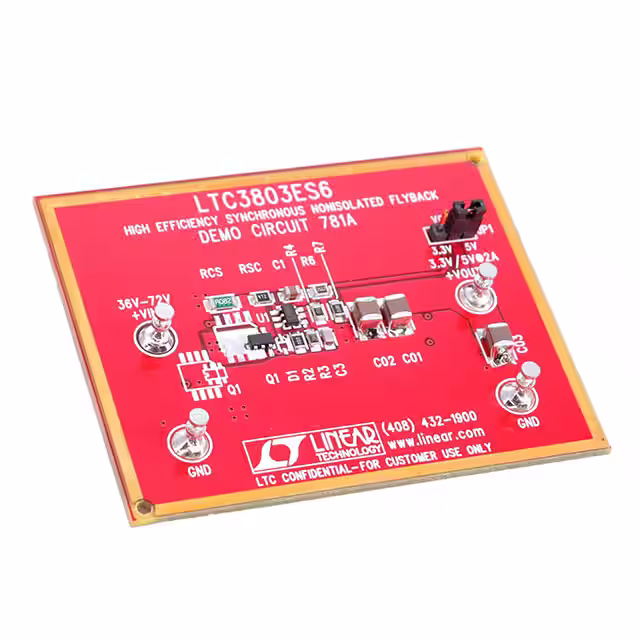

DC781AEVAL BOARD FOR LTC3803 |
4,208 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2A | 36V ~ 72V | Flyback | 200kHz | Board(s) | LTC3803 |
|

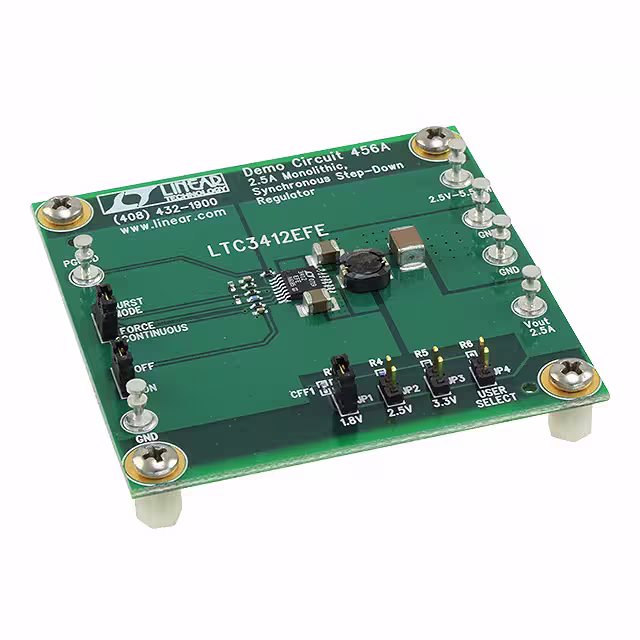

DC456AEVAL BOARD FOR LTC3412 |
4,979 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V or 3.3V | 2.5A | 2.5V ~ 5.5V | Buck | - | Board(s) | LTC3412 |
|
DC397AEVAL BOARD FOR LT1930A LT1931A |
2,341 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 3 Non-Isolated Outputs | - | 12V, 12V, -12V | 250mA, 250mA, 250mA | 5V, 12V, 10V ~ 16V | - | 2.2MHz | Board(s) | LT1930A, LT1931A |
|

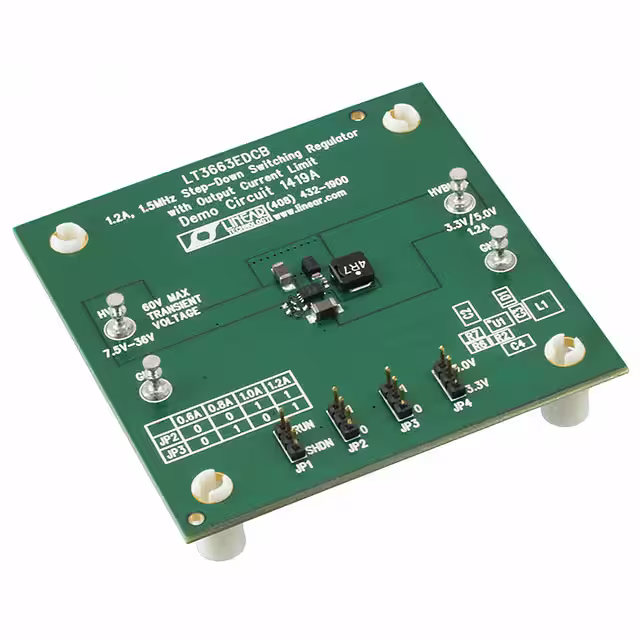

DC1419AEVAL BOARD FOR LT3663 |
3,789 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 7.5V ~ 36V | Buck | 1.5MHz | Board(s) | LT3663 |
|

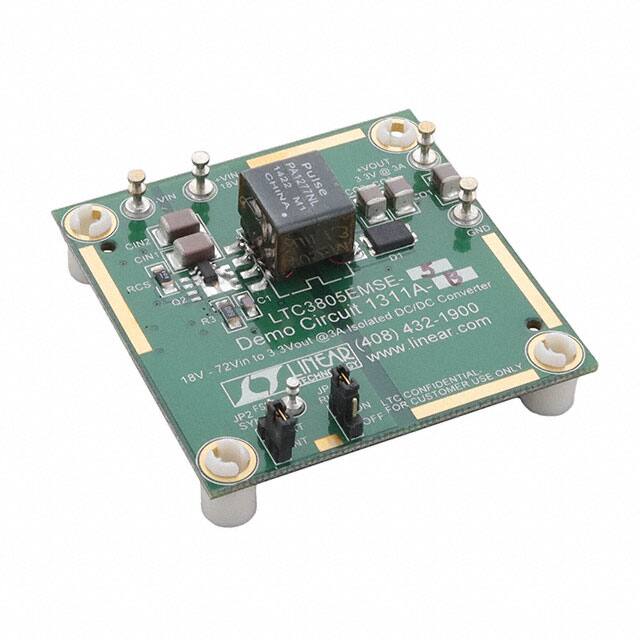

DC1311A-BEVAL BOARD FOR LTC38055 |
2,853 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 3A | 18V ~ 72V | Flyback | 300kHz | Board(s) | LTC3805-5 |
|

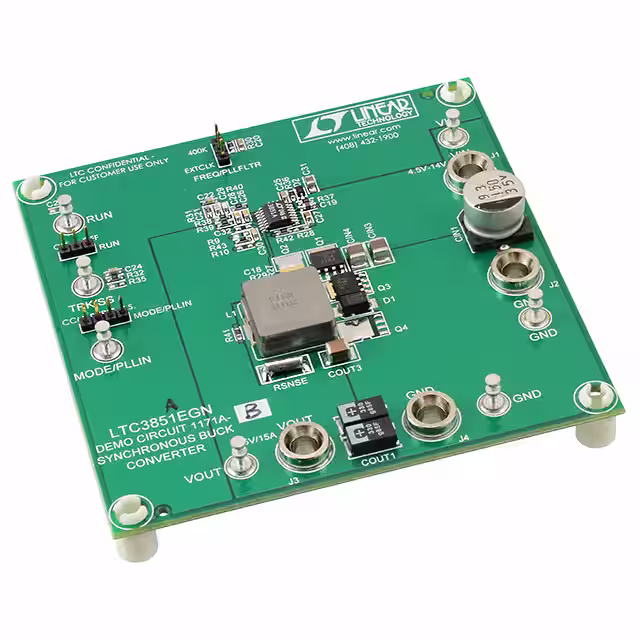

DC1171A-BEVAL BOARD FOR LTC3851 |
2,960 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3851 |
|

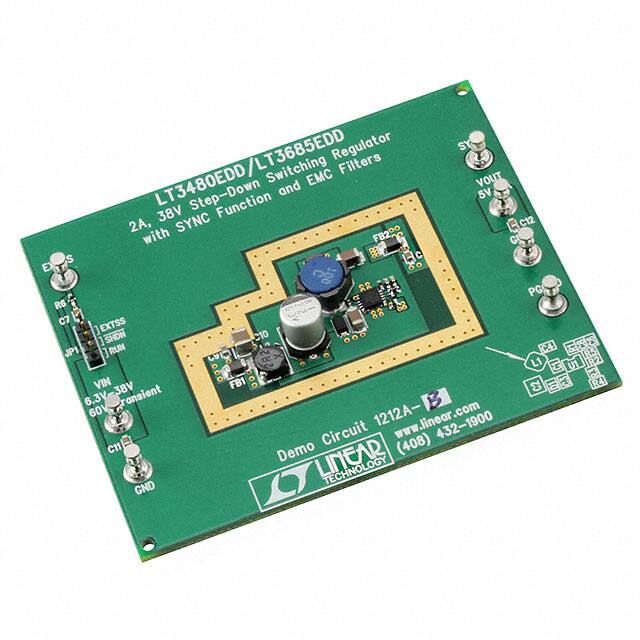

DC1212A-BEVAL BOARD FOR LT3685 |
3,594 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.3V ~ 38V | Buck | 800kHz | Board(s) | LT3685 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
