DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

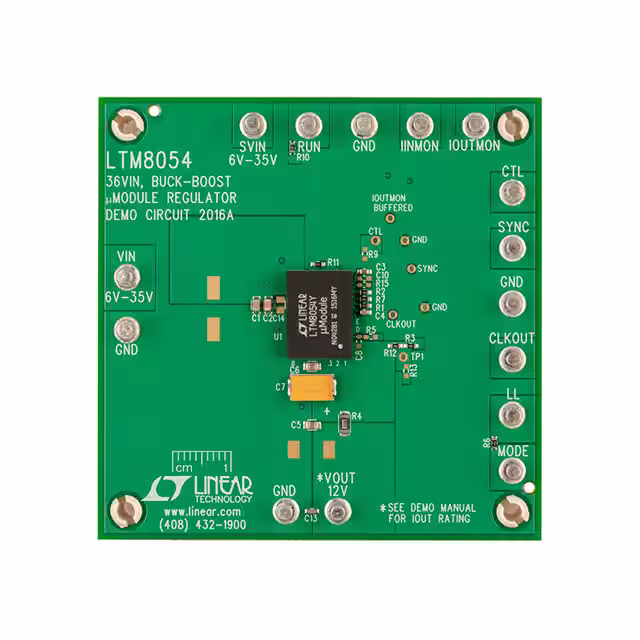

DC2016AEVAL BOARD FOR LTM8054 |
3,924 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 3A | 6V ~ 35V | Buck-Boost | 600kHz | Board(s) | LTM8054 |
|
DC1559AEVAL BOARD FOR LTM8046 |
2,515 | - |
|
Datasheet | µModule® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 550mA | 3.2V ~ 26V | - | - | Board(s) | LTM8046 |
|
DC2171A-BEVAL BOARD FOR LTM4625 |
3,802 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4625 |
|
DC1987AEVAL BOARD FOR LTM8057 |
2,465 | - |
|
Datasheet | µModule® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 350mA | 4.5V ~ 29V | Flyback | - | Board(s) | LTM8057 |
|
DC2479A-AEVAL BOARD FOR LTM4650 |
3,922 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650 |
|
DC2479A-BEVAL BOARD FOR LTM46501 |
3,215 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
|
DC2453AEVAL BOARD FOR LTM4643 |
3,308 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 2.5V, 3.3V | 3A, 3A, 3A, 3A | 4V ~ 20V | Buck | 1.2MHz | Board(s) | LTM4643 |
|
DC2389AEVAL BOARD FOR LTM8073 |
1,896 | - |
|
Datasheet | Silent Switcher®, µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 60V | Buck | 1.2MHz | Board(s) | LTM8073 |
|
DC2603A-AEVAL BOARD FOR LTM4650AEY1 |
2,558 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 5.5V | 25A, 25A | 4.5V ~ 16V | Buck | 250kHz ~ 780kHz | Board(s) | LTM4650AEY-1 |
|
DC2603A-BEVAL BOARD FOR LTM4650AEY1 |
2,102 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 5.5V | 25A, 25A | 4.5V ~ 16V | Buck | 250kHz ~ 780kHz | Board(s) | LTM4650AEY-1 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
