DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

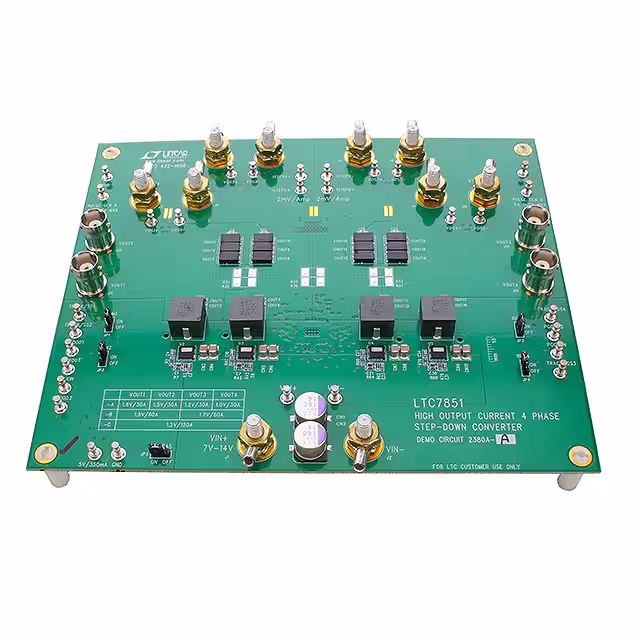

DC2380A-AEVAL BOARD FOR LTC7851 |
2,216 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 1.8V | 30A, 30A, 30A, 30A | 7V ~ 14V | Buck | 400kHz | Board(s) | LTC7851 |
|
DC3126AEVAL BOARD FOR LT8686S |
2,972 | - |
|
Datasheet | Silent Switcher®2 | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 5V | 2A, 2A, 2A, 2A | 12V | Buck | 2MHz | Partially Populated Board(s) | LT8686S |
|

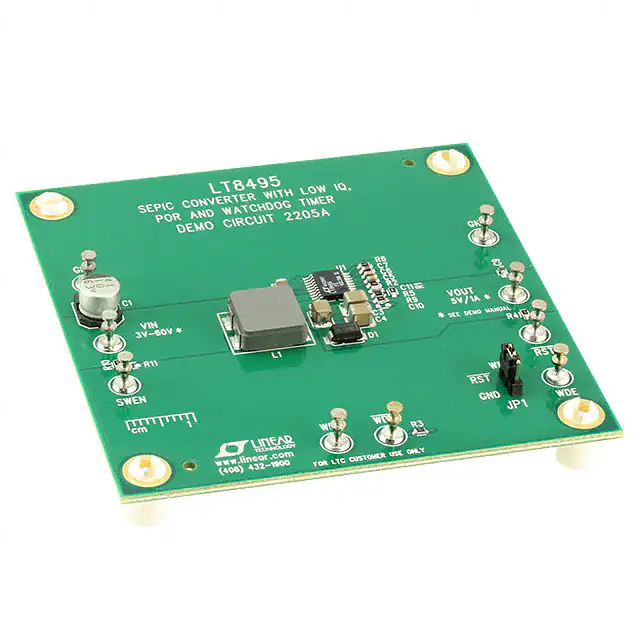

DC2205AEVAL BOARD FOR LT8495 |
3,209 | - |
|
Datasheet | - | Tray | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1A | 3V ~ 60V | Boost | 450kHz | Board(s) | LT8495 |
|
|
DC2993A-AEVAL BOARD FOR LTC7825 |
1,158 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | - | 12A | 4.5V ~ 24V | - | 380kHz | Board(s) | LTC7825 |
|

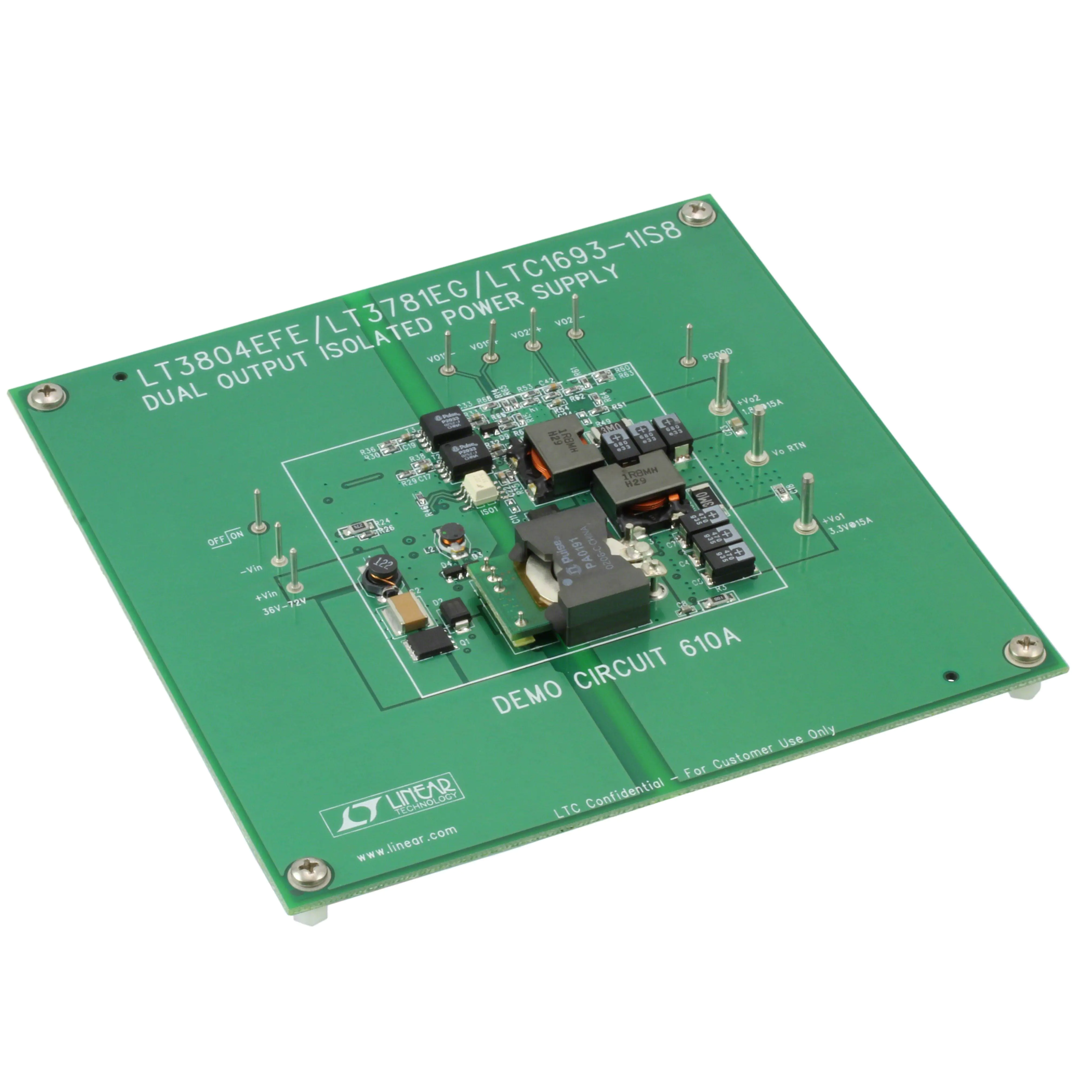

DC610AEVAL BOARD FOR LT3781 LT3804 |
2,131 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 1.8V, 3.3V | 15A, 15A | 36V ~ 72V | - | 230kHz | Board(s) | LT3781, LT3804, LTC1693-1 |
|
|
DC2263A-AEVAL BOARD FOR LTC3887EUJ |
4,837 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.8V ~ 1.8V | 25A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3887EUJ |
|

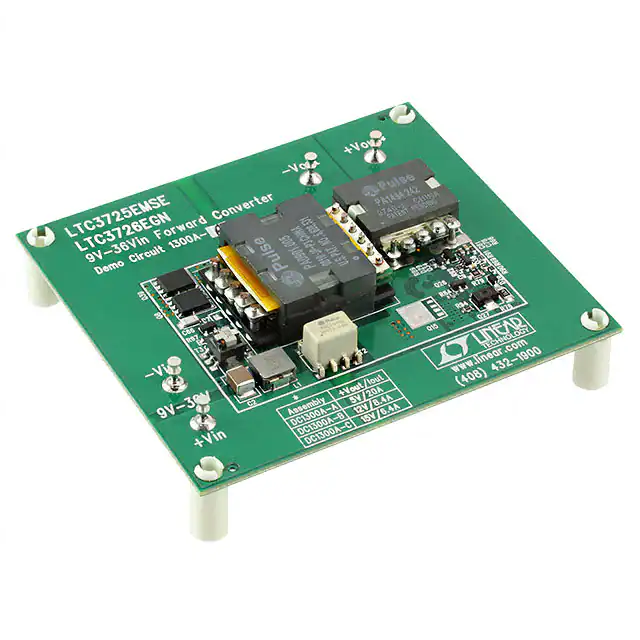

DC1300A-AEVAL BOARD FOR LTC3725 LTC3726 |
4,755 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 20A | 9V ~ 36V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|

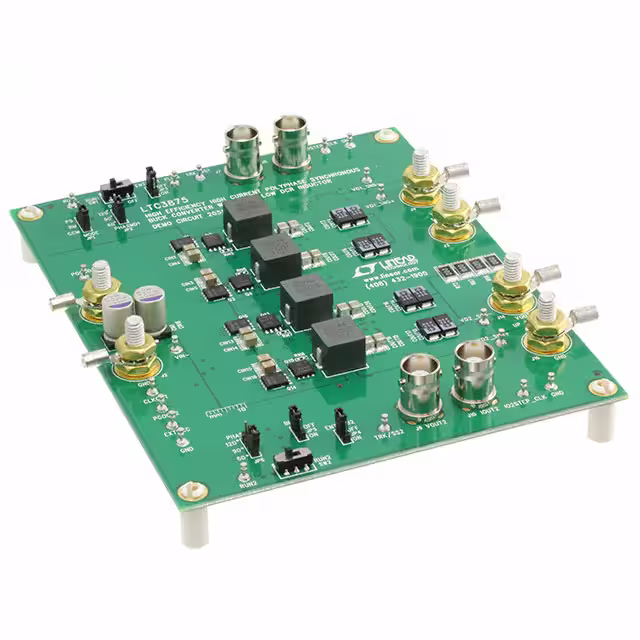

DC2055AEVAL BOARD FOR LTC3875 |
2,686 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 120A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3875 |
|
|
EVAL-LTC3313EV-MULTI-A1ZEVAL BOARD FOR LTC3313 |
1,747 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 60A, 45A, 30A | 3V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3313 |
|

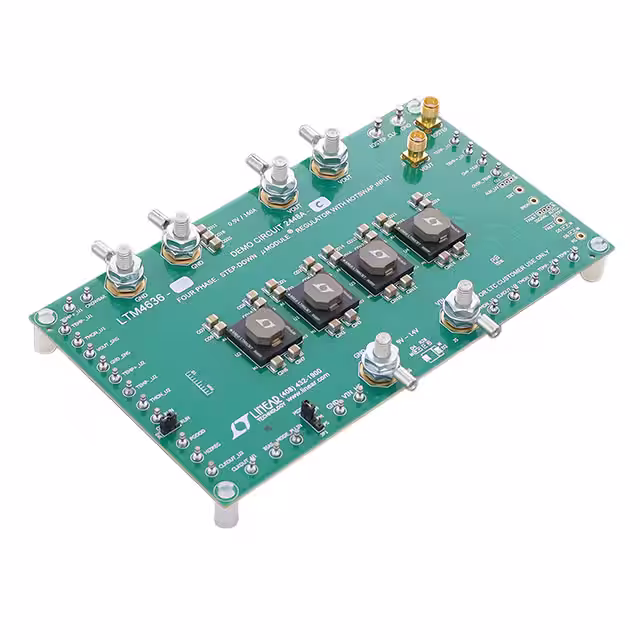

DC2448A-CEVAL BOARD FOR LTM4636 |
2,166 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.3V | - | 4.7V ~ 15V | Buck | - | Board(s) | LTM4636 |
