DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM1770EVALEVAL BOARD FOR LM1770 |
3,883 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 2A | 2.8V ~ 5.5V | Buck | 378kHz | Board(s) | LM1770 |
|

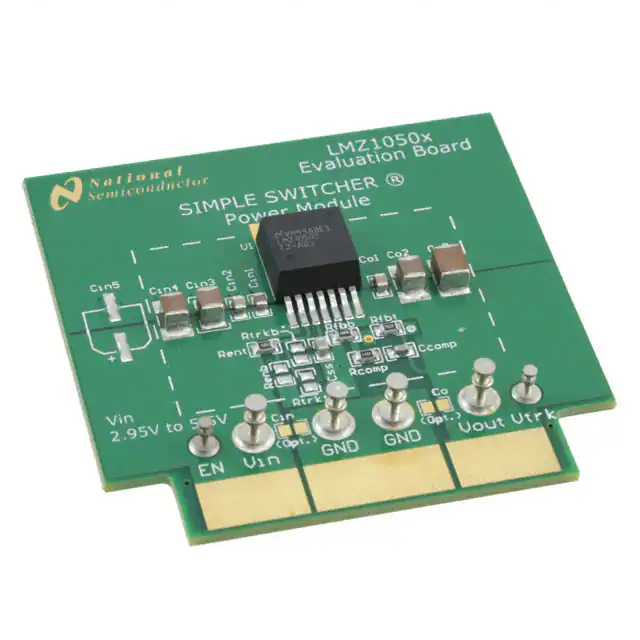

LMZ10503EVAL/NOPBEVAL BOARD FOR LMZ10503 |
1,974 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 3A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10503 |
|
LM2731XEVAL/NOPBEVAL BOARD FOR LM2731 |
3,372 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 1.8A | 2.7V ~ 14V | Boost | 1.6MHz | Board(s) | LM2731 |
|
AS1345A-WL-AD_EK_STEVAL BOARD FOR AS1345A |
3,480 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V | - | 2.9V ~ 5V | Boost | - | Board(s) | AS1345A |
|
AS1345D-TD-AD_EK_STEVAL BOARD FOR AS1345D |
3,621 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V | - | 2.9V ~ 5V | Boost | - | Board(s) | AS1345D |
|
1789205X4EVAL BOARD FOR FISM |
2,669 | - |
|
Datasheet | MagI3C | Box | Obsolete | DC/DC, Step Up or Down | 1 Isolated Output | - | 5V | - | - | Boost, Buck | - | Partially Populated Board(s) | FISM |
|
ISL97519AIUZEVALZEVAL BOARD FOR ISL97519A |
1,479 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | - | 2.3V ~ 5.5V | Boost | 600kHz or 1.2MHz | Board(s) | ISL97519A |
|
ISL97519IUZEVALZEVAL BOARD FOR ISL97519 |
2,391 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | - | 2.3V ~ 5.5V | Boost | 620kHz or 1.2MHz | Board(s) | ISL97519 |
|
178021801EVAL BOARD FOR WPMDL1201801 |
2,520 | - |
|
Datasheet | MagI3C | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 17V | 2A | 4V ~ 18V | Buck | 850kHz | Board(s) | WPMDL1201801 |
|

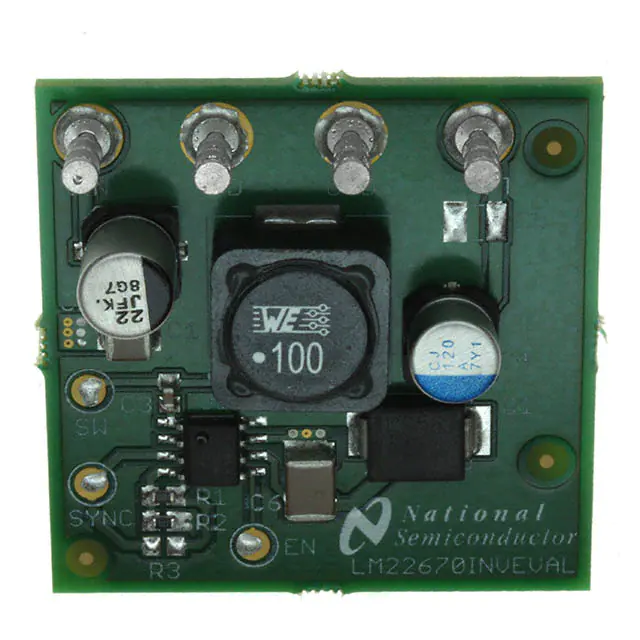

LM22670INVEVALEVAL BOARD FOR LM22670 |
4,425 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 5V ~ 35V | Buck | 500kHz | Board(s) | LM22670 |
.jpg "MIKROE-2957")
|
MIKROE-2957EVAL BOARD FOR MAX17572 |
1,565 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 20V | 1A | 5V ~ 30V | Buck | - | Board(s) | MAX17572 |
|
|
ADM01014EVAL BOARD FOR MCP1663 |
1,552 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 300mA | 1.85 ~ 5.5V | Boost, SEPIC | 500kHz | Board(s) | MCP1663 |
|
DAK-34EVAL BOARD FOR TOP245 |
2,064 | - |
|
Datasheet | TOPSwitch®-GX | - | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 30 W | 12V | 2.5A | 85 ~ 265 VAC | Flyback | 132kHz | Board(s) | TOP245 |
|
SP6669EBEVAL BOARD FOR SP6669 |
4,665 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | SP6669 |
|
|
XRP7714EVB-DEMO-3EVAL BOARD FOR XRP7714 |
4,134 | - |
|
Datasheet | - | Bulk | Last Time Buy | DC/DC, Step Down | 4 Non-Isolated Outputs | 35 W | 1V, 1.8V, 2.5V, 3.3V | - | 5.5V ~ 25V | Buck | - | Board(s) | XRP7714 |
|
|
XR77128EVB-DEMO-1EVAL BOARD FOR XR77128 |
1,675 | - |
|
Datasheet | - | Box | Not For New Designs | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1V, 1.5V, 2.5V, 3.3V | 10A, 5A, 3A, 3A | 5.5V ~ 25V | Buck | - | Board(s) | XR77128 |
|
XR76203EVBEVAL BOARD FOR XR76203 |
2,972 | - |
|
Datasheet | PowerBlox™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5V ~ 40V | Buck | - | Board(s) | XR76203 |
|
XR76201EVBEVAL BOARD FOR XR76201 |
4,836 | - |
|
Datasheet | PowerBlox™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.5A | 3V ~ 40V | Buck | - | Board(s) | XR76201 |
|
|
XR76108EVBEVAL BOARD FOR XR76108 |
2,264 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 8A | 4.5V ~ 22V | Buck | 800kHz | Board(s) | XR76108 |
|
|
XR76112EVBEVAL BOARD FOR XR76112 |
3,811 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 12A | 4.5V ~ 22V | Buck | 800kHz | Board(s) | XR76112 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
