DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX17524EVKIT#EVAL BOARD FOR MAX17524 |
3,356 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 6.5V ~ 60V | Buck | 450kHz | Board(s) | MAX17524 |
|
|
MAX17633BEVKIT#EVAL BOARD FOR MAX17633 |
4,838 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 6.5V ~ 36V | Buck | 500kHz | Board(s) | MAX17633 |
|
|
MAX17682EVKITD#EVAL BOARD FOR MAX17682 |
1,124 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs, 1 Non-Isolated Output | - | ±15V, 5V | 1A, 150mA, 150mA | 17V ~ 36V | Buck | 200kHz | Board(s) | MAX17682 |
|
|
MAX17673EVKIT#EVAL BOARD FOR MAX17673 |
2,106 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | 1.5A, 1A, 1A | 4.5V ~ 60V | Buck | - | Board(s) | MAX17673 |
|

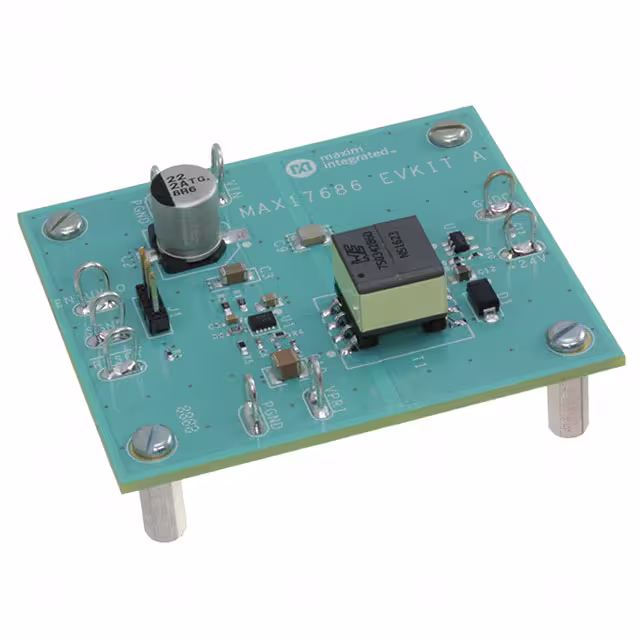

MAX17686EVKITA#EVAL BOARD FOR MAX17686 |
2,158 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | 2.4 W | 24V | 100mA | 17V ~ 60V | Buck | 200kHz | Board(s) | MAX17686 |
|
|
MAX17682EVKITC#EVAL BOARD FOR MAX17682 |
3,474 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 8 Isolated Outputs | - | 15V, 15V, 15V, 15V, -8V, -8V, -8V, -8V | 225mA, 225mA, 75mA, 75mA, 75mA, 75mA, 75mA, 75mA | 15V ~ 60V | Buck | 250kHz | Board(s) | MAX17682 |
|

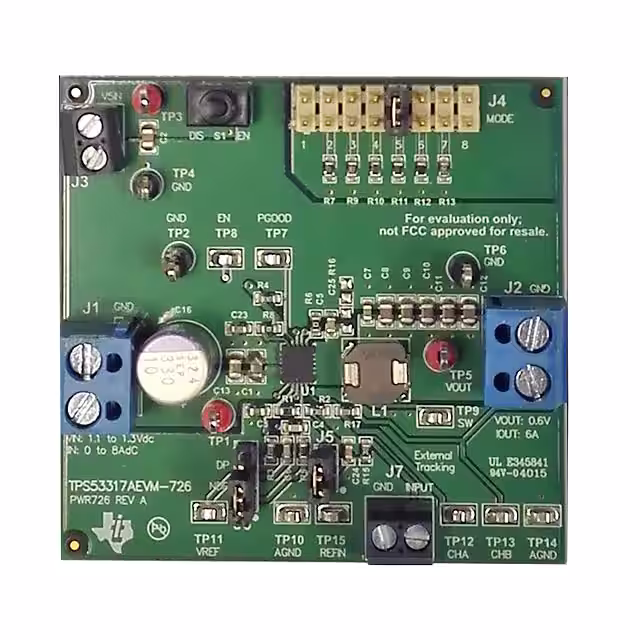

TPS53317AEVM-726EVAL BOARD FOR TPS53317 |
3,791 | - |
|
Datasheet | D-CAP+™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V | 6A | 1.1V ~ 1.3V | Buck | - | Board(s) | TPS53317 |
|
|
ISL6752DBEVAL1ZEVAL BOARD FOR ISL6752 |
1,894 | - |
|
Datasheet | - | Box | Active | DC/DC Isolated Power Supply | 1 Isolated Output | - | 12V | - | - | Resonant | - | Board(s) | ISL6752 |
|
STEVAL-ISA083V1EVAL BOARD FOR ST1S40IPUR |
4,965 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4V ~ 18V | Buck | 800kHz | Board(s) | ST1S40IPUR |
|
STEVAL-ISA133V1EVAL BOARD FOR ALTAIR04900 |
4,450 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 7.5 W | 3.3V, 13V | 550mA, 100mA | 90 ~ 264 VAC | Flyback | - | Board(s) | ALTAIR04-900 |
|
STEVAL-ISA090V1EVAL BOARD FOR L4973 |
2,051 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5.1V | 3.5A | 8V ~ 55V | Buck | 150kHz | Board(s) | L4973 |
|
STEVAL-ISA095V1EVAL BOARD FOR ST1S14 |
3,572 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.22V | 3A | 5.5V ~ 48V | Buck | 850kHz | Board(s) | ST1S14 |
|
AS1310-TD-18_EK_STEVAL BOARD FOR AS1310 |
2,706 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V | 60mA | 0.7V ~ 3.6V | Boost | - | Board(s) | AS1310 |
|
STEVAL-ISA193V2EVAL BOARD FOR STCH02 |
1,817 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 264 VAC | Flyback | - | Board(s) | STCH02 |
|
|
MAX17233EVKIT#EVAL BOARD FOR MAX17233 |
3,966 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 3.5V ~ 36V | Buck | 2.2MHz | Board(s) | MAX17233 |
|
LM3102EVALEVAL BOARD FOR LM3102 |
1,380 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 8V ~ 42V | Buck | 500kHz | Board(s) | LM3102 |
|
XRP7740EVBEVAL BOARD FOR XRP7740 |
2,004 | - |
|
Datasheet | - | Bulk | Last Time Buy | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s) | XRP7740 |
|
XR77103EVB-A0R5EVAL BOARD FOR XR77103A0R5 |
4,880 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.8V ~ 6V | 2A, 2A, 2A | 4.5V ~ 14V | Buck | 500kHz | Board(s) | XR77103-A0R5 |
|
XR77103EVB-A1R0EVAL BOARD FOR XR77103A1R0 |
1,388 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.8V ~ 6V | 2A, 2A, 2A | 4.5V ~ 14V | Buck | 1MHz | Board(s) | XR77103-A1R0 |
|
APEK8672EEG-01-T-DKEVAL BOARD FOR A8672 |
3,299 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 8A, 30mA | 3V ~ 16V | Buck | - | Board(s) | A8672 |
