DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

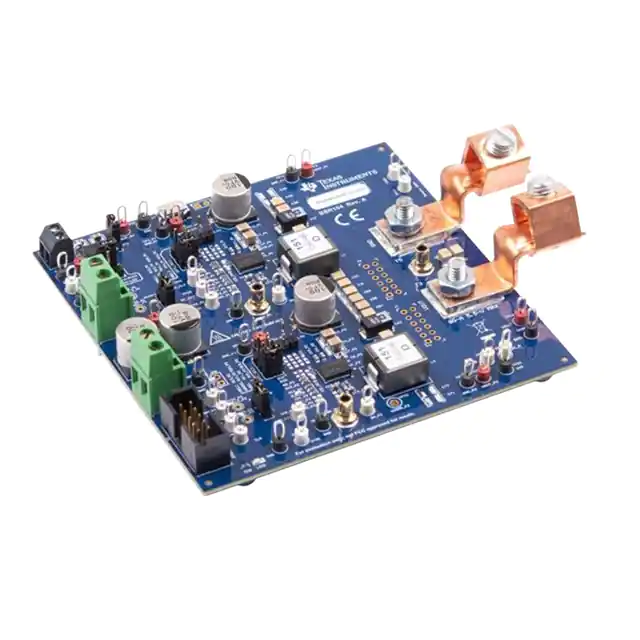

TPS546D24AEVM-2PHEVAL BOARD FOR TPS546D24A |
1,564 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V | 80A | 5V ~ 16V | Buck | 550kHz | Board(s) | TPS546D24A |
|
TPS55289Q1EVM-011EVAL BOARD FOR TPS55289Q1 |
2,635 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 22V | 3A | 3V ~ 36V | Buck-Boost | 400kHz | Board(s) | TPS55289-Q1 |
|

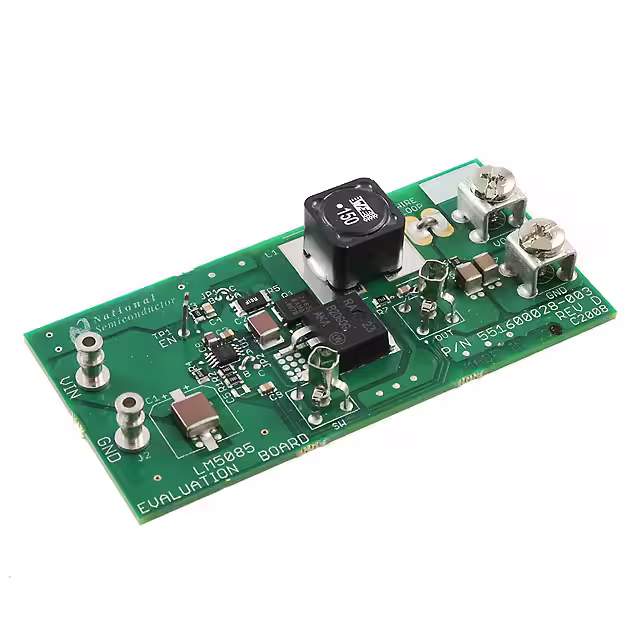

LM5085EVAL/NOPBEVAL BOARD FOR LM5085 |
4,527 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4.5A | 5.5V ~ 55V | Buck | 300kHz | Board(s) | LM5085 |
|
|
LM70880QEVMEVAL BOARD FOR LM70880Q1 |
4,517 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 8V ~ 72V | Buck | 400kHz | Board(s) | LM70880-Q1 |
|

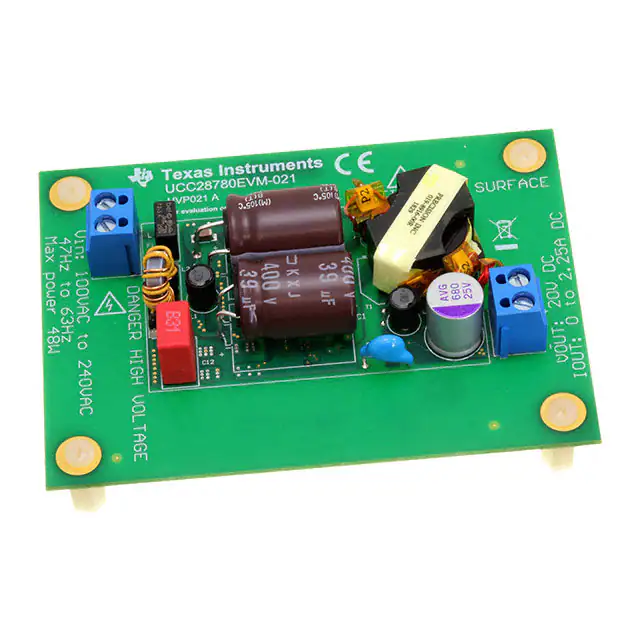

UCC28780EVM-021EVAL BOARD FOR UCC24612 UCC28780 |
4,518 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | - | 20V | 2.25A | 90 ~ 264 VAC | Flyback | - | Board(s) | UCC24612, UCC28780 |
|

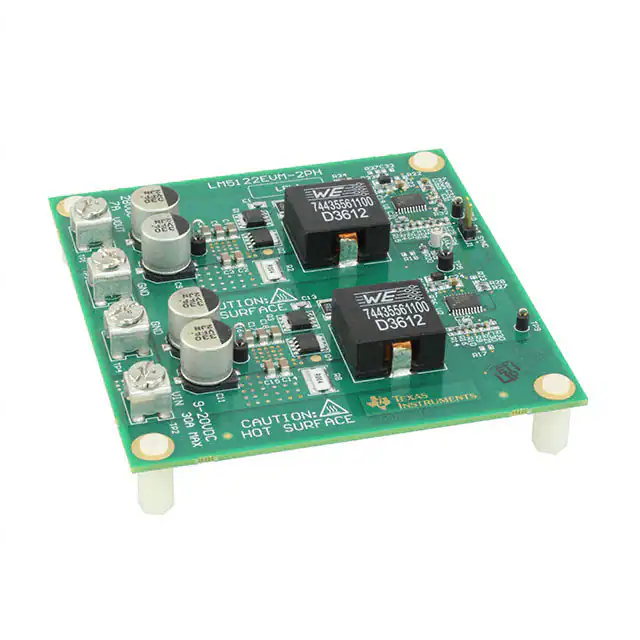

LM5122EVM-2PHEVAL BOARD FOR LM5122 |
1,478 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 28V | 7A | 9V ~ 20V | Boost | 250kHz | Board(s) | LM5122 |
|
LM5046EVAL/NOPBEVAL BOARD FOR LM5046 |
1,123 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | - | 36V ~ 75V | Full-Bridge | 420kHz | Board(s) | LM5046 |
|

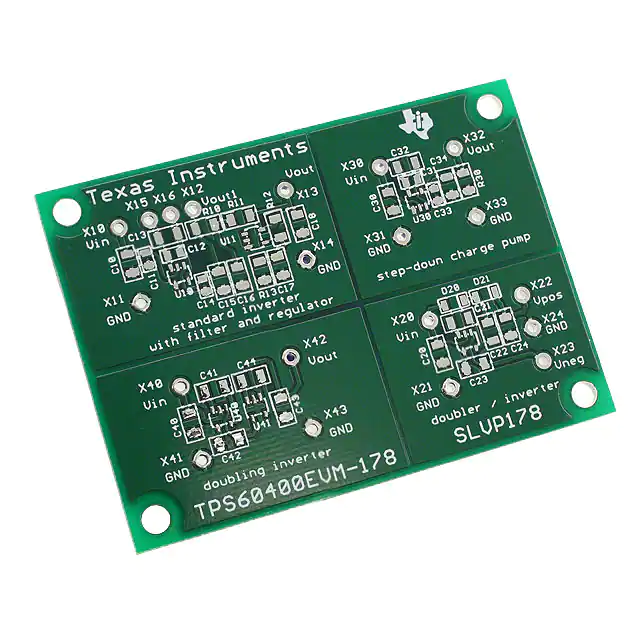

TPS60400EVM-178EVAL BOARD FOR TPS60400 TPS60401 |
3,040 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | - | - | - | - | - | Inverting | - | Unpopulated (Bare) Board(s) | TPS60400, TPS60401, TPS60402, TPS60403 |
|

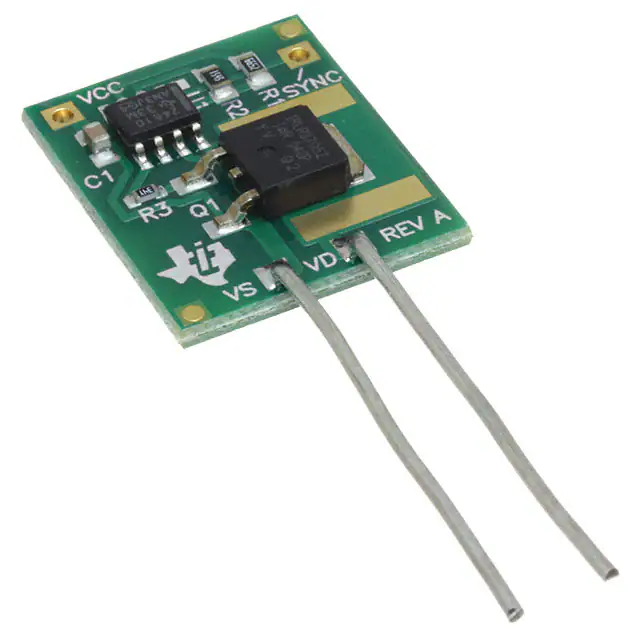

UCC24610EVM-693EVAL BOARD FOR UCC24610 |
3,679 | - |
|
Datasheet | GREEN Rectifier™ | Box | Active | AC/DC, Secondary Side | 1 Isolated Output | 10 W | 5V | - | - | Flyback | 1MHz | Board(s) | UCC24610 |
|

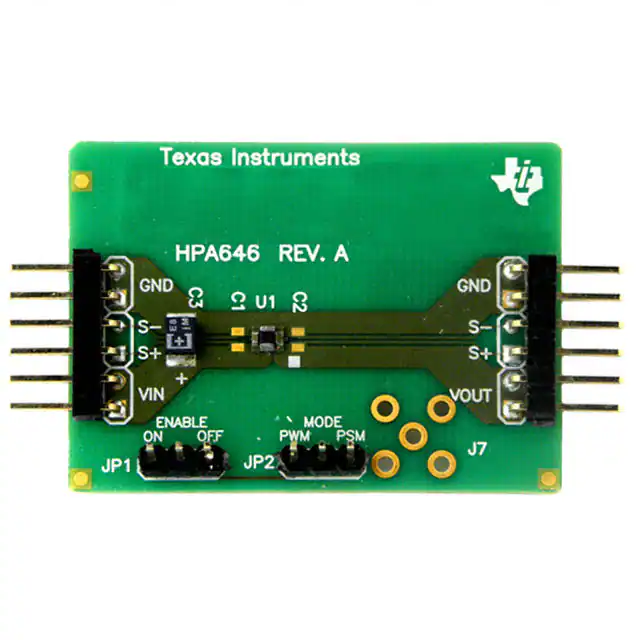

TPS82671EVM-646EVAL BOARD FOR TPS82671646 |
2,489 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.3V ~ 4.8V | Buck | 6MHz | Board(s) | TPS82671-646 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
